Segment LCD products are widely used in medical instruments such as blood glucose meters, blood pressure meters, weight and fat meters, electronic thermometers, spectrum therapy devices, infrared physiotherapy devices, etc. Segment LCD has the characteristics of simple driving circuit, stable performance, long service life, and high cost performance. Text:EASTERN DISPLAY provides thousands of custom segment displays for customers in North America, Europe, East Asia, etc. The annual supply quantity exceeds 10 million units. Based on many years of product development and production experience in serving customers of industrial instruments, industrial control equipment and communication e...

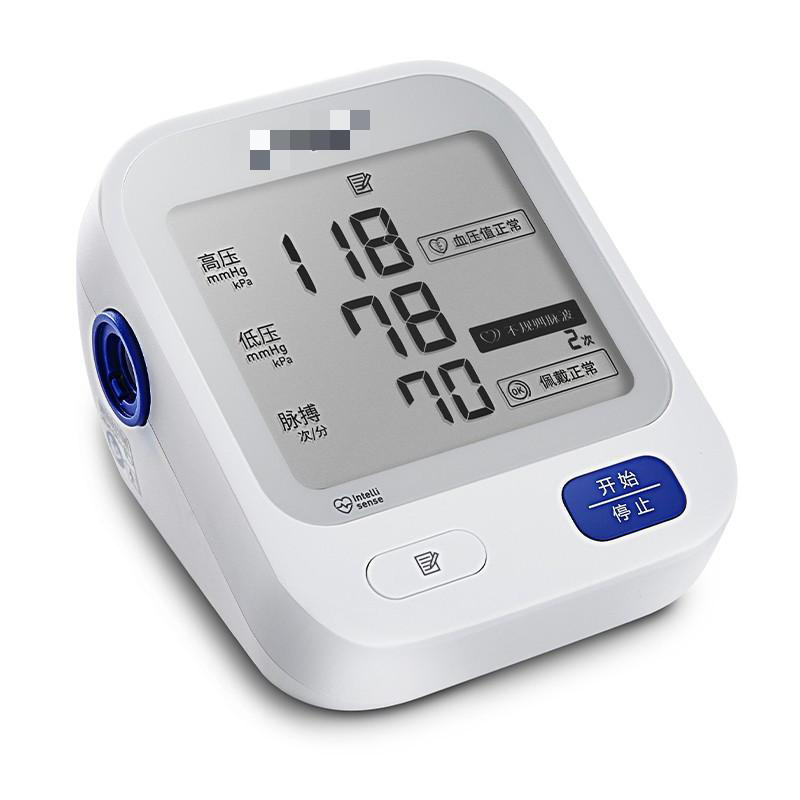

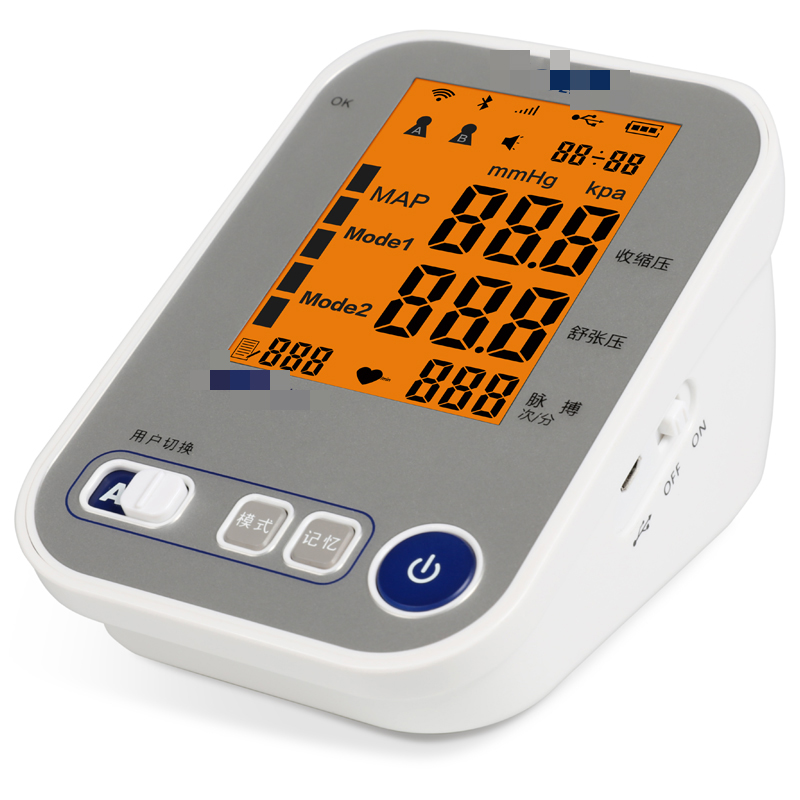

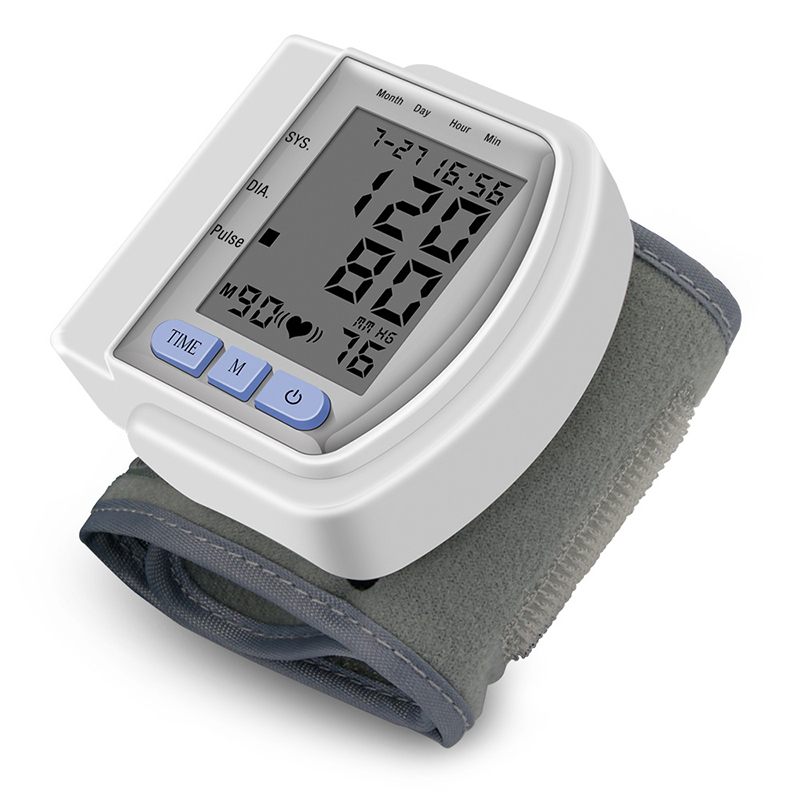

Segment LCD products are widely used in medical instruments such as blood glucose meters, blood pressure meters, weight and fat meters, electronic thermometers, spectrum therapy devices, infrared physiotherapy devices, etc. Segment LCD has the characteristics of simple driving circuit, stable performance, long service life, and high cost performance.
Text:EASTERN DISPLAY provides thousands of custom segment displays for customers in North America, Europe, East Asia, etc. The annual supply quantity exceeds 10 million units. Based on many years of product development and production experience in serving customers of industrial instruments, industrial control equipment and communication equipment, it has rich technical accumulation in product design, core parameters and customer concerns. It can continuously and stably provide customers with high-quality and cost-effective LCD display panels.
| Manufacturer | EASTERN DISPLAY |
| Display type | TN ?LCD |
| Viewing angle | 6/12 0’?CLOCK ?(custom made) |
| Operating voltage | 3.0V ---5.0V (custom made) |
| Backlight type | (custom made) |
| Backlight color | (custom made) |
| Operating temperature | -40℃-70℃(custom made) |
| Storage temperature | -40℃-80℃(custom made) |
| Display life | 100,000-200,000 hours (custom made) |
| ROHS standard | YES |
| REACH standard | YES |
| Applicable fields and scenarios | Blood glucose meter, blood pressure meter, electronic thermometer, etc. |
| Product features | small LCD?display |
| keywords：LCD segment display/custom LCD display/LCD screen/small LCD display/LCD display price/custom segment display/LCD glass/LCD display/LCD display panel/Low power LCD | |
