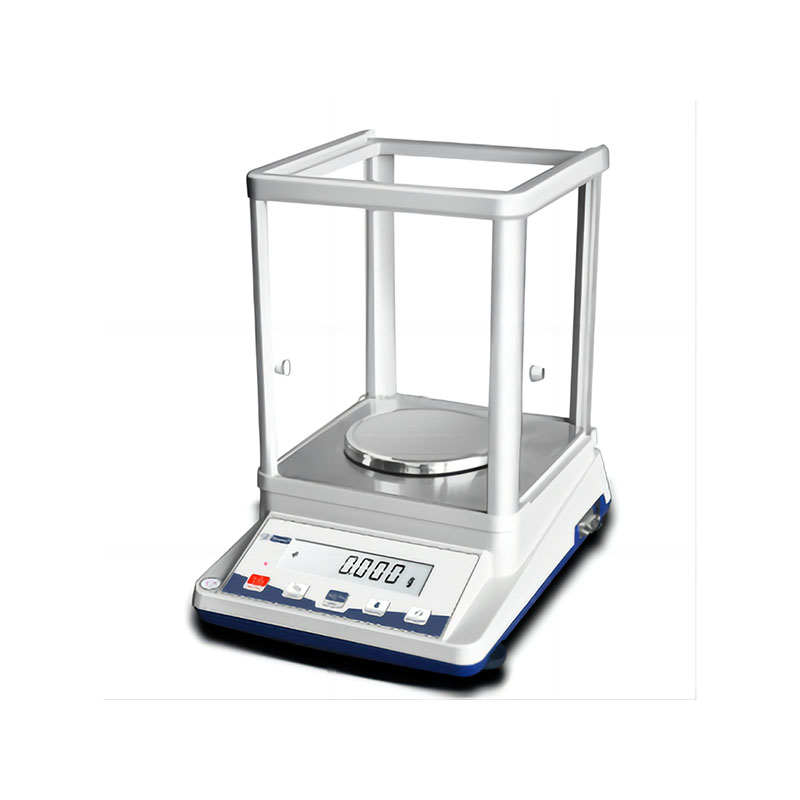

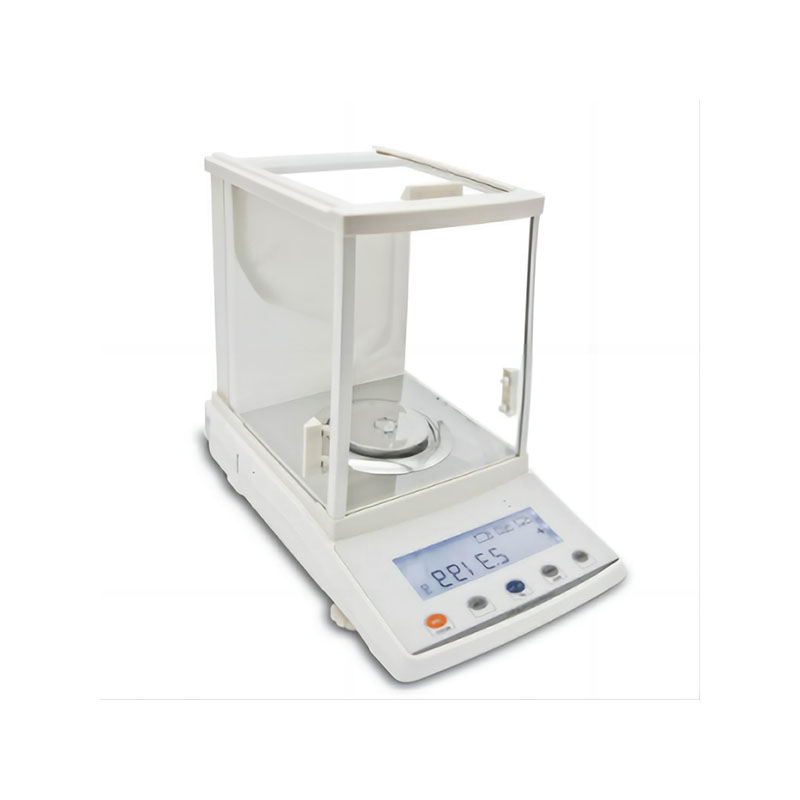

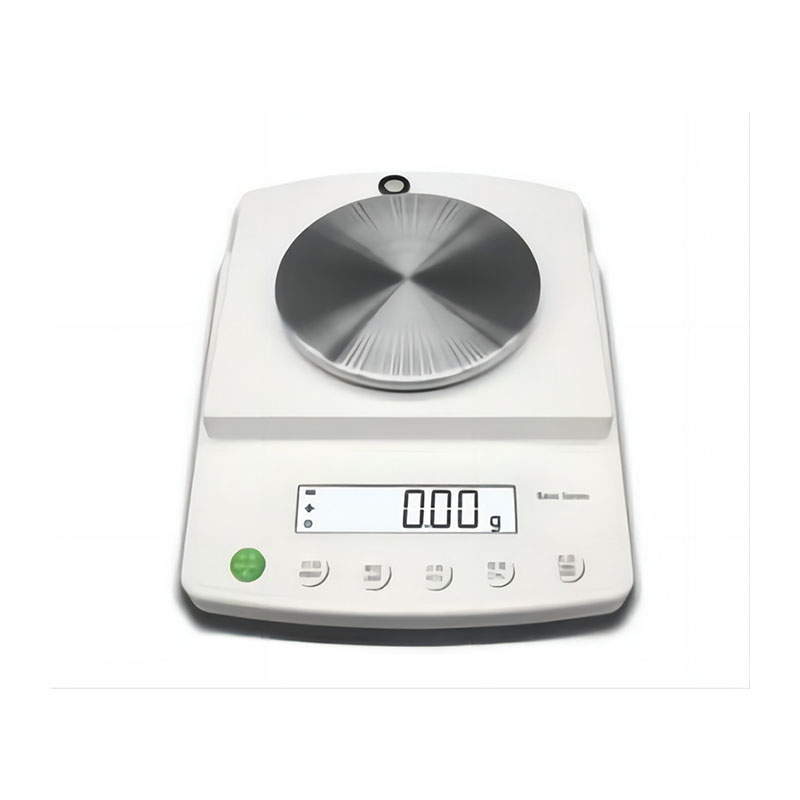

Digital display + intelligent interaction + data-compliant operation are the intuitive hallmarks that distinguish modern electronic balances from traditional mechanical balances. HTN LCD are widely used in various electronic balance products, such as ultra-micro electronic balances, micro electronic balances, semi-micro electronic balances, and analytical balances. They directly display weighing results with clear, unambiguous digits, eliminating reading errors caused by various factors in mechanical balances. Backlit HTN LCD ensure clear visibility even under low-light conditions, improving reading reliability. When electronic balances are connected to printers, computers, and other devices, they can display GLP data reports in real time, which is crucial for establishing a traceable and transparent experimental data management system.
EASTERN DISPLAY provides dozens of custom segment displays to customers including SHIMADZU, shipping over 100,000 HTN LCD units annually. We have accumulated extensive technical experience in product design, core parameters, and applications. Eastern Display is committed to consistently delivering high-quality, cost-effective HTN LCD to our customers with stable supply.
| Manufacturer | Eastern?Display |
| Display mode | HTN ?LCD |
| Viewing angle | 6/12 O’ CLOCK |
| Operating voltage | 3.0V ---5.0V |
| Viewing angle range | 110-150° |
| Connection | FPC/Pins |
| Driver chip model | / |
| Backlight type/color | / |
| Operating temperature | -40℃-80℃ |
| Storage temperature | -40℃-85℃ |
| Lifetime | 100,000?H |
| Multi-color | YES |
| Special shaped | YES |
| Product features | High reliability |
