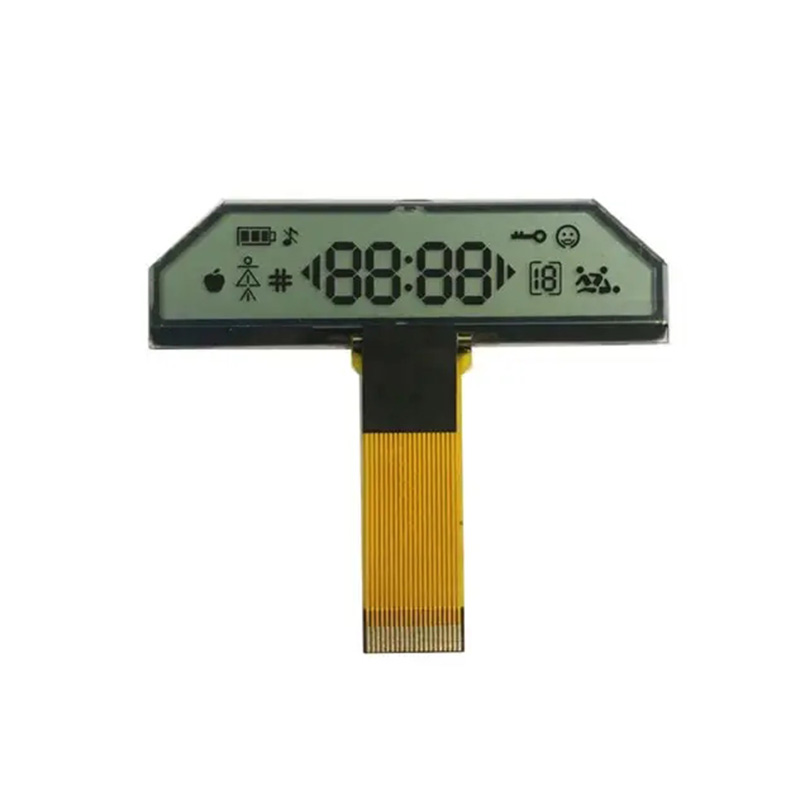

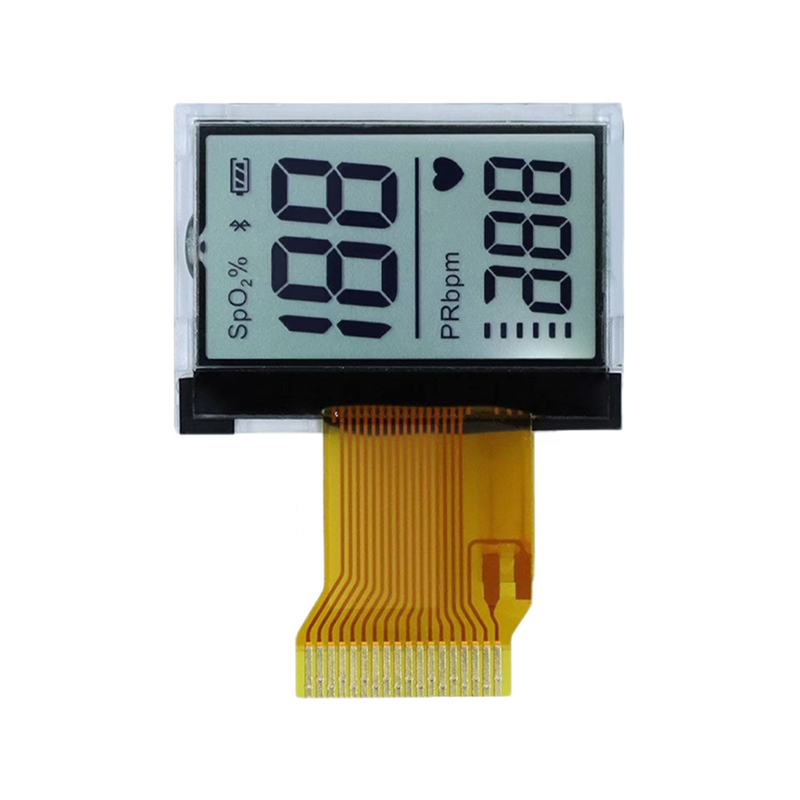

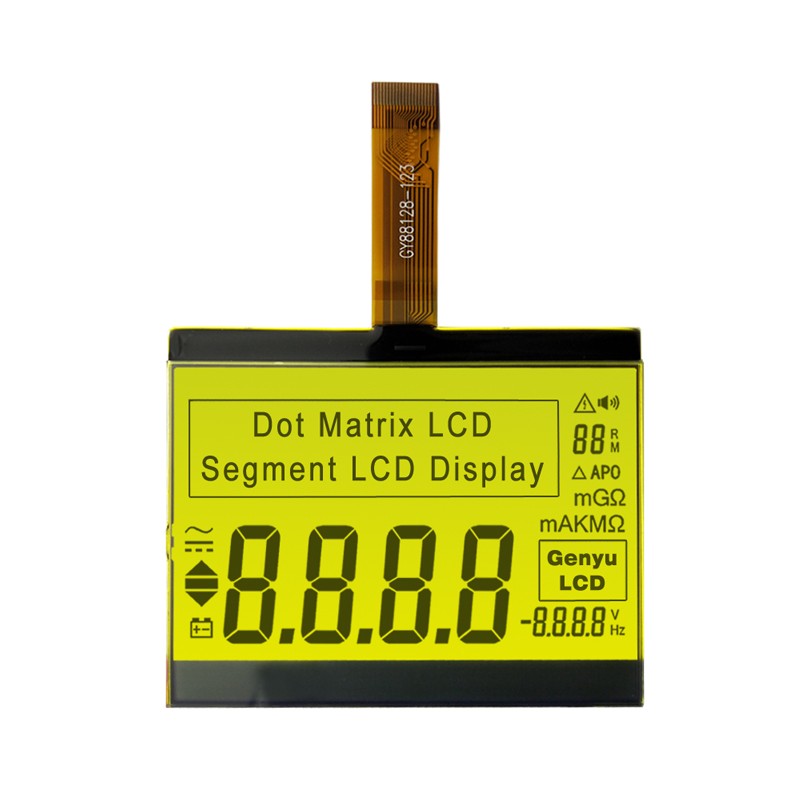

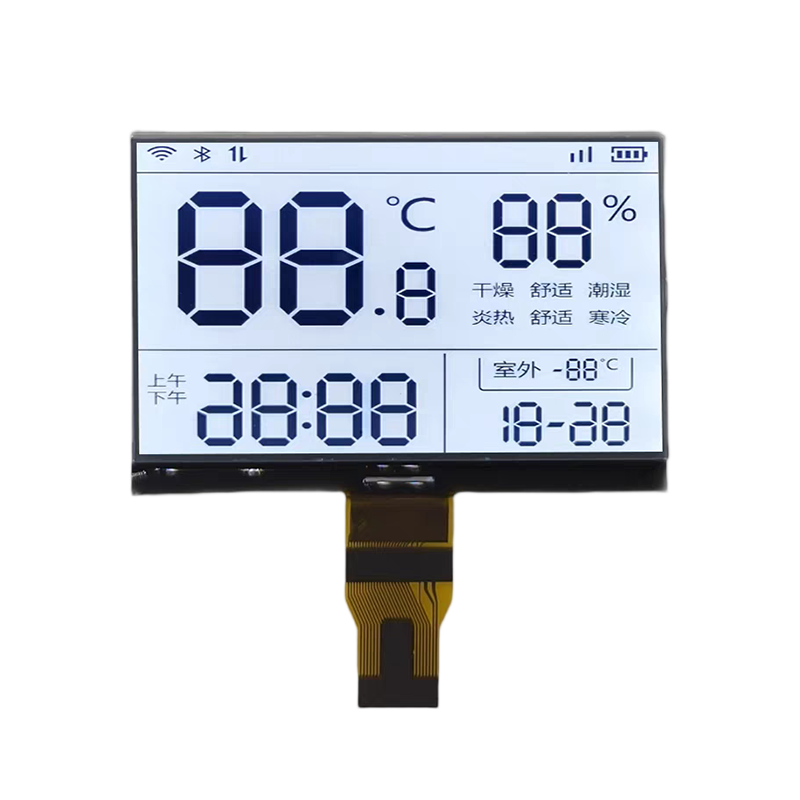

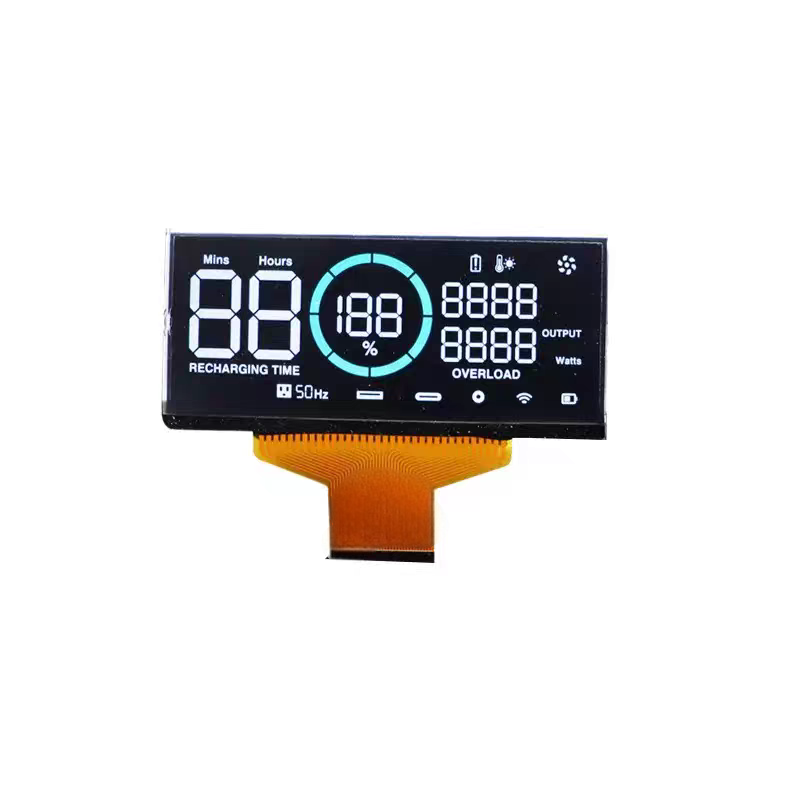

An FPC LCD, or Flexible Printed Circuit LCD, utilizes a flexible printed circuit board (FPC) for connection. This interconnection method can serve as the lead output interface for LCD glass without a driver chip, and can also achieve integrated connection with COG (chip-on-glass) LCDs. These products feature a solder-free design for easy installation and a lightweight, compact structure, making them suitable for various applications with strict space and weight requirements.
FPC LCDs offer excellent thinness, lightness, and flexibility, with an overall thickness controllable to just a few millimeters. They support bending, folding, and even rolling, allowing for flexible adaptation to three-dimensional spatial arrangements. Having undergone rigorous testing, these products possess outstanding mechanical stability and electrical performance, ensuring long-term operational reliability. They utilize a plug-in connection design, enabling efficient integration with the main board without the need for soldering, thus enhancing production efficiency. Furthermore, they support high-density wiring processes, enabling complex circuit layouts within limited spaces and fully meeting the technical requirements of small-sized LCD segment code screens that demand high-density pinouts with numerous leads. In all other performance aspects, FPC LCDs are completely identical to standard LCD screens and can pass stringent environmental tests. They also meet the parameter requirements for industries such as industrial controls, medical devices, automotive, and home appliances. With over 10,000 customized product models ranging from EDC001 to EDC26035, all products comply with the RoHS 2.0 directive and REACH regulations.
| Manufacturer | Eastern Display |
| Display mode | VA /TN/HTN/STN?LCD |
| Viewing angle | 6/12 O’ CLOCK |
| Operating voltage | 3.0V ---5.0V |
| Viewing angle range | 120-180° |
| Connection | FPC |
| Driver chip model | / |
| Backlight type/color | / |
| Operating temperature | -40℃-80℃ |
| Storage temperature | -40℃-85℃ |
| Lifetime | 100000?H |
| Multi-color | YES |
| Special shaped | YES |
| Product features | solder-free process, flexible plug-in assembly |
