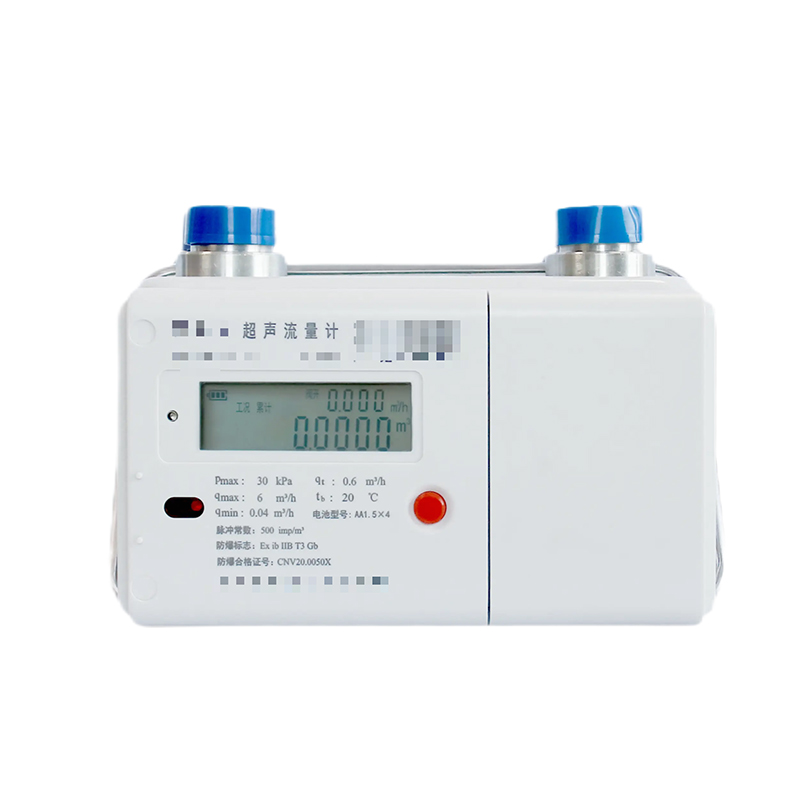

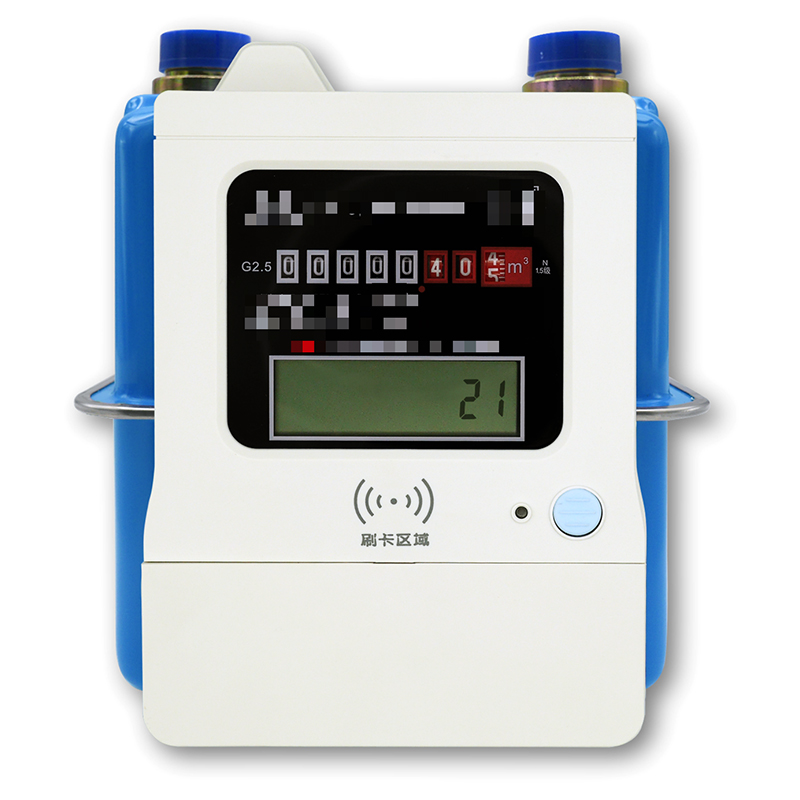

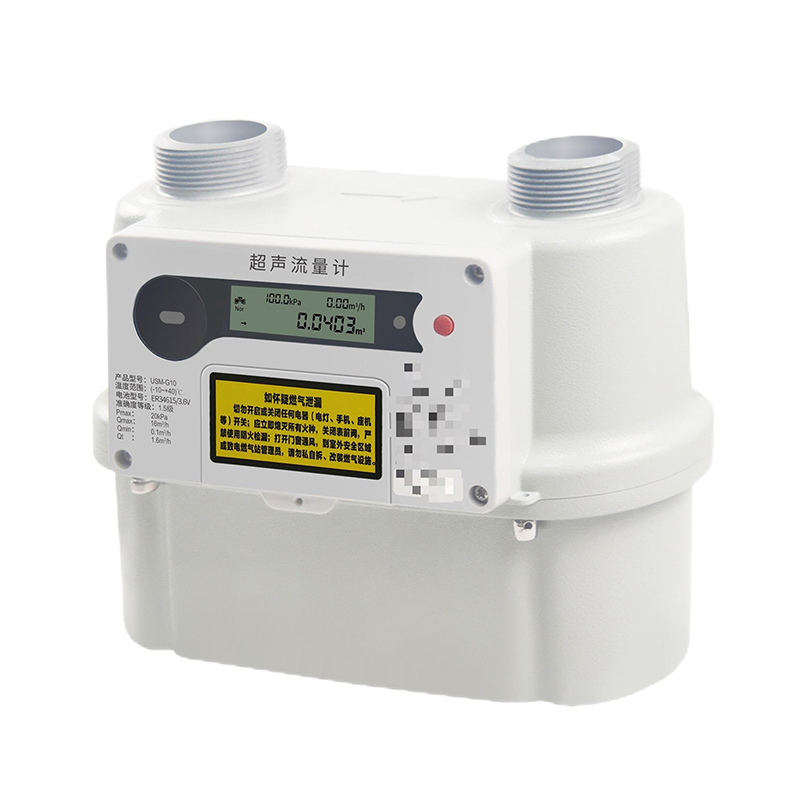

Product description: Segment LCD is widely used in industrial instruments, industrial control equipment and communication equipment such as flow meters, microcomputer protection devices, recorders, energy meters, handheld meters, digital display meters, measuring meters, test meters, etc. HTN LCD is used to display the measurement results, parameters, status information of instruments and meters, and the operating status, alarm information and operation interface of industrial control equipment and communication equipment. EASTERN DISPLAY provides thousands of HTN LCDs to customers in North America, Europe, East Asia, etc. The number of HTN LCDs supplied each year exceeds 10 million. ...
Segment LCD is widely used in industrial instruments, industrial control equipment and communication equipment such as flow meters, microcomputer protection devices, recorders, energy meters, handheld meters, digital display meters, measuring meters, test meters, etc. HTN LCD is used to display the measurement results, parameters, status information of instruments and meters, and the operating status, alarm information and operation interface of industrial control equipment and communication equipment.
EASTERN DISPLAY provides thousands of HTN LCDs to customers in North America, Europe, East Asia, etc. The number of HTN LCDs supplied each year exceeds 10 million. Based on many years of product development and production experience in serving customers of industrial instruments, industrial control equipment and communication equipment, it has rich technical accumulation in product design, core parameters and customer concerns. It can provide customers with high-quality and cost-effective LCD segment displays in a continuous and stable manner.
| Manufacturer | EASTERN DISPLAY |
| Display type | HTN LCD/Negative |
| Viewing angle | 6/12 0’?CLOCK ?(custom made) |
| Operating voltage | 3.0V ---5.0V (custom made) |
| Backlight type | (custom made) |
| Backlight color | (custom made) |
| Operating temperature | -40℃-70℃(custom made) |
| Storage temperature | -40℃-80℃(custom made) |
| Display life | 100,000-200,000 hours (custom made) |
| ROHS standard | YES |
| REACH standard | YES |
| Applicable fields and scenarios | Industrial instruments, industrial control equipment and communication equipment |
| Product features | Low Cost LCD |
| Keywords：LCD segment display/custom LCD display/LCD screen/small LCD display/LCD display price/custom segment display/LCD glass/LCD display/LCD display panel/Low power LCD | |
