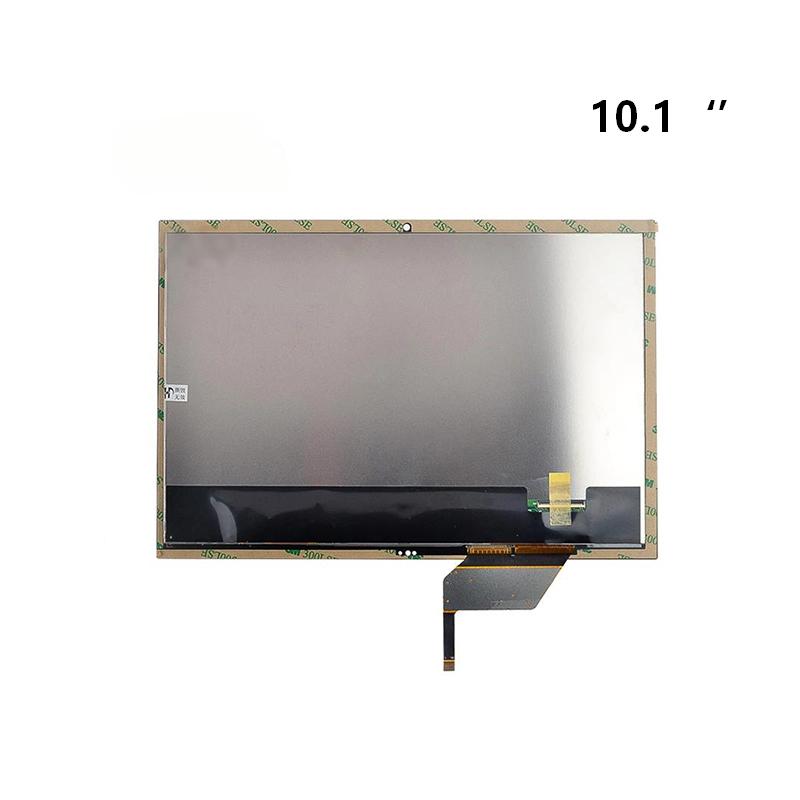

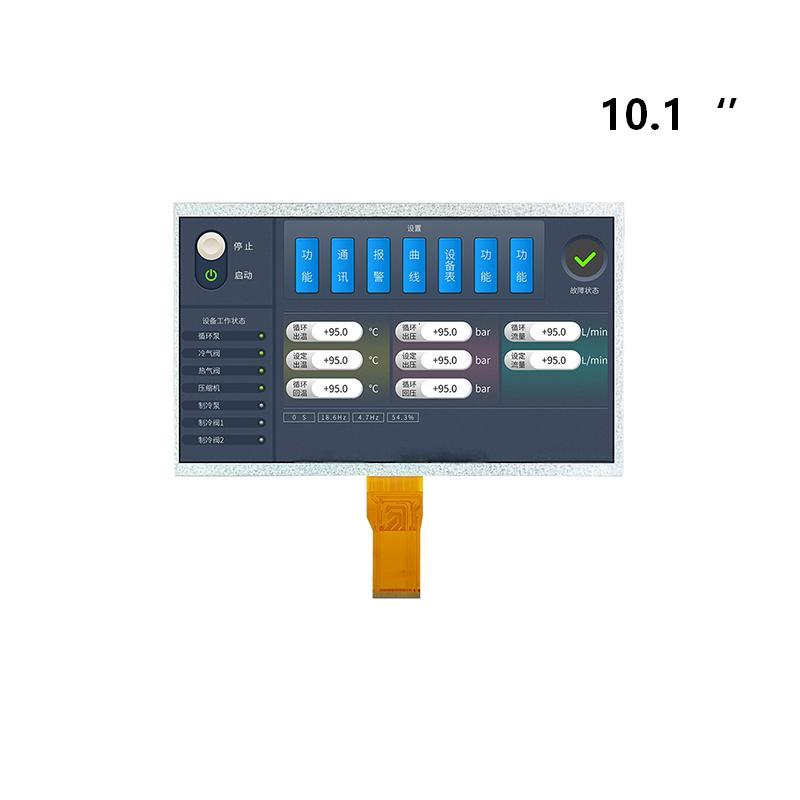

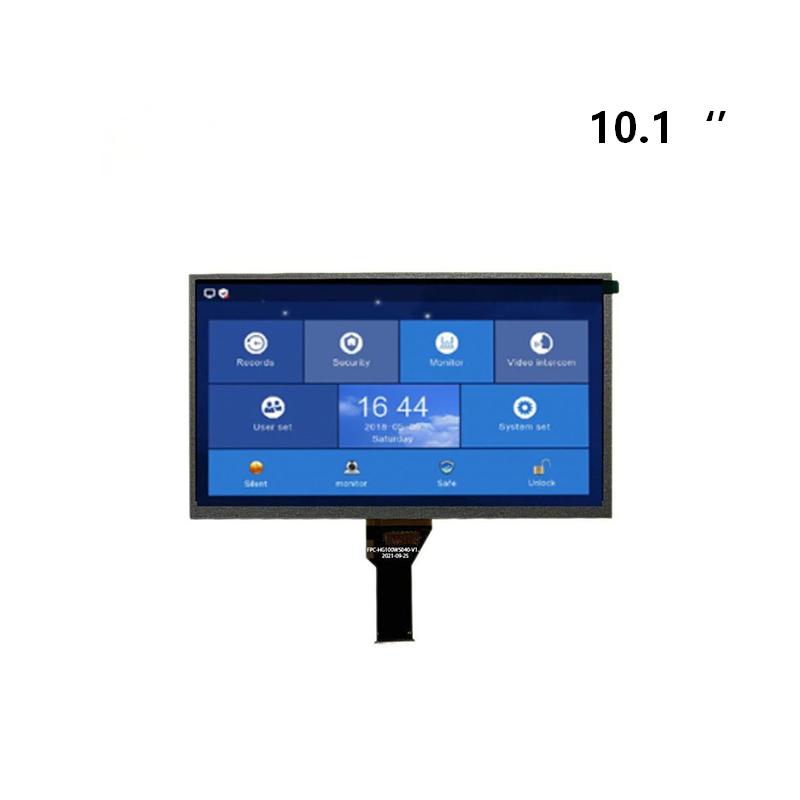

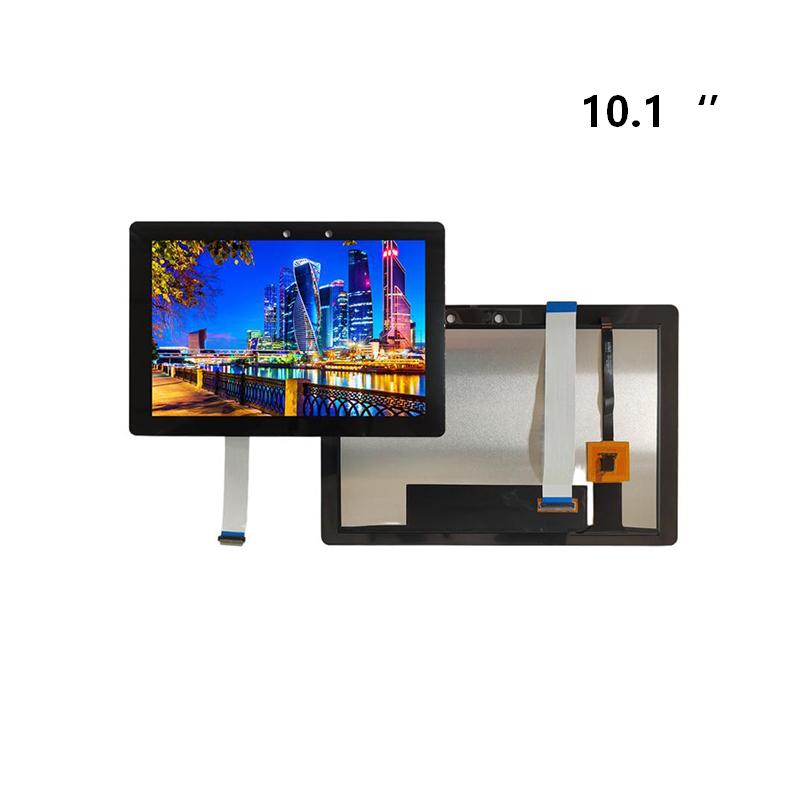

This 10.1-inch industrial-grade TFT display is engineered for demanding industrial environments. Featuring a 1280×800 high-definition resolution and IPS full-view technology, it delivers clear and precise image quality. With stable LVDS interface and electromagnetic interference resistance design, it ensures reliable operation even within an extended temperature range of -20℃ to 70℃. Whether used in precision medical equipment or complex industrial control instruments, it serves as a dependable display solution for your critical applications.
EASTERN DISPLAY ─ Your Global Display Solutions Expert
? Trusted by Multinational Clients
We serve clients across 20+ countries including China, Germany, the USA, and Poland, having delivered 1,000+ customized TFT display solutions.
? Stringent Environmental Standards
All products comply with RoHS/REACH certifications.
? Precise Adaptation Capability
We offer a full-size range from 2.0" to 15.6", with resolutions selectable from 240×320 up to 1920×1080.
? Customization Services Available
We provide tailored solutions including:
1,Backlight brightness
2,Cover glass thickness and shape customization
3,Cover glass treatments: AR/AG/AF coating & tempering
4,OCA full lamination
5,TFT metal enclosures
6,Optional RTP/CTP (Resistive/Capacitive Touch Panel)
7,Optional IP65 protection rating
| Manufacturer | Eastern Display |
| Product model | EDT101BI0-C5 |
| Resolution | 1280*800 |
| Interface | LVDS |
| Driver chip | EK79202B |
| Connection method | FPC |
| Display type | 16.7M TFT display |
| Viewing angle | Free |
| Operating voltage | 3.3V |
| Backlight type | LED backlight |
| Backlight brightness | 350cd/m2 |
| Operating temperature | -20-70℃ |
| Storage temperature | -30-80℃ |
| Cover | customized services such as AF/AG/AR. |
| Lifetime | 50000H |
Keywords：LCD display screen/LCD16x2/LCD display 16x2/i2c LCDdisplay/ips LCD/led backlit LCD/Dot matrix display/LCD dot matrix display/mini LCD screen/transparent LCD screen/LCD1602/r LCD/EDC18109-01/EDC9697VA/EDC9698VA

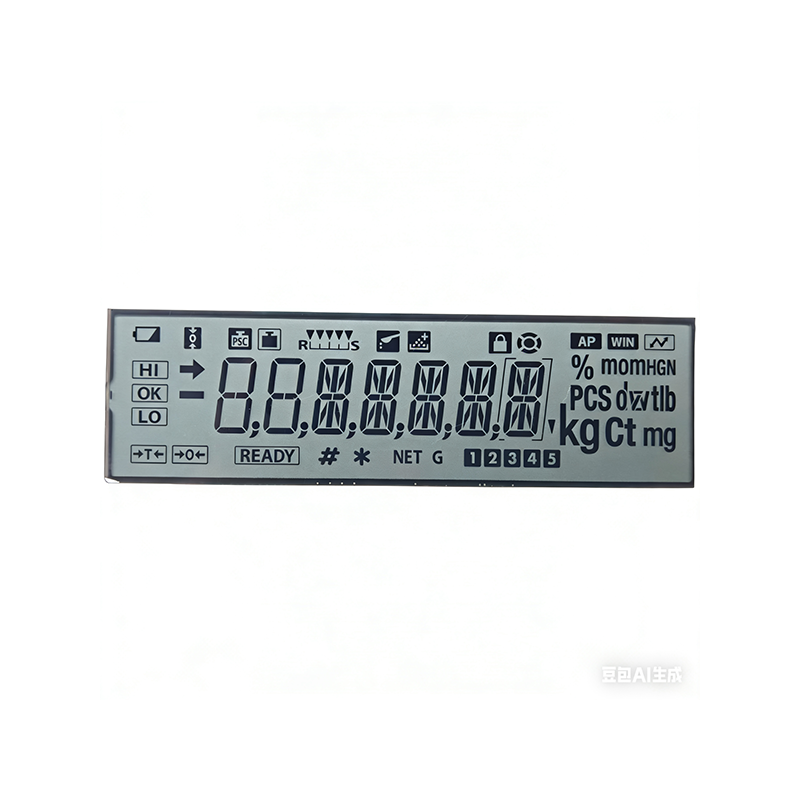

Digital display + intelligent interaction + data-compliant operation are the intuitive hallmarks that distinguish modern electronic balances from traditional mechanical balances. HTN LCD are widely used in various electronic balance products, such as ultra-micro electronic balances, micro electronic balances, semi-micro electronic balances, and analytical balances. They directly display weighing results with clear, unambiguous digits, eliminating reading errors caused by various factors in mechanical balances. Backlit HTN LCD ensure clear visibility even under low-light conditions, improving reading reliability. When electronic balances are connected to printers, computers, and other devices, they can display GLP data reports in real time, which is crucial for establishing a traceable and transparent experimental data management system.

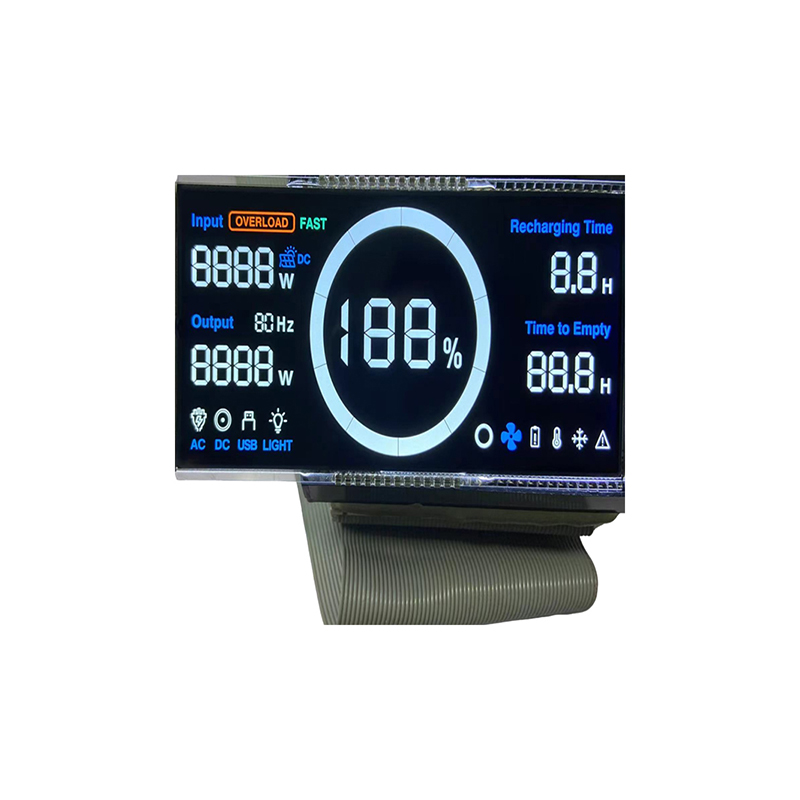

VA LCD products are widely used in outdoor portable power solutions such as portable energy storage systems, household energy storage units, and RV power systems. The LCD screen digitally and accurately displays real-time parameters including power levels and wattage, interface status, safety alerts, charge-discharge management, and power consumption analysis. It serves as a key component in outdoor portable power products for visually presenting functions such as electricity usage planning, operational status, fault warnings, and power distribution. Furthermore, compared to TFT products, LCD segment displays offer significant cost advantages. The black background of VA LCDs also effectively supports the visually integrated design of portable power products.
Product Description: The rangefinder-specific LCD is a lens-compatible LCD display featuring a compact size, high contrast, shock resistance, durability, and excellent environmental adaptability. It requires high display accuracy to meet magnification inspection requirements, with edges remaining smooth and free of burrs even after 50x magnification. The product’s small size necessitates specialized fixtures and equipment for bonding polarizing films or chips, as well as FPC pressing.

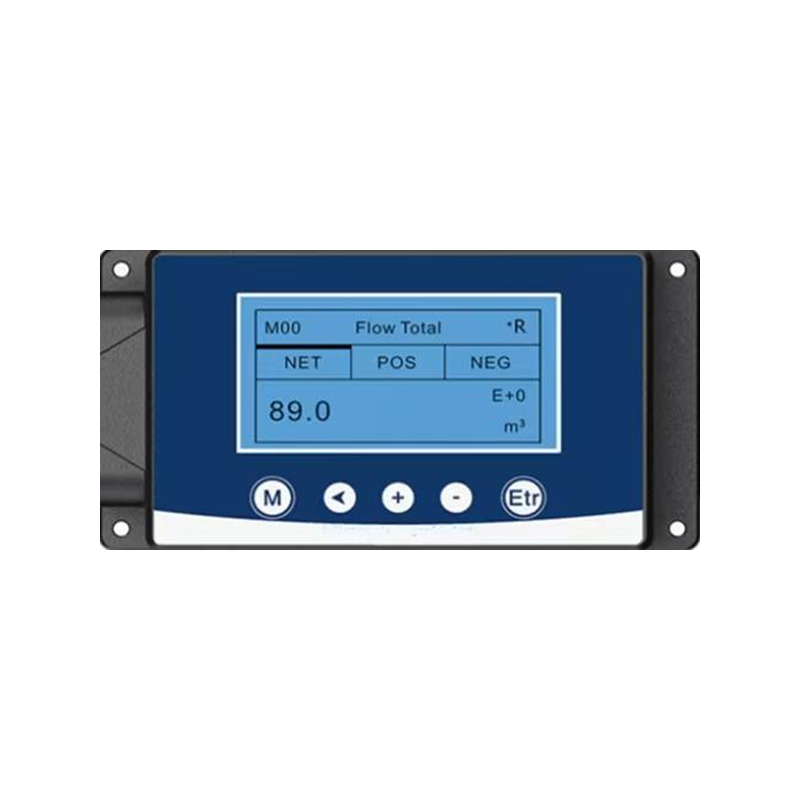

The FSTN dot-matrix LCD screen, featuring high contrast ratio, wide viewing angle, and low power consumption, stands as the ideal display solution for high-end flow meters. This LCD display operates in FSTN mode with 128×128 or 128×64 resolution, showcasing blue-black text on a gray background with exceptional contrast and wide viewing angles. The module incorporates driver chips manufactured through COG technology, delivering slim profile, low power consumption, and broad operating temperature range. Equipped with SPI interface or 8-bit parallel LCD interface for connection to main control MCU, it delivers high-quality image and text display with stable performance.
Product description: TN products are widely used, cost-effective, wide temperature, U...

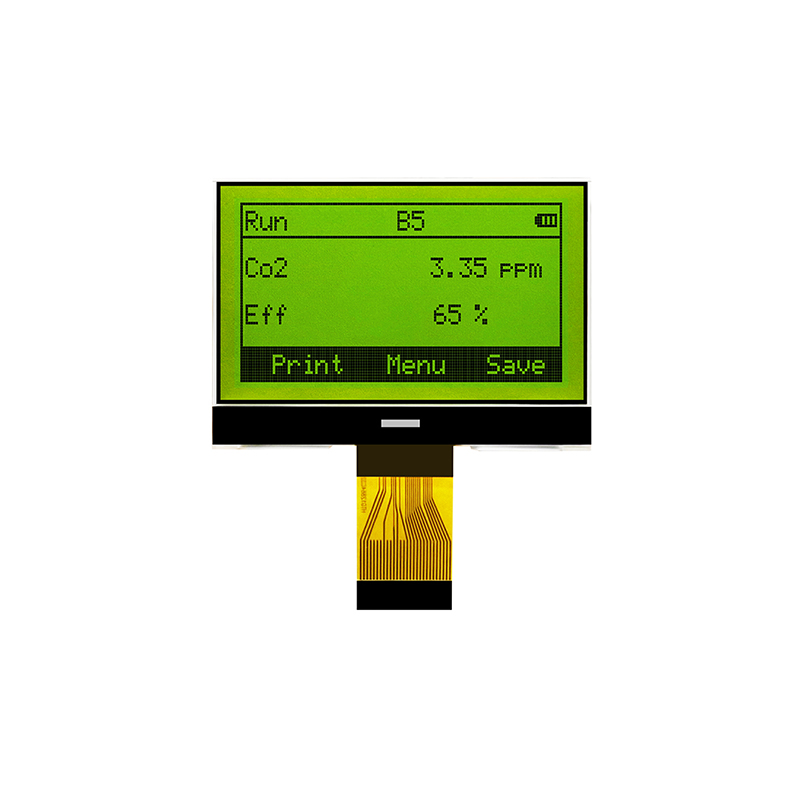

This product features a 12864 LCD dot-matrix display capable of showing 128 columns x64 rows of pixels. The display employs an STN-mode LED backlight LCD with yellow-green background and blue-black text, offering high contrast ratio, wide viewing angles, and broad operating temperature range. The module contains driver chips manufactured through COG technology, ensuring lightweight design and low power consumption. It connects to the main MCU via SPI interface for displaying various images and text.
