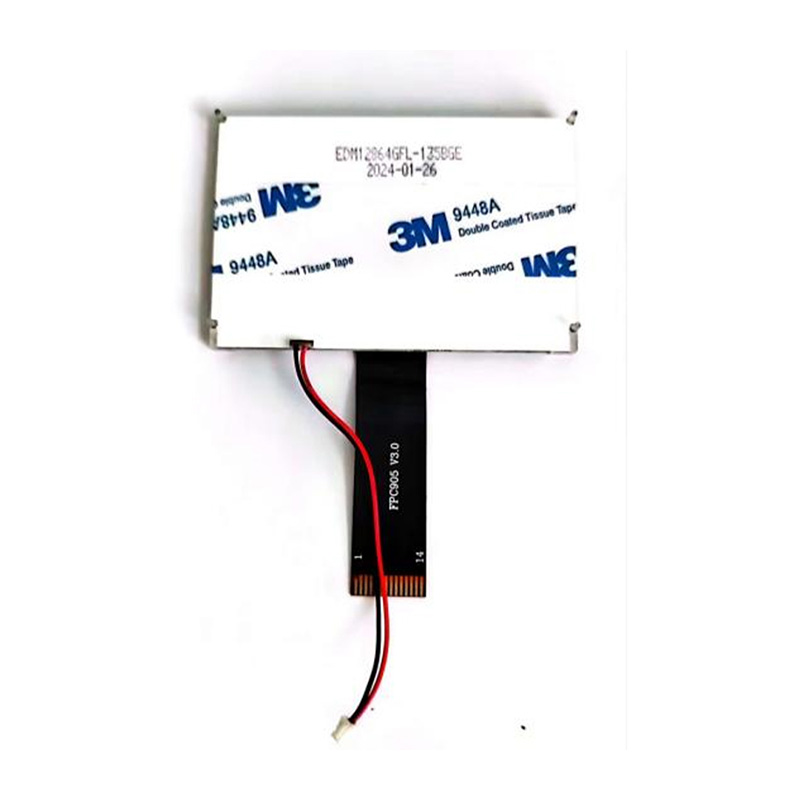

This product is a 12864 LCD dot matrix display, capable of displaying graphics with 128 columns and 64 rows of pixels. The display features an FSTN mode LED backlit LCD, presenting blue-black characters on a gray background with high contrast and a wide viewing angle. The module integrates a driver chip and is manufactured using COG (Chip-on-Glass) technology, resulting in a slim, lightweight design and low power consumption. It connects to the main control MCU via an SPI interface and is used for displaying various images and text.
This product is a 12864 LCD dot matrix display, capable of displaying graphics with 128 columns and 64 rows of pixels. The display features an FSTN mode LED backlit LCD, presenting blue-black characters on a gray background with high contrast and a wide viewing angle. The module integrates a driver chip and is manufactured using COG (Chip-on-Glass) technology, resulting in a slim, lightweight design and low power consumption. It connects to the main control MCU via an SPI interface and is used for displaying various images and text. Such graphic dot matrix displays are available in resolutions including 122x32, 128x64, 128x128, 144x32, 160x160, 160x32, 160x80, 192x64, 240x64, 240x128, 320x240, etc. Customers can select different combinations of LCD backlight and LCD panel types based on product requirements.

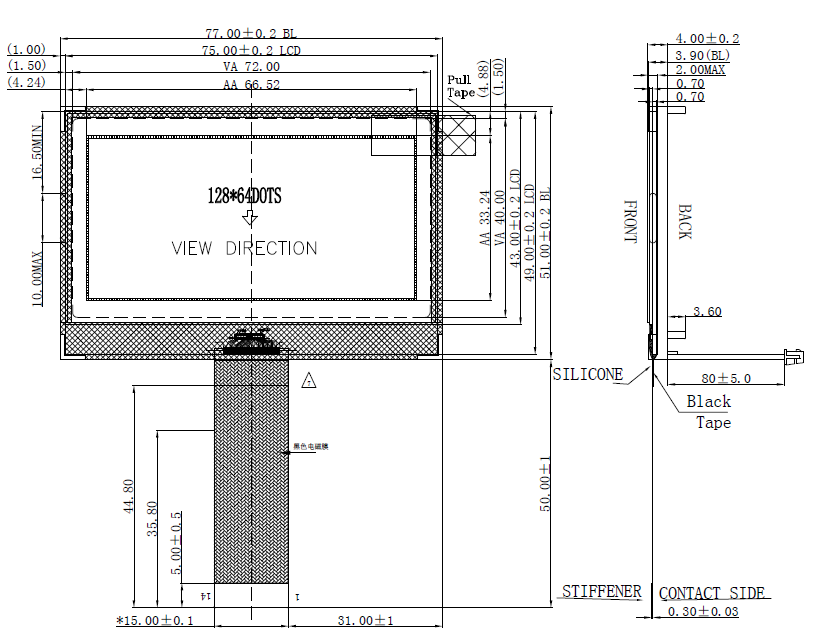

| Manufacturer | Eastern?Display |
| Product model | EDM12864-135 |
| Display content | 128x64 dot matrix display |
| Background | Gray |
| Interface | SPI interface |
| Driver chip model | LCD?controller???ST7565R |
| Module type | COG?LCD?Module |
| Connection | FPC |
| Display type | FSTN LCD，Positive，Transflective |
| Viewing angle | 12 O'clock |
| Operating voltage | 3.3V |
| Backlight type | LED?backlit |
| Backlight color | White |
| Operating temperature | -20~70℃ |
| Storage temperature | -30-80℃ |
Keywords：LCD display screen/LCD16x2/LCD display 16x2/i2c LCDdisplay/ips LCD/led backlit LCD/Dot matrix display/LCD dot matrix display/mini LCD screen/transparent LCD screen/LCD1602/r LCD/EDC18109-01/EDC9697VA/EDC9698VA
Product description: HTN segment LCD is an improved product of TN segment LCD, with a...
This product is a 5-inch TFT display specifically designed for automotive instrument clusters. It features an 800×480 resolution with an RGB interface and incorporates IPS technology, achieving a brightness of up to 1000 cd/m2 to ensure clear visibility even under strong light conditions. With an operating temperature range of -30°C to 85°C and excellent electromagnetic compatibility, it meets the stringent reliability and stability requirements of the automotive industry. This display is suitable for a wide range of pre-installed instrument systems in heavy-duty trucks, light trucks, buses, and new energy passenger vehicles.
Product description: TN products are widely used, cost-effective, wide temperature, U...
Product description: This product is an industrial-grade TFT display with a resolutio...
Product description: This product is a high-definition automotive instrument large-si...
Product description: Industrial OLED Display module, resolution 128*64, I2C interface...
This product is an LCD 20×4 character dot matrix display module designed for displaying ASCII characters, featuring 4 rows with 20 characters per line. The screen utilizes an STN yellow-green mode LED backlit LCD, displaying yellow-green background with black characters, offering high contrast and a wide viewing angle. The module incorporates the ST7066 universal character driver chip, adopts COB production technology, and connects to the main control MCU via an 8-bit parallel LCD interface, ensuring ease of use.
This product is an industrial instrument display, with a resolution of 800*480, RGB interface, 800cd/m2LED backlight, supporting wide temperature operation from-30℃ to 80℃, and compatible with complex electromagnetic environment. It is widely used in flowmeter, analyzer, VOC detector, balance, ionmeter and other industries.
This product is a 12864 LCD dot matrix display capable of displaying graphics with a resolution of 128 columns × 64 rows. The screen adopts the FSTN mode, featuring a gray background with blue-black characters, high contrast, and a wide viewing angle. The module integrates a driver chip and utilizes COG production technology, making the product slim, lightweight, and low in power consumption. It connects to the main control MCU via an SPI interface or an 8-bit parallel LCD interface for displaying various images and text.
This customized segment code COG module features a TN LCD display integrated with driver chips using COG technology. The Transflective mode LCD panel is paired with LED backlighting, ensuring clear visibility in both bright and dim environments. It connects to the main MCU via a serial I2C interface through either a PIN or FPC connection. This LCD display module delivers low power consumption, a slim profile, excellent visual performance, stable operation, and cost-effective features.
A round color OLED display with resolution of 128*115, SPI 4 interface, Driver IC: GC9107. The product has self-illumination, full view, no shadow in low temperature environment and other characteristics. It is widely used in smart wearable devices and smart home control terminals.
Segment LCDs are widely used in fishing equipment, serving as the human-machine interface (HMI) display for devices such as smart fishing reels, fish finders, remote controls for bait boats, fishing scales, and fishing tackle boxes. Segment LCDs feature low cost, low power consumption, and high reliability, making them highly suitable for displaying critical parameters like numbers and fixed symbols.
0.54-inch OLED display module is an ultra-compact, high-contrast solution designed for embedded systems and portable electronic devices. With a resolution of 96 x 32 pixels and an operating temperature range of -40 to 70°C, it enables clear information display within a minimal footprint. It is widely used in smart wearable devices, portable industrial instruments and meters, and controllers for small household appliances.
The segment COG module features a TN or VA LCD display with LED backlighting, ensuring clear visibility in both bright and dim environments. Utilizing the COG technology, it integrates driver chips and connects to the main MCU via SPI/I2C interfaces through flexible printed circuits (FPC) or metal pins. This lightweight design offers wide temperature tolerance, low power consumption, user-friendly operation, and excellent cost-effectiveness. Customizable configurations are available for various LCD types including TN, HTN, STN, FSTN, and VA. The display supports seven-segment numbers and customizable graphic symbols, making it widely applicable in automotive air conditioning controllers.
Product description: TN LCD is widely used in industrial instruments, industrial cont...
The COG LCD product is widely used in differential pressure flowmeters, positive displacement flowmeters, variable area flowmeters (rotameters), turbine flowmeters, electromagnetic flowmeters, vortex flowmeters, ultrasonic flowmeters, mass flowmeters, volumetric flowmeters, and more. Its dot matrix display can present information such as instantaneous flow rate, total accumulated flow, operational status indicators, engineering units, conductivity/empty pipe alarms, frequency/signal strength, temperature and density, speed of sound, and time of flight difference,?in multiple languages as well as digitally. It ensures the accurate and reliable display of measurement data from the instrumentation.
