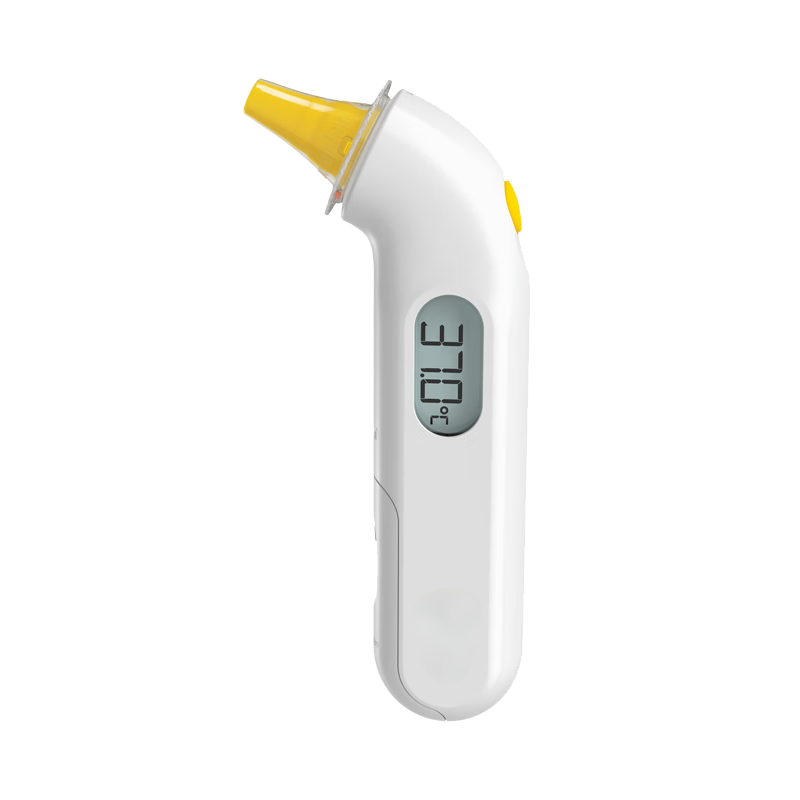

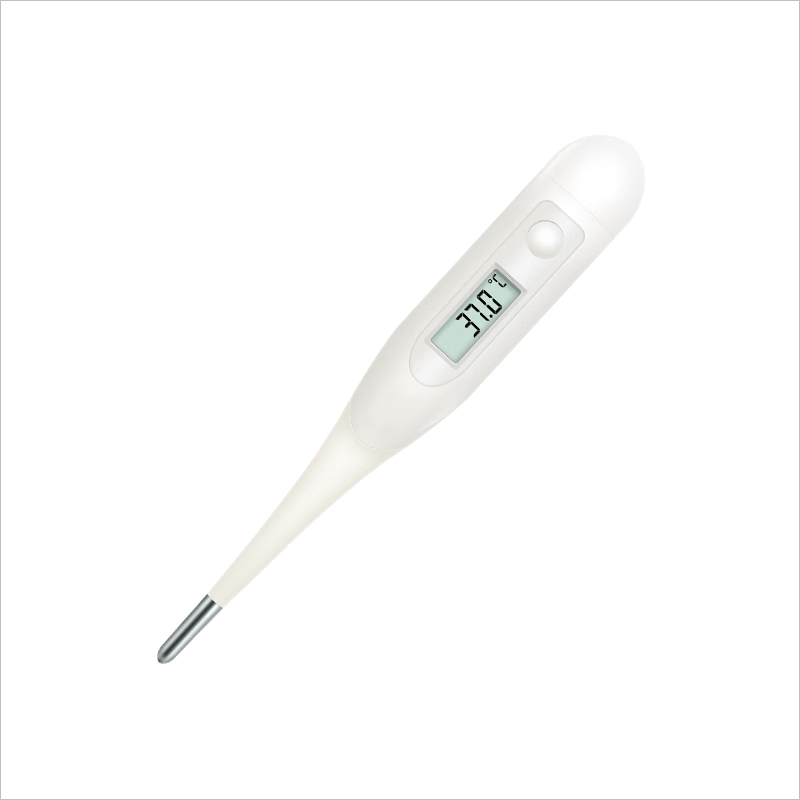

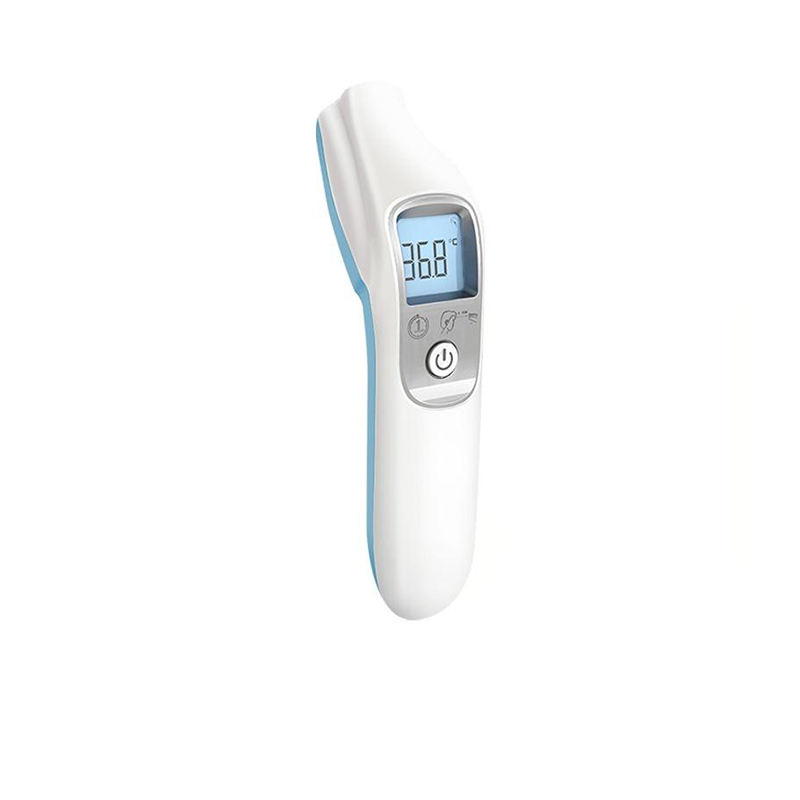

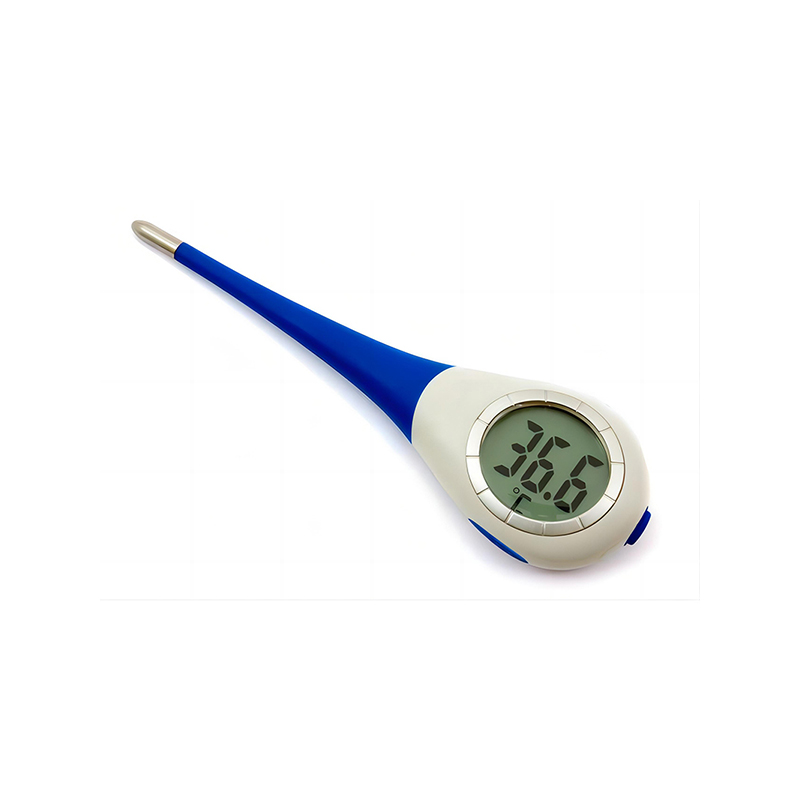

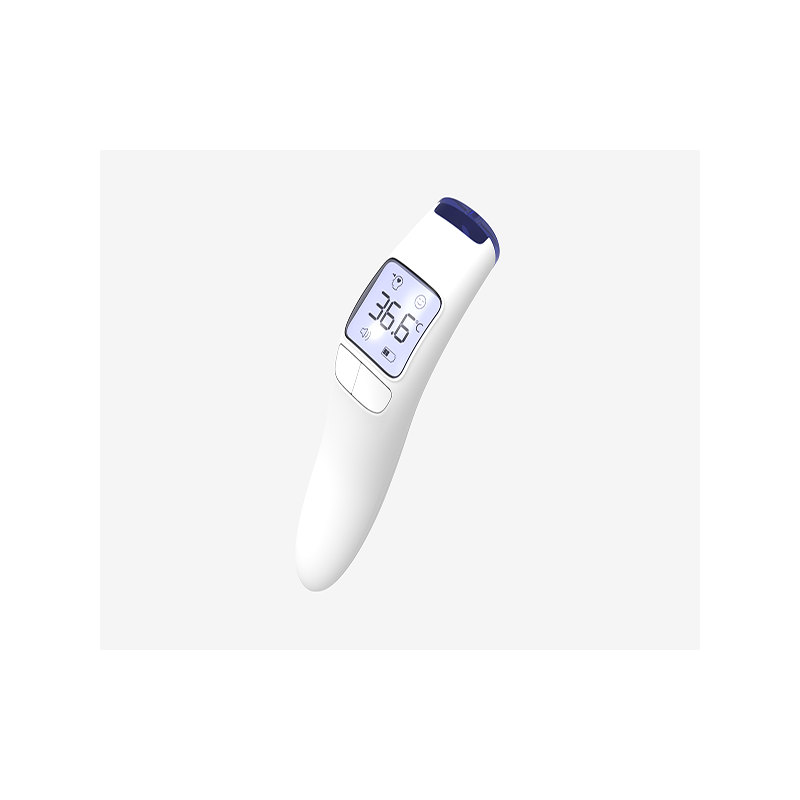

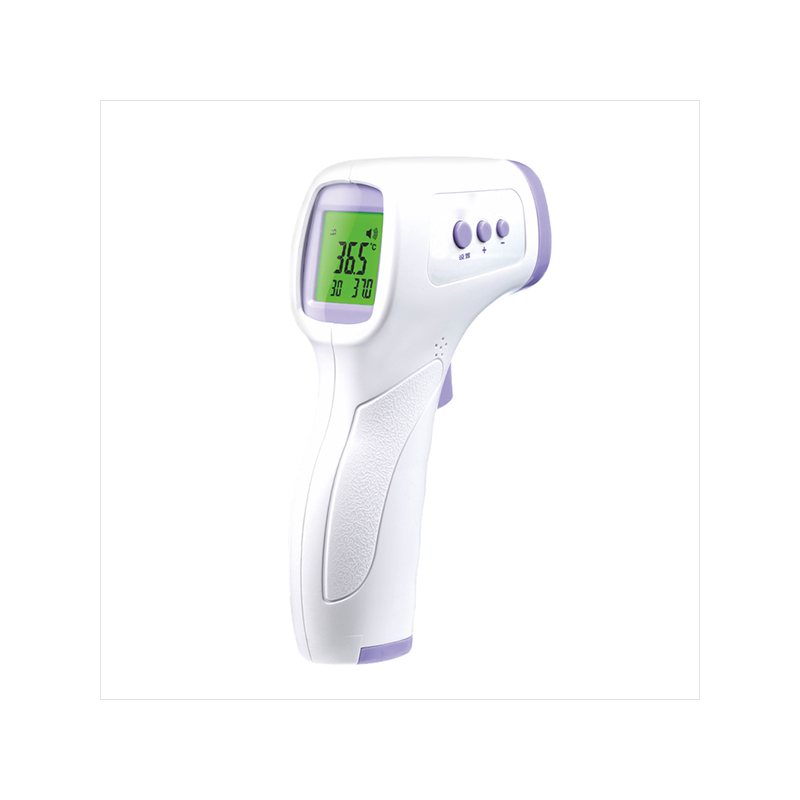

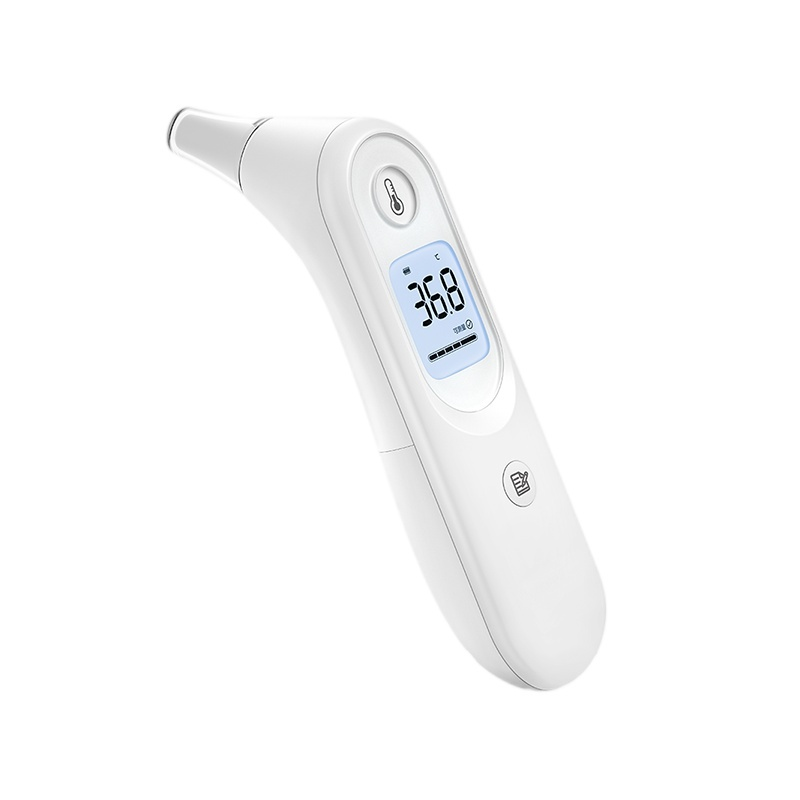

TN LCDs are indispensable core display components in electronic thermometers and are widely used in various types such as pen-type, infrared ear, infrared forehead, and pacifier thermometers. As the “window” for communication between the thermometer and the user, the LCD intuitively converts the temperature electrical signals collected by the sensor into clear and easy-to-read numbers. This allows users not only to directly read the temperature result but also to access information such as battery level, memory data, and measurement mode, completing essential human-machine interaction. Particularly, segment LCD used in conjunction with low-power MCU consume extremely low power, perfectly meeting the requirements for long standby times and frequent use of thermometers. Furthermore, modern LCD themselves offer the advantage of being thin and lightweight. Coupled with the fact that many MCU designed for portable devices integrate LCD drive control circuits, this helps simplify the internal circuit design of the thermometer, reduce the number of components, and achieve a more compact and lighter product appearance.
Eastern Display supplies thousands of TN LCD models to clients such as Omron, Panasonic, and ISENS. The annual shipment of electronic thermometer products exceeds ten million units. We have accumulated extensive technical expertise in product design, core parameters, and applications. Eastern Display is able to consistently and steadily provide customers with high-quality and cost-effective TN LCD.
| Manufacturer | Eastern?Display |
| Display mode | TN ?LCD |
| Viewing angle | 6/12 O’ CLOCK |
| Operating voltage | 3.0V |
| Viewing angle range | 90-120° |
| Connection | ZEBRA |
| Driver chip model | / |
| Backlight type/color | / |
| Operating temperature | -20℃-70℃ |
| Storage temperature | -30℃-80℃ |
| Lifetime | 100,000?H |
| Multi-color | YES |
| Special shaped | YES |
| Product features | Low power consumption |
