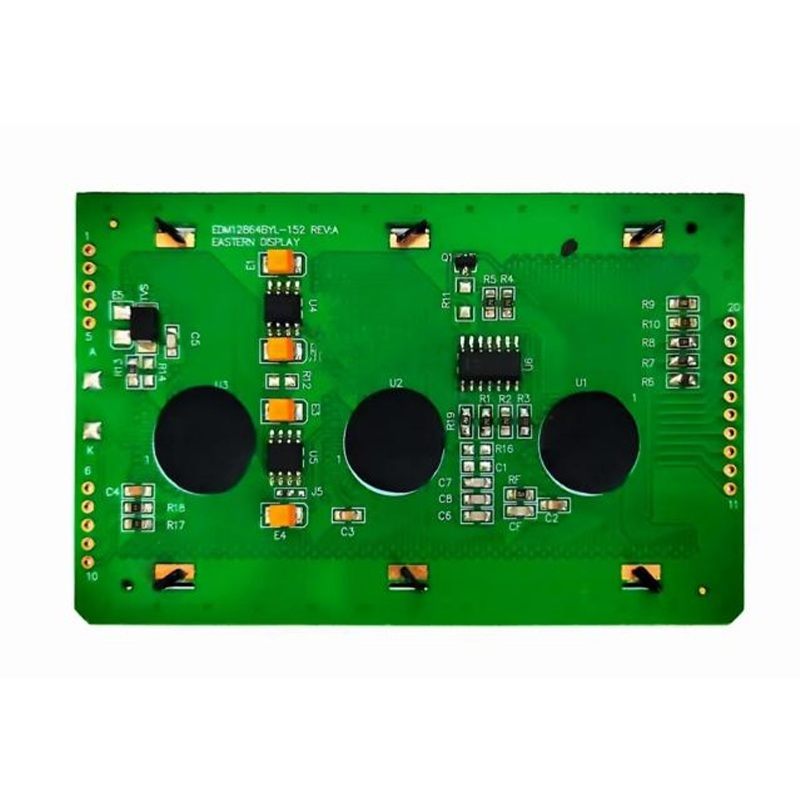

This product is a 12864 LCD dot matrix display capable of displaying graphics with 128 columns and 64 rows of pixels. The display features an STN yellow-green mode with LED backlit LCD, presenting black characters on a yellow-green background. It offers high contrast and a wide viewing angle. The module integrates a dedicated driver IC and utilizes COB production technology. It connects to the main control MCU via an 8-bit parallel LCD interface, enabling the display of various images and text. The built-in compensation circuit ensures excellent display performance even under wide-temperature operating conditions.
This product is a 12864 LCD dot matrix display capable of displaying graphics with 128 columns and 64 rows of pixels. The display features an STN yellow-green mode with LED backlit LCD, presenting black characters on a yellow-green background. It offers high contrast and a wide viewing angle. The module integrates a dedicated driver IC and utilizes COB production technology. It connects to the main control MCU via an 8-bit parallel LCD interface, enabling the display of various images and text. The built-in compensation circuit ensures excellent display performance even under wide-temperature operating conditions.
This type of graphic dot matrix display is available in various resolutions, including 122x32, 128x64, 128x128, 144x32, 160x160, 160x32, 160x80, 192x64, 240x64, 240x128, 320x240, and more. Customers can choose different combinations of LCD backlight and LCD panel based on their product requirements.
| Manufacturer | Eastern?Display |
| Product model | EDM12864-152 |
| Display content | 128x64 dot matrix display |
| Background | Yellow-green |
| Interface | 8-bit parallel LCD |
| Driver chip model | LCD?controller?SBN0064 |
| Module type | COB?LCD?Module |
| Connection | Zebra |
| Display type | STN LCD，Positive，Transflective |
| Viewing angle | 6 O'clock |
| Operating voltage | 5.0V |
| Backlight type | LED?backlit |
| Backlight color | Yellow-green |
| Operating temperature | -30~80℃ |
| Storage temperature | -35~85℃ |
Ключевые слова：v LCD/ардуино LCD /весы m er LCD/жк LCD /ибп LCD/обзор LCD/питание LCD/LCD отзывы/подключение LCD/схема LCD/тип LCD/ЖК-экран/TFT жк экран/ жк дисплей сенсорный экран/ жк экран/EDC8309FSC2P10A/EDC8877DC3P9/EDC7637HDC2P7A
Product description: Compared with TN LCD, HTN LCD, STN LCD, and FSTN LCD, VA LCD has...
This product is an LCD 16×2 character dot matrix display module, designed for displaying ASCII characters, featuring 2 rows with 16 characters each. The display utilizes an STN yellow-green mode LED backlit LCD, showing yellow-green background with black characters, offering high contrast and a wide viewing angle. The module contains an ST7066 universal character driver chip, manufactured using the COB production process. It connects to the main control MCU via an 8-bit parallel LCD interface, ensuring convenient and easy use.
Product description: Reflective LCD is a liquid crystal display technology that uses ...
This product is a 12864 LCD dot matrix display capable of showing graphics with a resolution of 128 columns × 64 rows of pixels. The screen utilizes FSTN technology, featuring a gray background with blue-black characters, offering high contrast and a wide viewing angle. The module incorporates a driver chip and is manufactured using COG (Chip-on-Glass) technology, resulting in a slim, lightweight design with low power consumption. It connects to the main control MCU via an SPI interface or an 8-bit parallel LCD interface, enabling the display of various images and text.

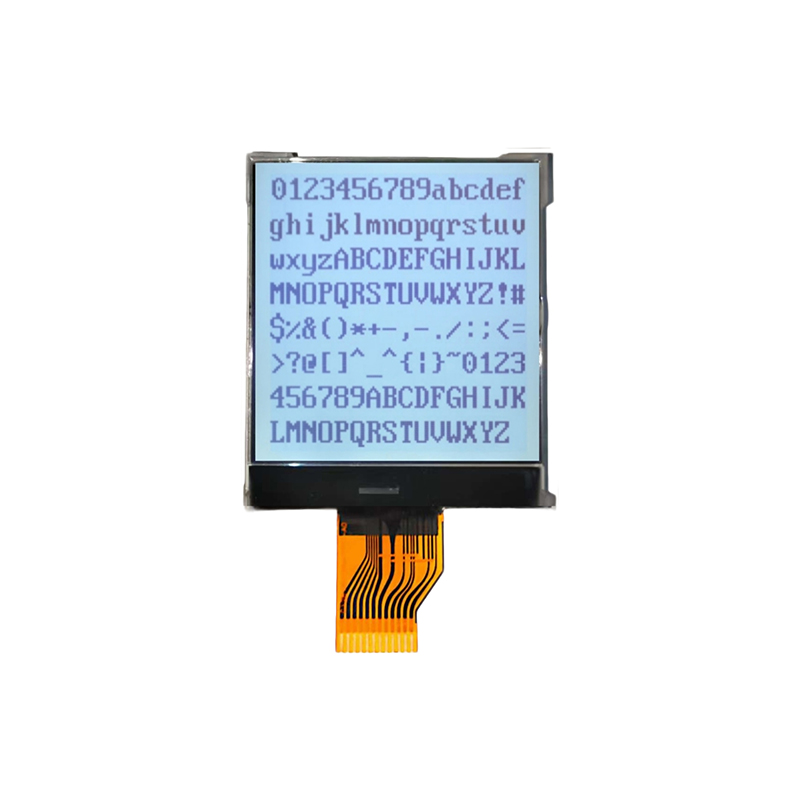

This product is a 128128 LCD dot matrix display that can display graphics with 128 columns x 128 rows of pixels. The display uses FSTN mode, displays blue and black characters on a gray background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is light and thin with low power consumption. It is connected to the main control MCU through the SPI interface or 8-bit parallel LCD interface to display various images and texts.
