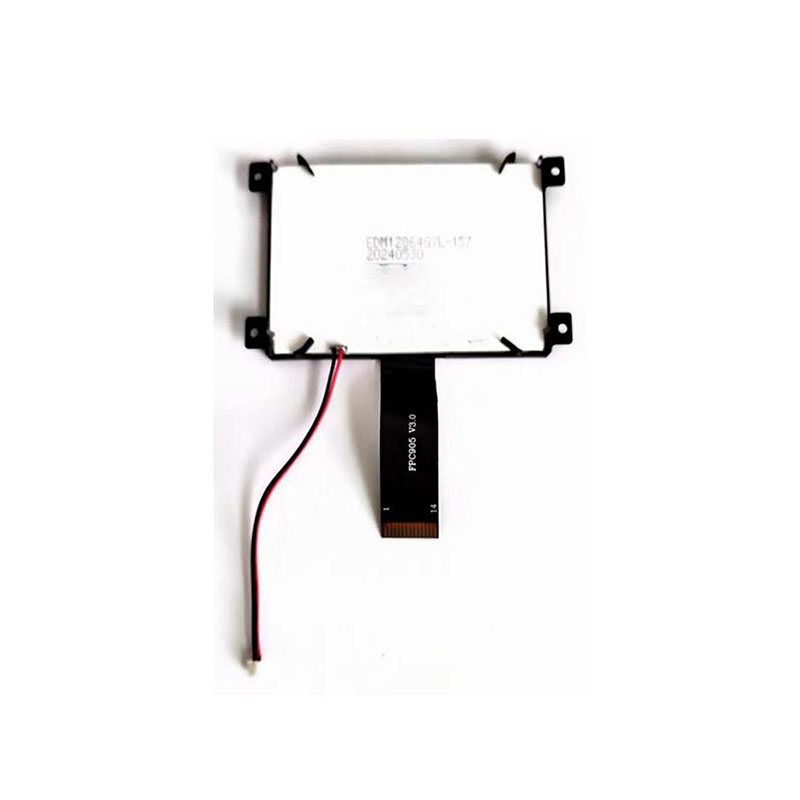

This product is a 12864 LCD dot matrix display capable of showing graphics of 128 columns × 64 rows of pixels. The display uses an STN mode LED-backlit LCD, featuring black characters on a yellow-green background, high contrast, and a wide viewing angle. The module includes a built-in driver chip and adopts COG (Chip-on-Glass) manufacturing technology, resulting in a thin, lightweight product with low power consumption and a wide operating temperature range. It connects to a host MCU via an SPI interface and is used to display various images and text. The product comes with a metal frame for easy mounting and fixing.
This product is a 12864 LCD dot matrix display capable of showing graphics of 128 columns × 64 rows of pixels. The display uses an STN mode LED-backlit LCD, featuring black characters on a yellow-green background, high contrast, and a wide viewing angle. The module includes a built-in driver chip and adopts COG (Chip-on-Glass) manufacturing technology, resulting in a thin, lightweight product with low power consumption and a wide operating temperature range. It connects to a host MCU via an SPI interface and is used to display various images and text. The product comes with a metal frame for easy mounting and fixing. Such graphic dot matrix displays are available in resolutions including 122×32, 128×64, 128×128, 144×32, 160×160, 160×32, 160×80, 192×64, 240×64, 240×128, 320×240, etc. Customers can choose different types of LCD backlight and LCD panel combinations according to their product requirements.
| Manufacturer | Eastern?Display |
| Product model | EDM12864-157 |
| Display content | 128x64 dot matrix display |
| Background | Yellow-green |
| Interface | SPI interface |
| Driver chip model | LCD?controller?ST7565R |
| Module type | COG?LCD?Module |
| Connection | FPC |
| Display type | STN LCD，Positive，Transflective |
| Viewing angle | 6 O'clock |
| Operating voltage | 3.3V |
| Backlight type | LED?backlit |
| Backlight color | Yellow-green |
| Operating temperature | -30~80℃ |
| Storage temperature | -40~85℃ |
Keywords：SPI interface/12232 LCD/12832 LCD/1602 LCD/1602 LCD display/1602 LCD display module/19264 LCD/IIC 1602 LCD / 1602 LCD screen/LED backlight/TFT display/custom TFT display/EDC6309FSC2P10A/EDC8657DC3P9/EDC8897HDC2P7A?
The VA segment code COG LCD module, known for its high reliability, superior optical performance, and cost-effectiveness, has become an ideal choice for display systems in small electric vehicles. This custom segment code COG module features a VA LCD screen, which is manufactured using the COG process and integrated with a driver chip. The LCD screen operates in VA mode and is connected to the main MCU via an I2C interface, using FPC (Flexible Printed Circuit) technology. This type of LCD module can be customized according to specific needs, offering high contrast, wide viewing angles, excellent display quality, a broad operating temperature range, low power consumption, a lightweight design, and stable performance.
Product description: Segment LCD is widely used in industrial instruments, industrial...
An HTN LCD is not just a tool for displaying numbers on a banknote counter; it is a critical component for enhancing operational convenience, ensuring reliability, and expanding application value.Compared to early LED segment displays that could only show numbers, a monochrome LCD screen can intuitively display menus, functional statuses (such as smart mode, mixed counting), total amounts, and counterfeit alerts. This makes human-machine interaction more user-friendly and the operation clear at a glance.Segment displays are known for their high contrast, low power consumption (approximately 1-10μA), and a lifespan of up to a decade, making them a perfect fit for office environments. Their display quality is minimally affected by changes in lighting, ensuring they remain clear and reliable even in brightly lit scenarios like banks.
Product description: 7-inch tft display uses automotive-grade LCD and backlight mater...
Diffusion film LCD converts point light source or line light source (such as LED or CCFL) into uniform surface light source to ensure the brightness and color uniformity of LCD display. The light source of LCD motherboard with diffusion film can directly use LED lamp beads to reduce the cost of backlight source, and can also effectively cover the dots or other optical defects on the light guide plate, so that the brightness of LCD display is more uniform.
This product is a 12864 LCD dot matrix display capable of showing graphics with a resolution of 128 columns × 64 rows of pixels. The screen utilizes FSTN technology, featuring a gray background with blue-black characters, offering high contrast and a wide viewing angle. The module incorporates a driver chip and is manufactured using COG (Chip-on-Glass) technology, resulting in a slim, lightweight design with low power consumption. It connects to the main control MCU via an SPI interface or an 8-bit parallel LCD interface, enabling the display of various images and text.
Digital display + intelligent interaction + data-compliant operation are the intuitive hallmarks that distinguish modern electronic balances from traditional mechanical balances. HTN LCD are widely used in various electronic balance products, such as ultra-micro electronic balances, micro electronic balances, semi-micro electronic balances, and analytical balances. They directly display weighing results with clear, unambiguous digits, eliminating reading errors caused by various factors in mechanical balances. Backlit HTN LCD ensure clear visibility even under low-light conditions, improving reading reliability. When electronic balances are connected to printers, computers, and other devices, they can display GLP data reports in real time, which is crucial for establishing a traceable and transparent experimental data management system.
This product is a 12232 LCD dot matrix display capable of rendering graphics at a resolution of 122 columns × 32 rows. The screen employs an STN yellow-green mode LED-backlit LCD, which presents black characters on a yellow-green background, delivering high contrast and wide viewing angles. The module includes an integrated driver chip and is manufactured using COB (Chip-on-Board) technology. It connects to the main control MCU via an 8-bit parallel LCD interface, enabling the display of various images and text.
Backlit LCD segment display: LCD screens in environments with varying brightness levels typically require backlighting. Additionally, LCD products with screen printing and color film effects generally need backlighting support to achieve the desired screen printing results. Both backlighting and LCD screens can be customized for irregular shapes.
Product description: The light source of the translucent LCD segment code LCD screen ...
This 7-inch TFT display is designed for the automotive instrument market, fully utilizing automotive-grade LCD panels and backlight materials. With a brightness of up to 1000 cd/m2, it ensures clear visibility even under direct strong light. It operates reliably across a wide temperature range from -30°C to 85°C and maintains stable performance in complex electromagnetic environments, offering excellent anti-interference capability. It is widely used in the pre-installed instrument market for vehicles such as buses, heavy-duty trucks, and new energy passenger cars.
The VA-type display with glass cover is a high-reliability, high-contrast solution utilizing VA (Vertical Alignment) liquid crystal technology. It features a highly transparent and durable glass cover that supports screen printing of text or graphics. This product combines the superior optical performance of VA liquid crystals with the protective characteristics of glass cover materials, delivering clear and durable visual effects. It is suitable for industrial, medical, home appliance, and automotive electronics applications in harsh environments.
Product description: Reflective LCD is a liquid crystal display technology that uses ...
LCDs for Medical Electronic Infusion Pumps An electronic infusion pump is a precision device widely used in the medical field. Its human-machine interface (HMI) typically utilizes Segment LCDs, Dot Matrix LCDs, or TFT LCDs. Among these, Segment LCDs are the most commonly used in infusion pumps. Segment LCDs offer advantages such as low cost, low power consumption, and high reliability, making them highly suitable for displaying critical parameters like flow rate and volume, which are often numerical values or fixed symbols.
LCD applied to the Rangefinder is the LCD display screen for the lens, which is characterized by small size, high contrast, shock resistance, durability and high environmental adaptability. High display accuracy requirements, to meet the requirements of magnification detection, magnification of 50 times after the display of smooth edges for the burr. The size of the product is small, and special fixtures and equipments are needed for bonding polarizer or chip and FPC crimping.
LCD segment display products are widely used in medical instruments such as blood glucose meters,...
