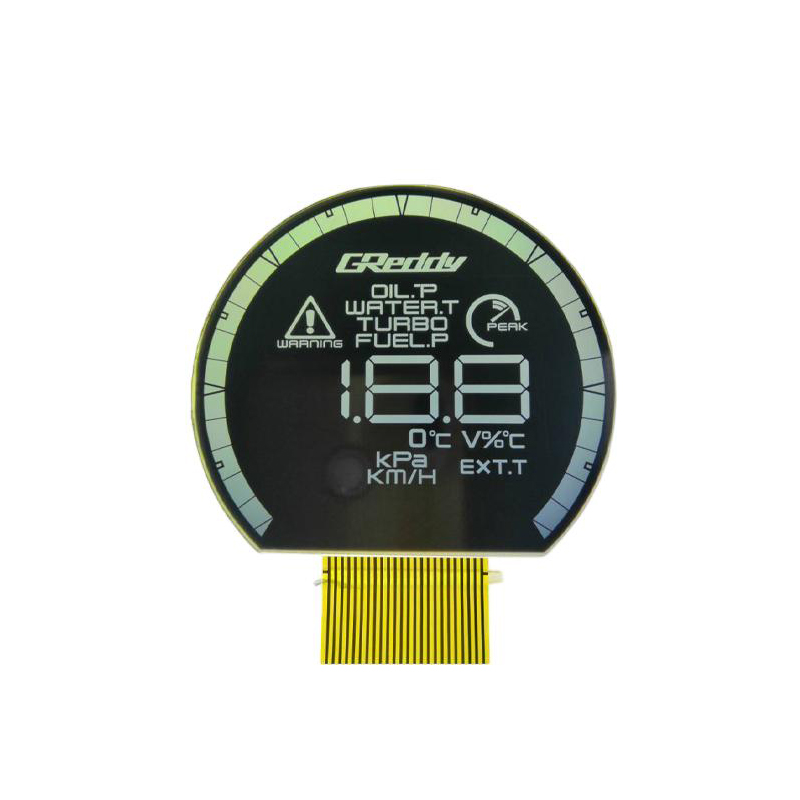

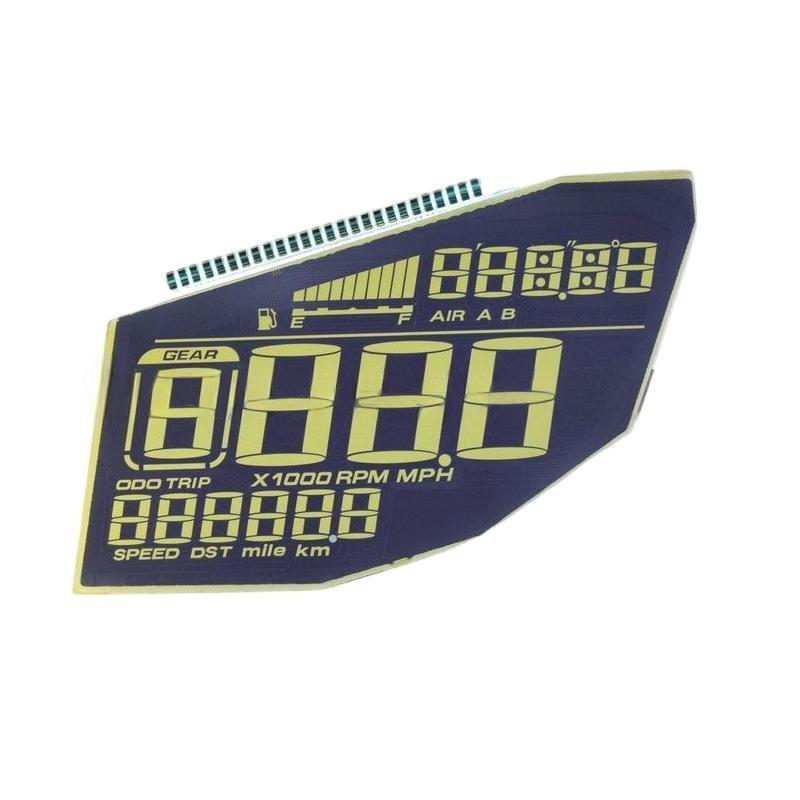

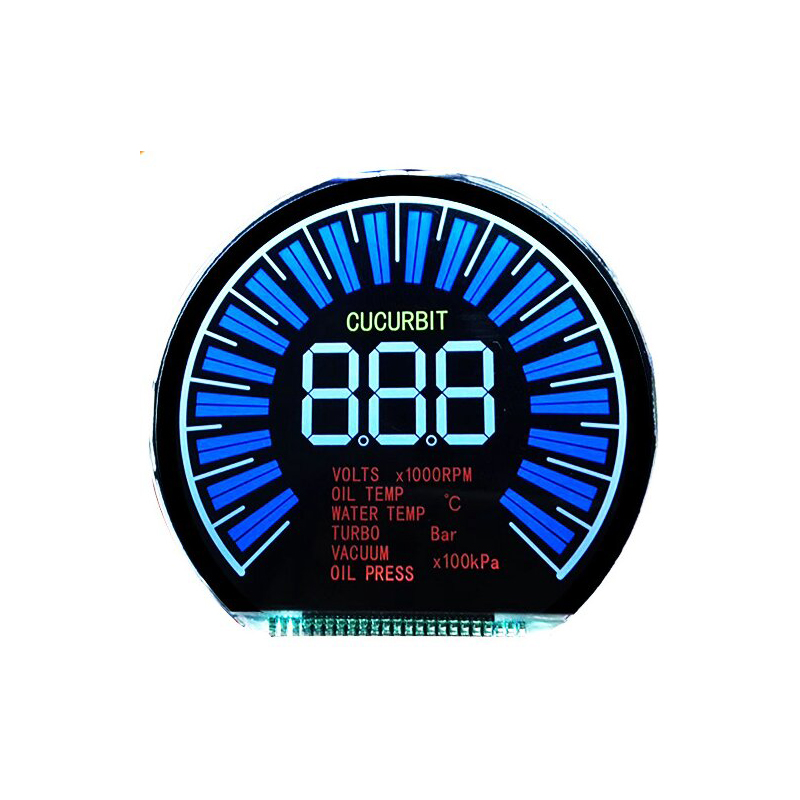

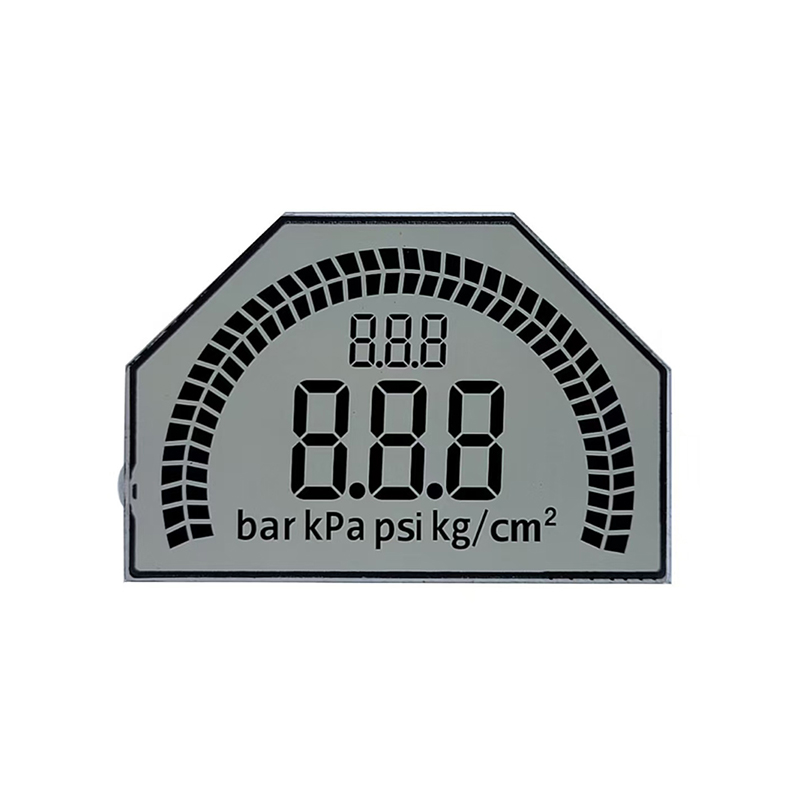

A Non-rectangular LCD is a liquid crystal display that breaks away from traditional rectangular designs. It can be customized into irregular shapes such as circles and polygons according to specific requirements, combining visual appeal with practical functionality. These displays are widely used in industries such as industrial equipment, medical devices, automotive electronics, and smart home appliances.
Non-rectangular LCDs transcend the limitations of standard rectangular screens, supporting customization into various non-standard shapes including circles, arcs, polygons, and trapezoids. This meets both the visual and structural demands of diverse application scenarios. The shaped design optimizes the display area layout, enhancing the screen-to-body ratio and visual impact. It is ideal for products requiring special structural adaptations or pursuing a personalized aesthetic.
The production of Non-rectangular LCDs requires high-precision cutting and grinding technologies to ensure edge smoothness and display consistency across the screen. In terms of performance, Non-rectangular LCDs are comparable to conventional displays, offering excellent environmental adaptability and passing rigorous reliability tests. They meet the quality requirements for industrial equipment, medical instruments, automotive electronics, and home appliances. Furthermore, all products comply with the RoHS 2.0 directive and REACH regulations, supporting both environmental protection and safety assurance.
| Manufacturer | Eastern Display |
| Display mode | VA /TN/HTN/STN?LCD |
| Viewing angle | 6/12 O’ CLOCK |
| Operating voltage | 3.0V ---5.0V |
| Viewing angle range | 120-180° |
| Connection | FPC/PIN |
| Driver chip model | / |
| Backlight type/color | / |
| Operating temperature | -40℃-80℃ |
| Storage temperature | -40℃-85℃ |
| Lifetime | 100000?H |
| Multi-color | YES |
| Special shaped | YES |
| Product features | Non-rectangular LCD |
Keywords：Custom LCD/Tester LCD/LCD display tester/VA LCD/LCD Manufacturer/Low Cost LCD/Serial LCD/Parallel LCD/TN LCD/HTN LCD/STN LCD/FSTN LCD/High contrast LCD

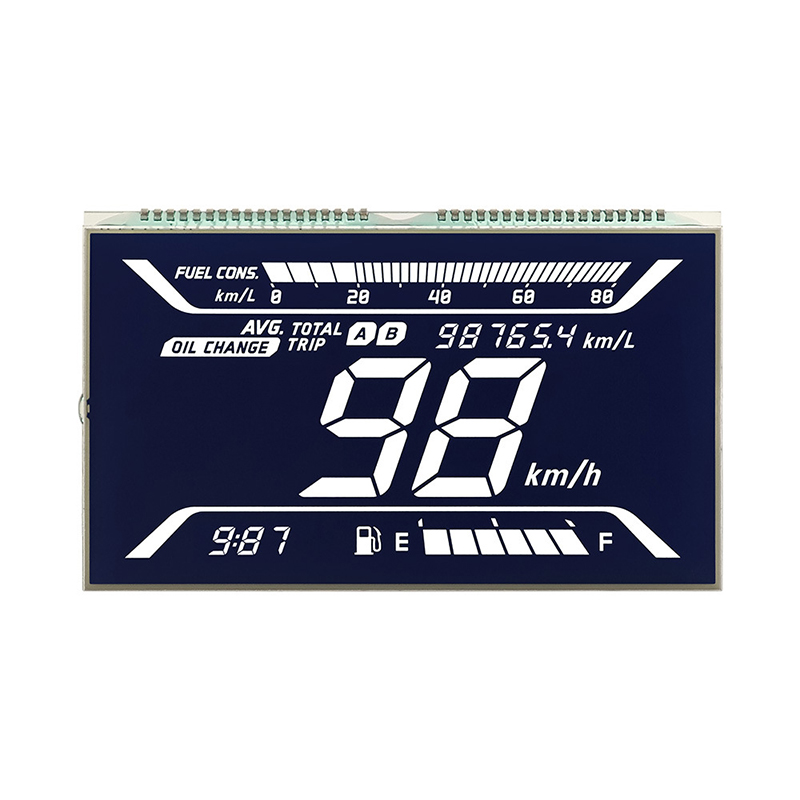

Product description: Ultra-wide temperature LCD segment code screen is a kind of LCD ...
This ultra-compact 0.49-inch Mini OLED display delivers clear, sharp, and high-contrast visuals, making it particularly suitable for space-constrained applications. Featuring wide viewing angles and low power consumption, it is widely used in portable wearable devices, smart accessories, and compact instrument displays. The module supports the I2C interface and offers stable, reliable performance.
LCD Display for Air Purifiers: Essential home air purifiers typically display real-time PM2.5 readings, formaldehyde (HCHO) levels, allergen concentrations, temperature/humidity readings or alerts, wind speed, operating modes, and emergency notifications. Some models feature touch-sensitive LCD interfaces. These devices usually come with backlighting for clear visibility in dim environments and are often equipped with color screen printing and tinted film for enhanced visual clarity.

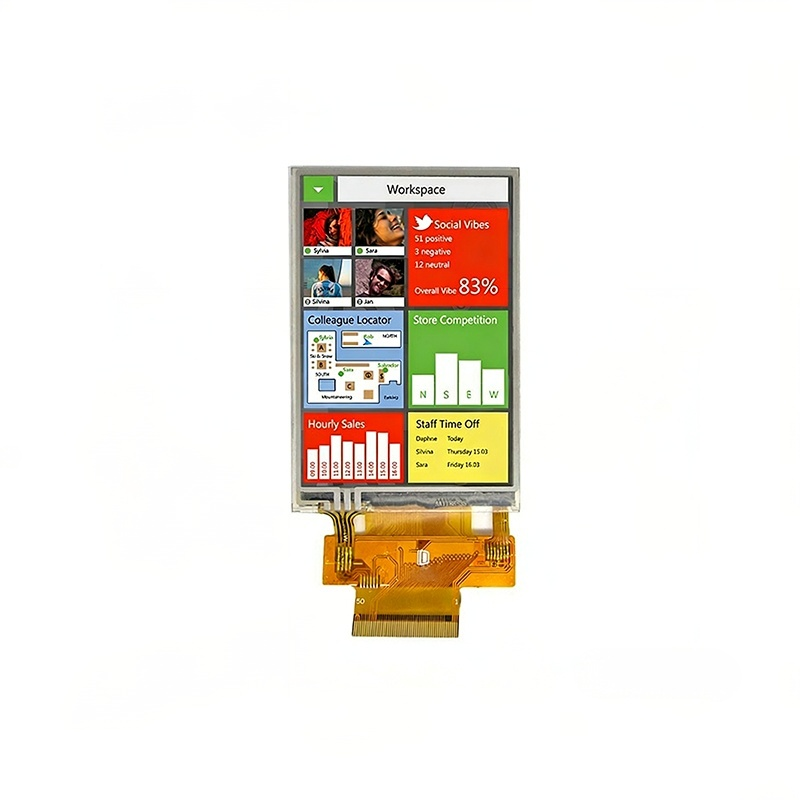

This product is a mini TFT display with a resolution of 320*480. It supports horizontal screen rotation and offers optional MCU or SPI interfaces. As a low-cost TFT display solution, it is widely used in medical centrifuges, smart routers, communication equipment, smart home appliances, handheld instruments, and more.。

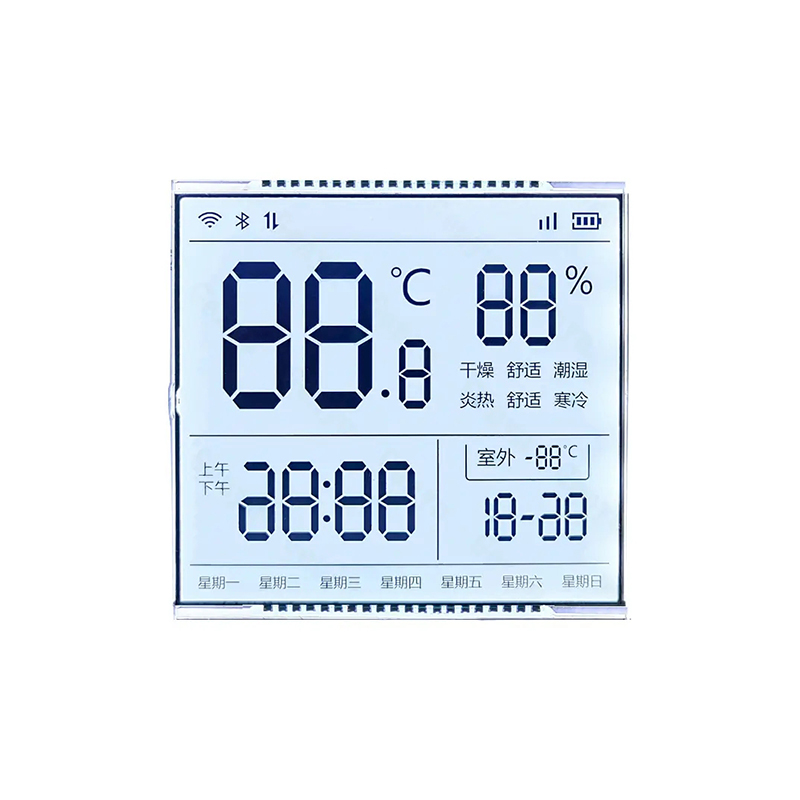

Product description: The light source of the translucent LCD segment code LCD screen ...

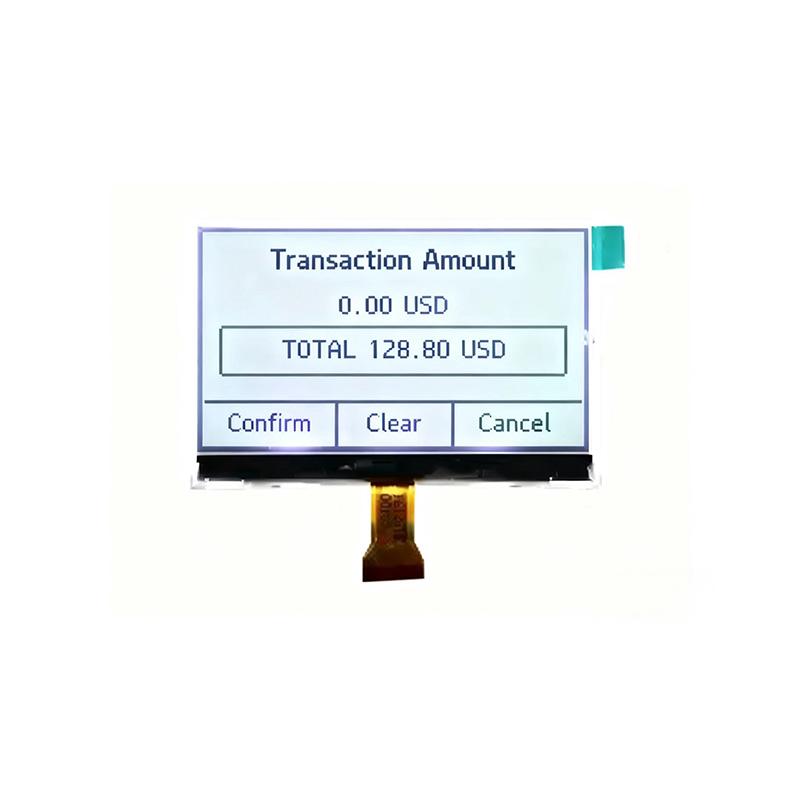

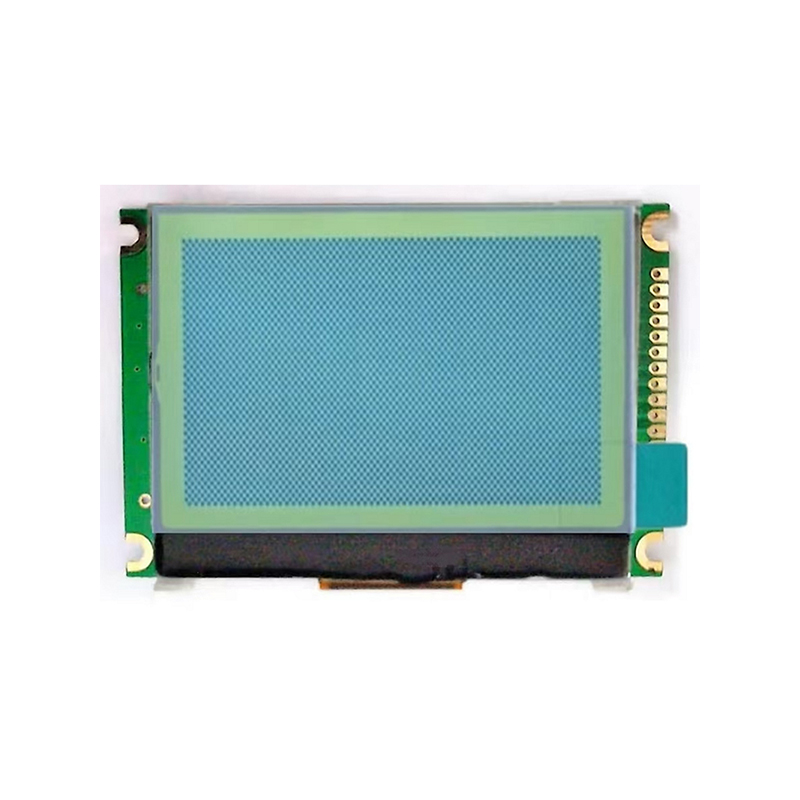

Monochrome dot matrix LCDs in STN and FSTN types, with a resolution of 128×64 or higher, capable of displaying graphics and multiple lines of text. They are widely used in handheld portable terminals like POS machines. These products feature high contrast and wide viewing angles, available in various display modes such as gray background with blue-black characters, yellow-green background with blue-black characters, and blue background with white characters. Utilizing COG (Chip-on-Glass) manufacturing technology, the products are slim, lightweight, and feature low power consumption. The module includes a driver chip and connects to the main MCU via an SPI or I2C interface, offering simple operation, excellent display quality, and stable performance.

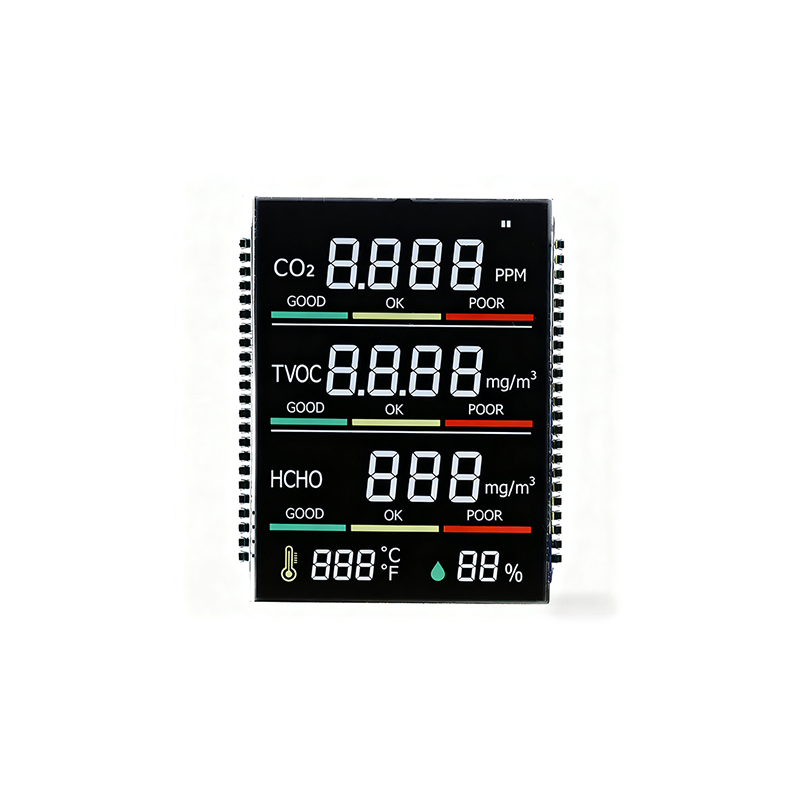

Backlit LCD segment display: LCD screens in environments with varying brightness levels typically require backlighting. Additionally, LCD products with screen printing and color film effects generally need backlighting support to achieve the desired screen printing results. Both backlighting and LCD screens can be customized for irregular shapes.
Product description: Liquid Crystal Light Valve is a technical device that uses the c...
This product is a custom segment code COG module, featuring a VA LCD display. It uses the COG module process and integrates a driver chip. The LCD screen operates in VA mode and is connected to the main MCU via an I2C interface, using FPC for the connection method. This type of liquid crystal display module can be customized as needed, offering high contrast, wide viewing angles, excellent display quality, a wide operating temperature range, low power consumption, a lightweight and thin design, and stable performance.

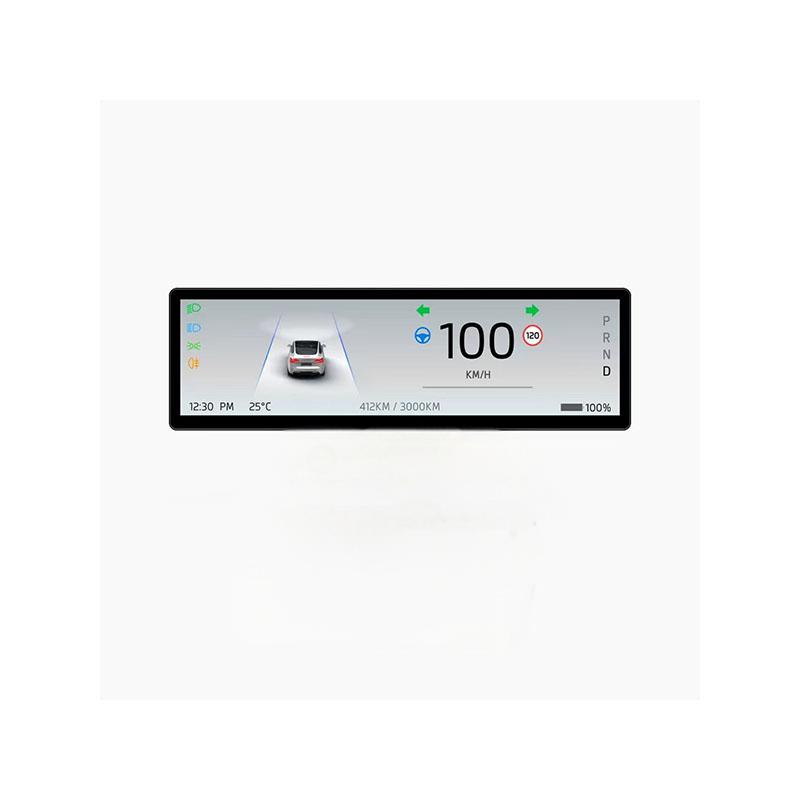

This product is a large-size dashboard TFT screen, featuring an IPS full-viewing-angle panel and LED backlight with 800 cd/m2 brightness, ensuring clear visibility even in strong light environments. It supports a wide operating temperature range of -30℃ to 85℃. A capacitive touch panel and tempered cover glass can be laminated according to customer requirements. It offers clear display performance and meets the stringent demands of automotive application environments. It is widely used in new energy vehicle dashboards, robot displays, smart home appliances, and other fields.

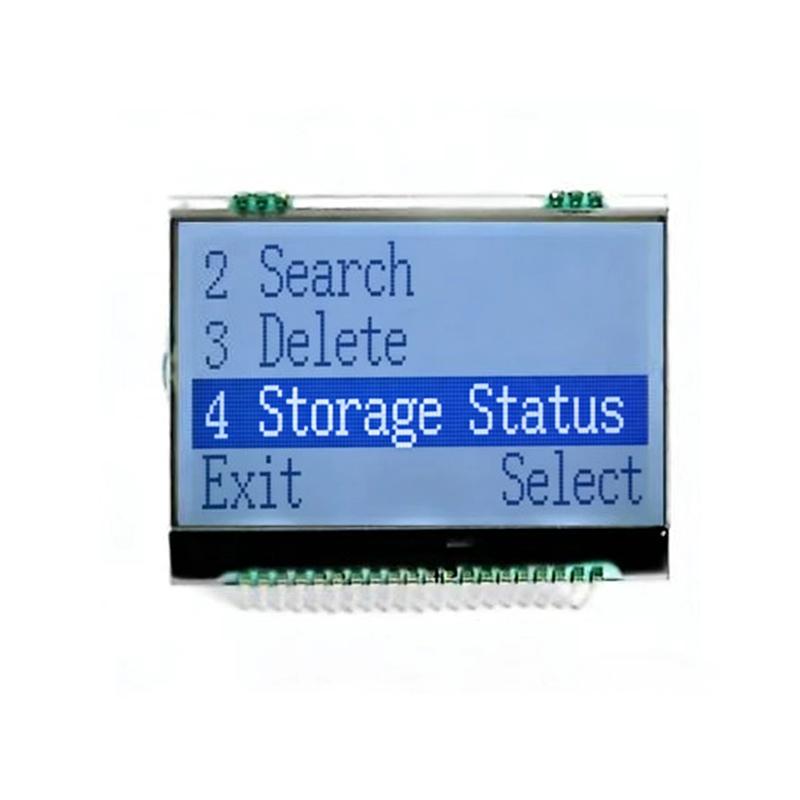

This product is a 12864 LCD dot matrix display capable of rendering graphics with 128 columns and 64 rows of pixels. The display utilizes FSTN mode, featuring blue-black characters on a gray background, high contrast, and a wide viewing angle. The module integrates a driver chip and adopts COG production technology, resulting in a lightweight, slim design with low power consumption. It connects to the main control MCU via an SPI interface and is used to display various images and text.

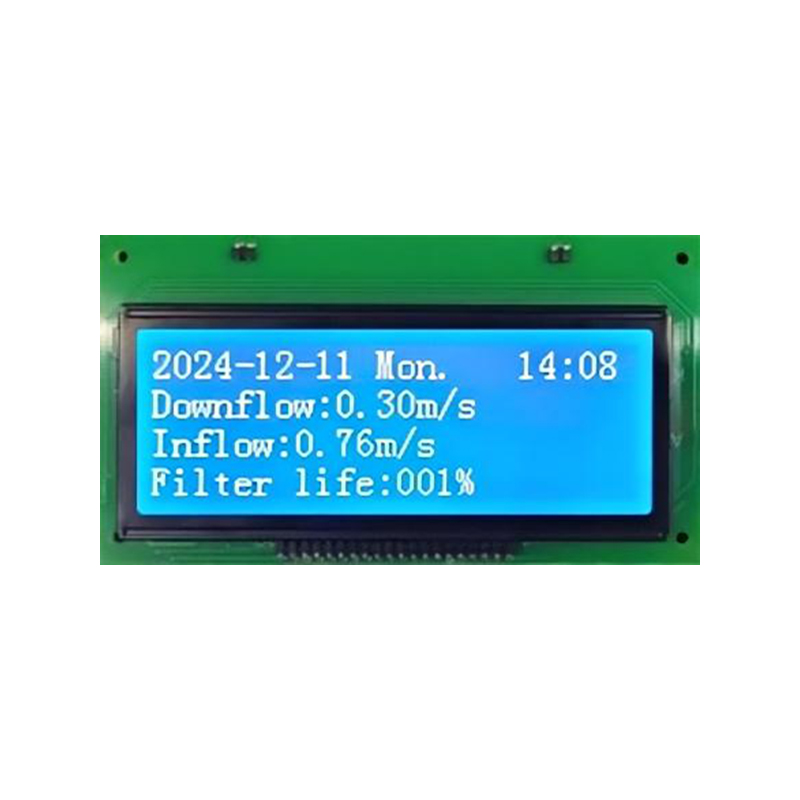

Monochrome LCD screens in biosafety cabinets and medical transport cabinets are designed to monitor equipment status, display operational parameters, and support user interaction while meeting the specific requirements of biosafety environments. VA segment displays feature high contrast, wide viewing angles, and a broad temperature range, featuring fixed color icons (e.g., fans, alarm symbols) and numerical parameters. 192×64 dot matrix screens with STN negative display mode offer high contrast and wide viewing angles, supporting simple graphics (e.g., airflow diagrams) and multi-line text. These monochrome LCD screens prioritize functionality, reliability, and cost control in biosafety cabinets, making them suitable for mid-to-low-end models or scenarios where color accuracy is not critical.
Product description: TN LCD is widely used in industrial instruments, industrial cont...
LCD Manufacturer/STN LCD/custom segment display/LCD display screen

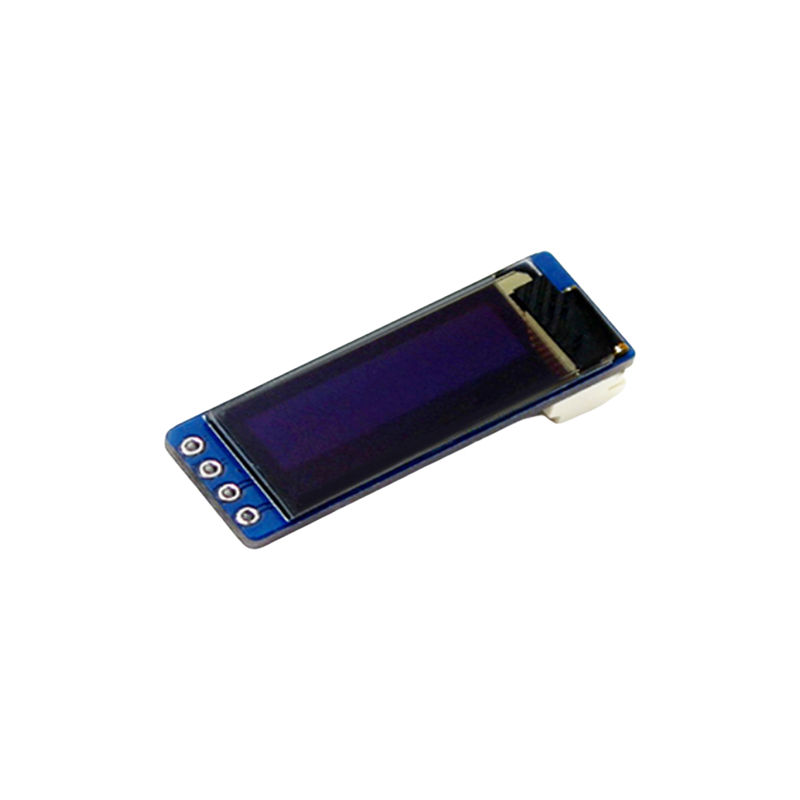

This product is a mini OLED display with a resolution of 128×32 pixels, an I2C interface, and a brightness of 150cd/m2. It operates within a temperature range of-40℃ to 70℃ and features ultra-low power consumption, high contrast, and a wide viewing angle. The display content is clear and prominent. It is widely used in applications such as pulse oximeters, paint film testers, flow meters, gas detectors, and temperature and humidity monitors.

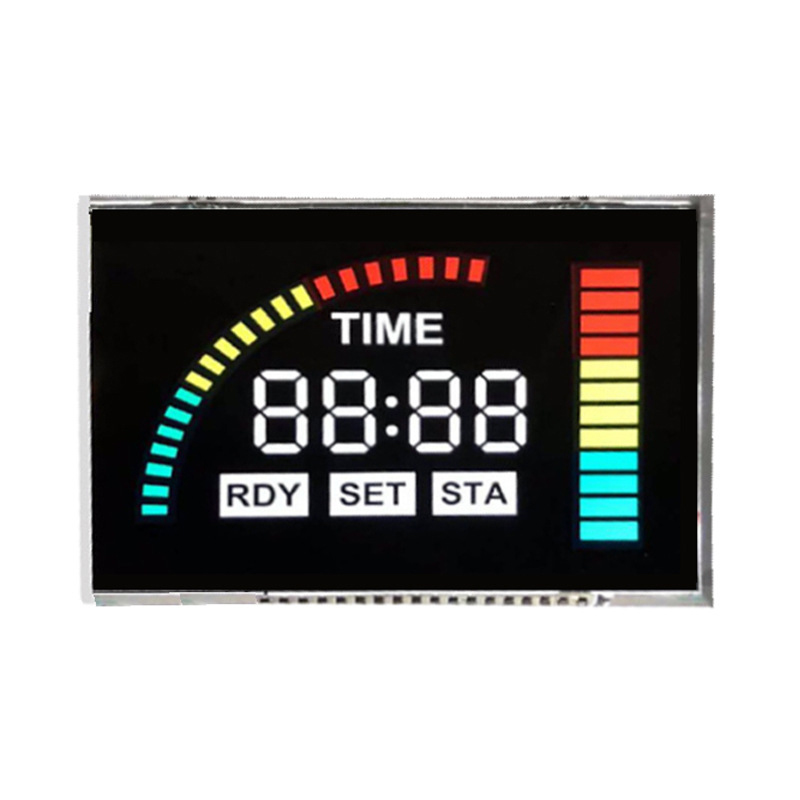

VA LCD products are suitable for gas water heaters, including storage water heaters and combi condensing boilers. They feature high contrast, wide viewing angles, color and gradient display capabilities, an ultra-wide operating temperature range (-40°C to 80°C), and low driving costs. With custom segment displays, a mechanical device hidden in the kitchen or balcony is transformed into a smart home appliance that is communicative, controllable, and trustworthy. It not only enhances convenience and comfort in use but, more importantly, through transparent information delivery and precise fault alerts, becomes a critical proactive line of defense in the household gas safety system.
