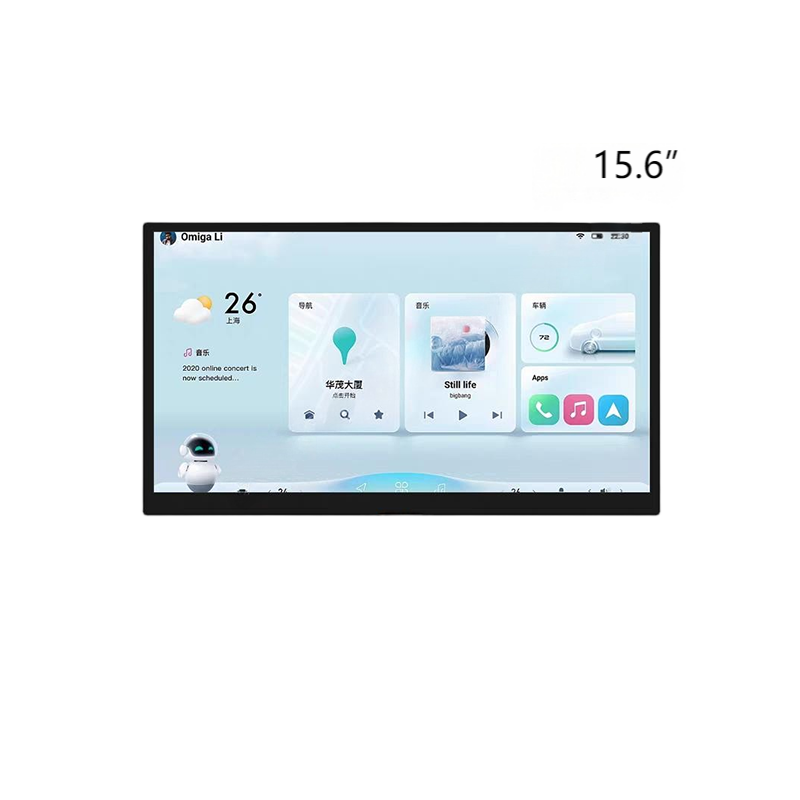

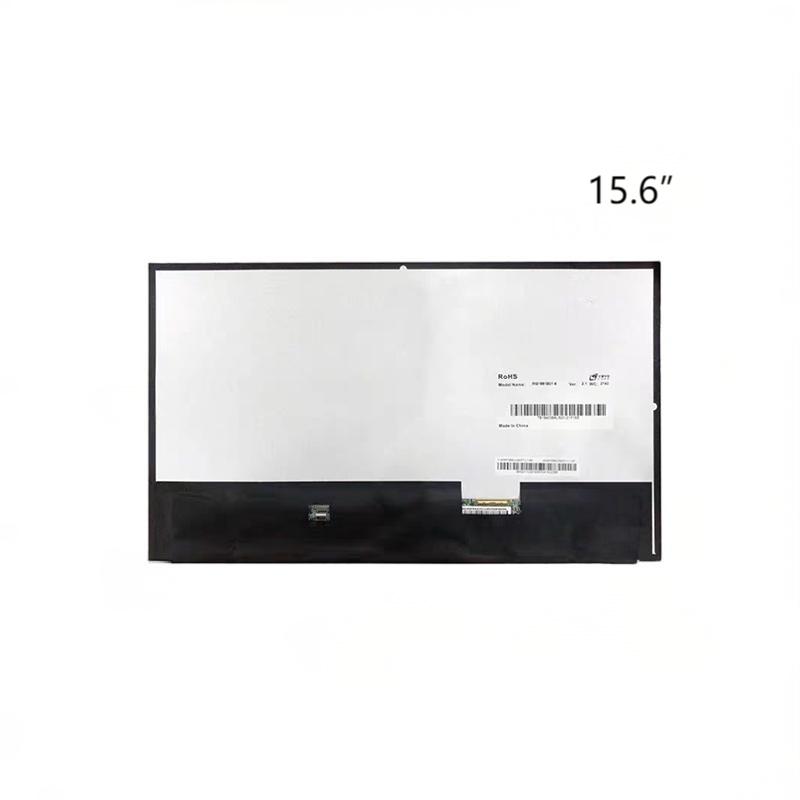

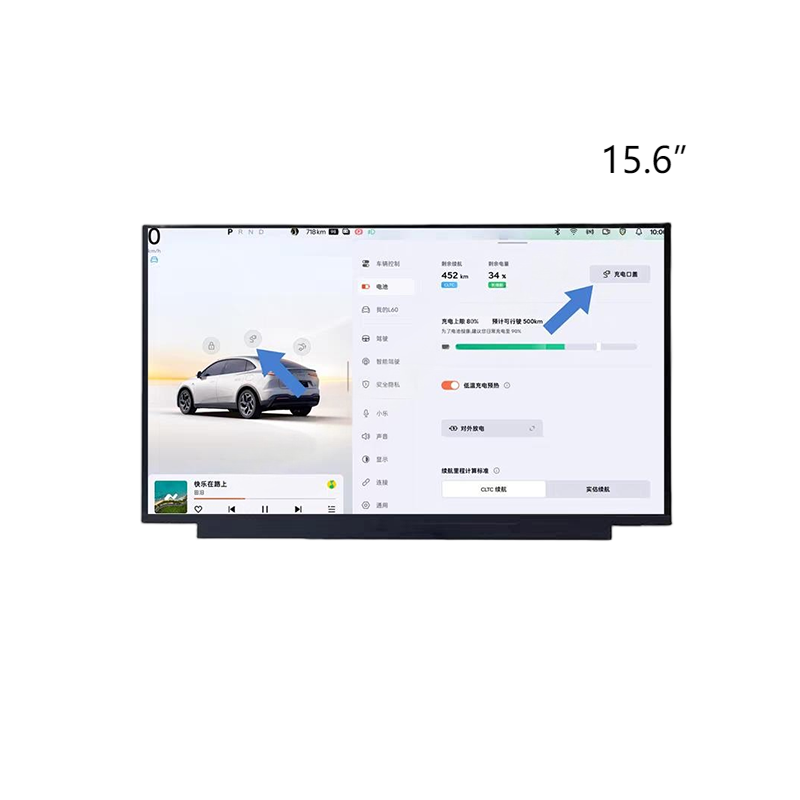

15.6-inch Automotive Central Display,Featuring a 1920×1080 Full HD resolution and a high brightness of 1000 cd/m2, this 15.6-inch automotive central display incorporates advanced In-Cell touch technology, which enables a thinner module and superior display clarity. With an operating temperature range of -30℃ to 85℃ and a standard LVDS interface, it is compatible with mainstream automotive-grade SoC platforms. The display has successfully passed automotive-grade reliability tests including thermal shock, high-temperature/high-humidity, vibration, and EMC, and has been mass-produced in multiple vehicle models. It helps reduce product validation risks and accelerate time-to-market.
EASTERN DISPLAY ─ Your Global Display Solutions Expert
? Trusted by Multinational Clients
We serve clients across 20+ countries including China, Germany, the USA, and Poland, having delivered 1,000+ customized TFT display solutions.
? Stringent Environmental Standards
All products comply with RoHS/REACH certifications.
? Precise Adaptation Capability
We offer a full-size range from 2.0" to 15.6", with resolutions selectable from 240×320 up to 1920×1080.
? Customization Services Available
We provide tailored solutions including:
1,Backlight brightness
2,Cover glass thickness and shape customization
3,Cover glass treatments: AR/AG/AF coating & tempering
4,OCA full lamination
5,TFT metal enclosures
6,Optional RTP/CTP (Resistive/Capacitive Touch Panel)
7,Optional IP65 protection rating
| Manufacturer | Eastern Display |
| Product model | EDT156LSANX-30 |
| Resolution | 1920*1080 |
| Interface | LVDS |
| Driver chip | |
| Connection | FPC |
| Display type | 16.7M color TFT display |
| Viewing angle | Free |
| Operating voltage | 3.3V |
| Backlight type | LED backlight |
| Backlight brightness | 1000cd/m2 |
| Operating temperature | -30-85℃ |
| Storage temperature | -40-90℃ |
| Cover | Customized services such as AF/AG/AR |
| Lifetime | 50000H |
