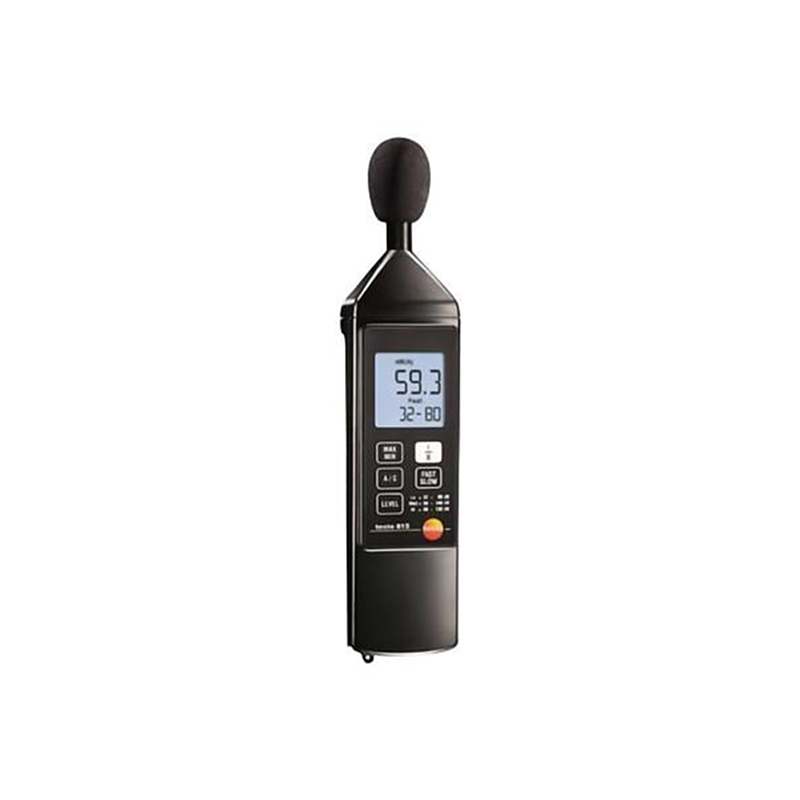

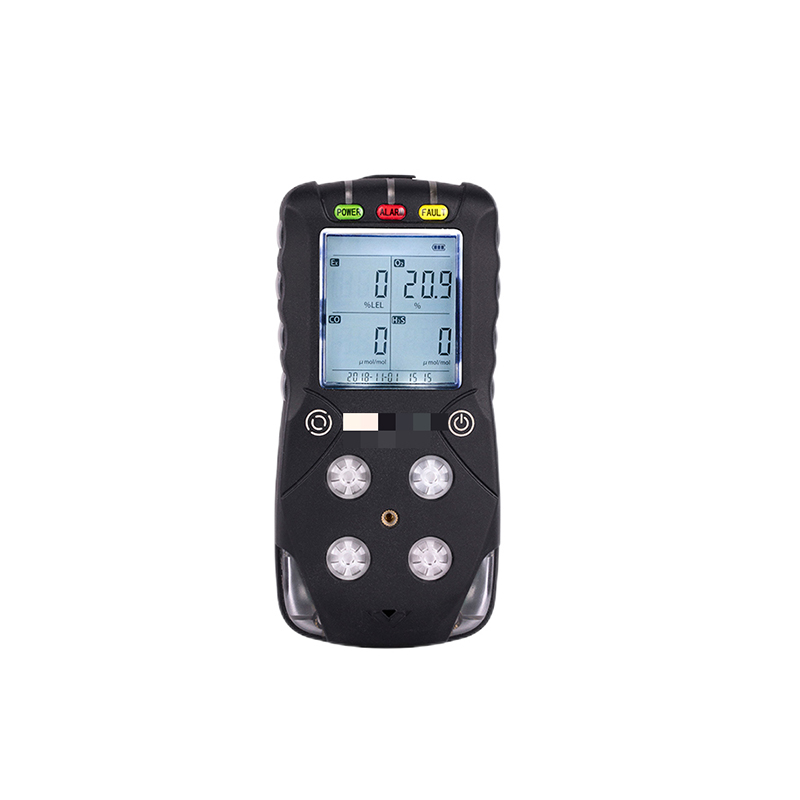

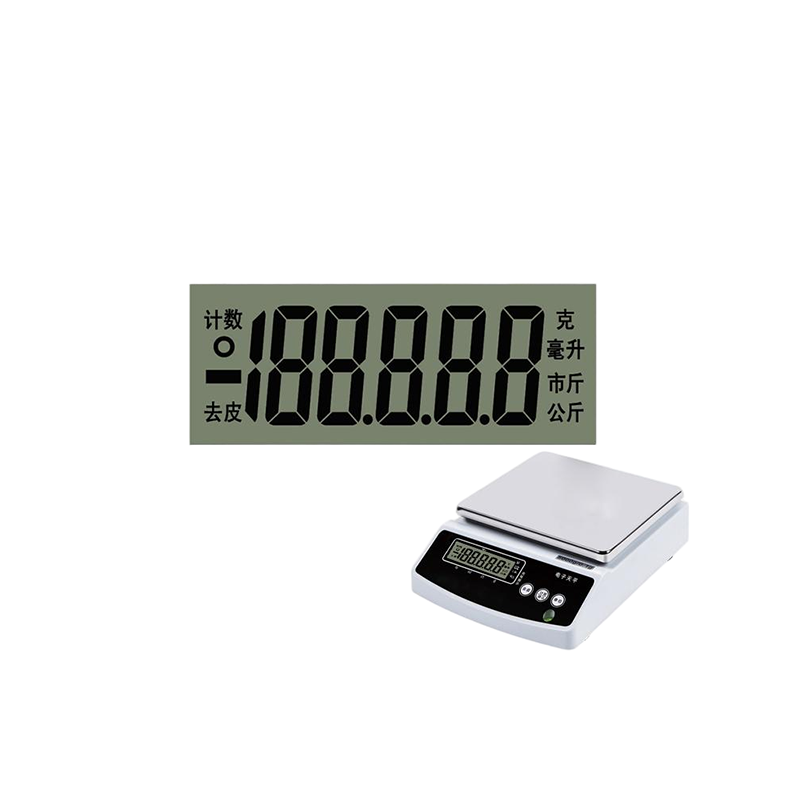

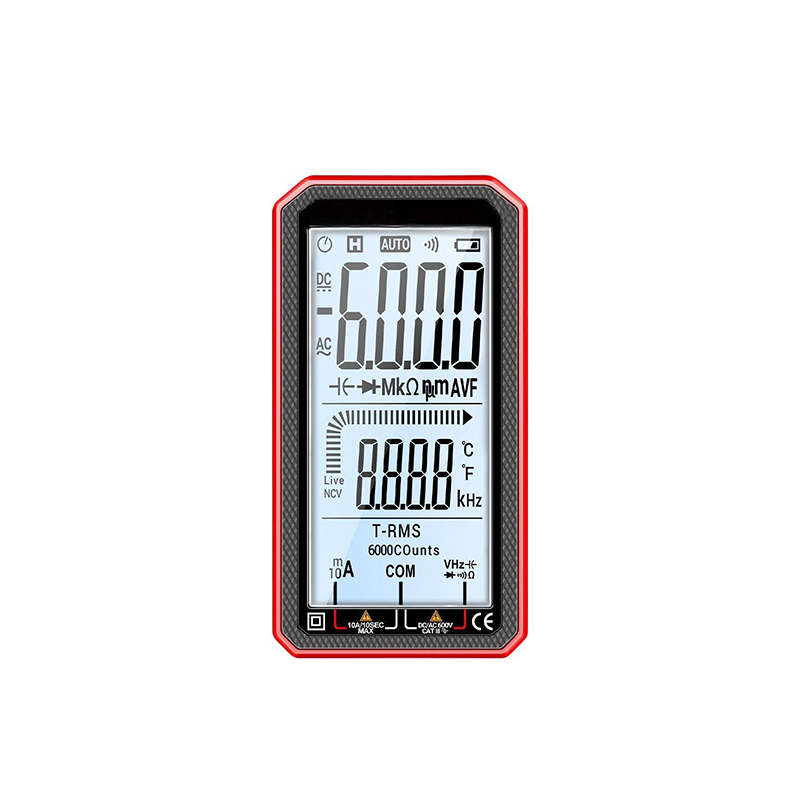

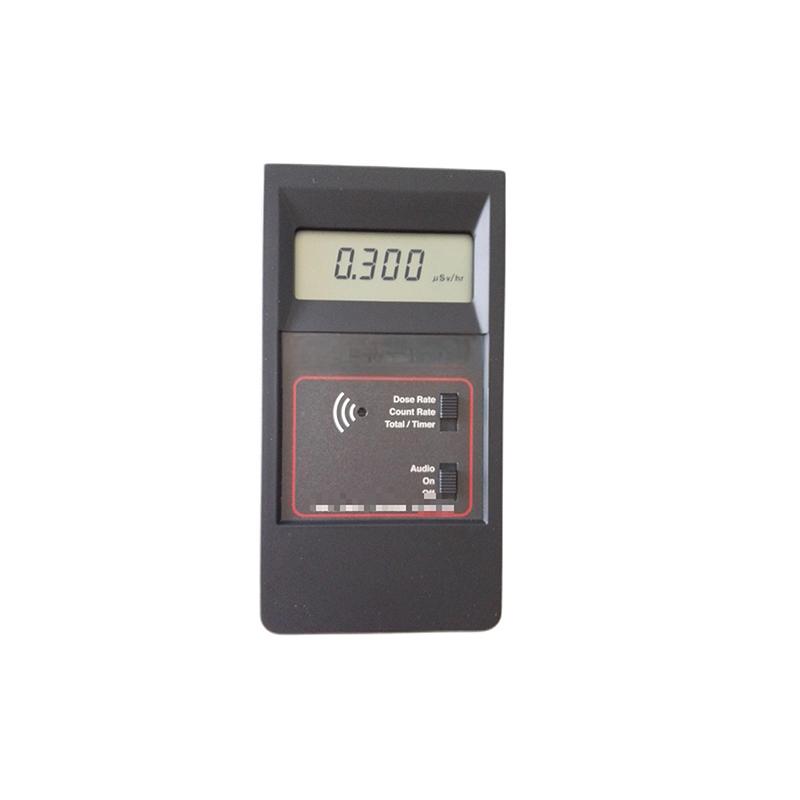

TN LCD plays a stable, efficient, and reliable role as a core display solution in the industrial instrumentation field. It presents key parameters such as voltage, current, temperature, flow rate, and equipment operating status in real time, providing clear and intuitive information output for measuring instruments, PLC, power monitoring devices, and more. Its core value lies in its ultra-wide operating temperature range (-30°C to +80°C), microampere-level power consumption, extremely low drive cost, and high reliability enabled by passive matrix architecture, making it perfectly suited for demanding industrial environments requiring 24/7 continuous operation, strong electromagnetic interference resistance, outdoor strong light readability, and battery-powered applications. Typical applications include multimeter, electronic scales, PLC and industrial control panels, energy meters and generator controllers, as well as portable environmental devices such as gas detectors. With exceptional environmental adaptability, long service life, and high cost effectiveness, TN LCD stands as a cornerstone choice for industrial instrumentation display solutions.
EASTERN DISPLAY provides thousands of custom segment displays to customers in North America, Europe, East Asia, and other regions. With annual shipments of over ten million TN LCD units, this product line is our core competitive offering in the market. We have accumulated extensive technical expertise in product design, key parameters, and application support. EASTERN DISPLAY is able to consistently deliver high quality, cost effective TN LCD displays to our customers.
| Manufacturer | Eastern?Display |
| Display mode | TN ?LCD |
| Viewing angle | 6/12 O’ CLOCK |
| Operating voltage | 3.0-5.0V |
| Viewing angle range | 90-120° |
| Connection | ZEBRA/PIN/FPC |
| Driver chip model | / |
| Backlight type/color | / |
| Operating temperature | -40℃-85℃ |
| Storage temperature | -40℃-90℃ |
| Lifetime | 100,000?H |
| Multi-color | YES |
| Special shaped | YES |
| Product features | Efficient and reliable |
