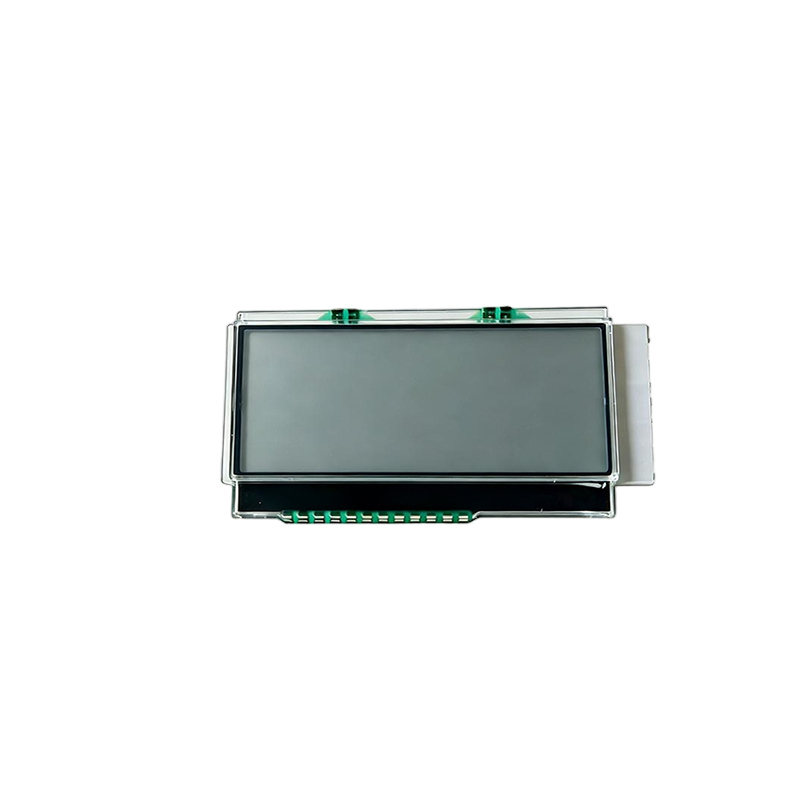

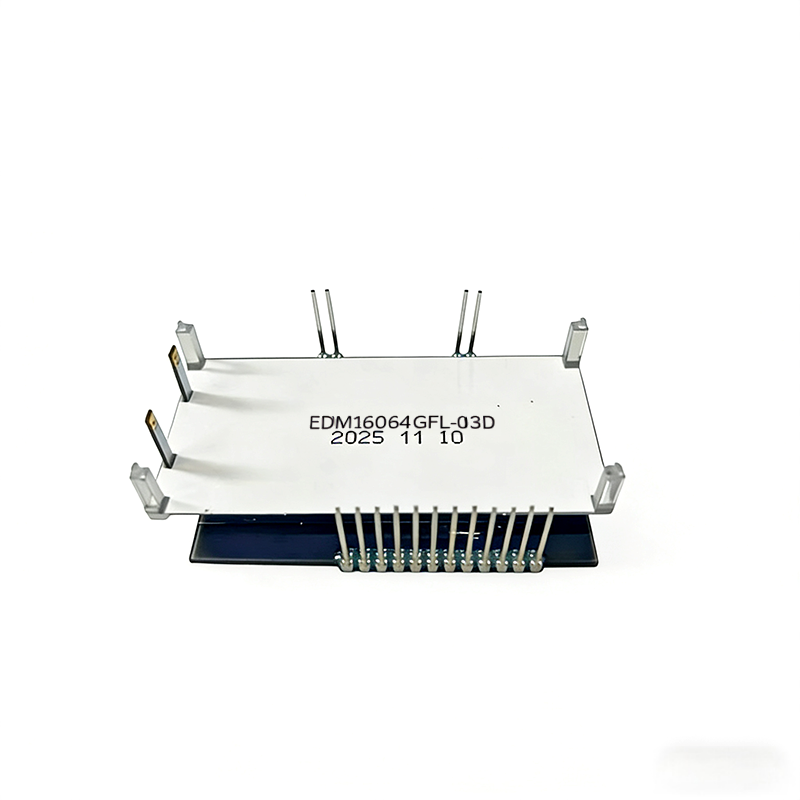

This product is a 16064 LCD dot matrix display capable of displaying graphics of 160 columns× 64 rows of pixels. The display uses an FSTN mode LCD, showing gray background with black characters, high contrast, wide viewing angle, and can be equipped with an LED backlight. The module includes a driver chip, adopts COG (Chip-on-Glass) manufacturing process, and features thin and light product, low power consumption, and can operate at ultra-low temperatures. It connects to the host MCU via an I2C interface and is used to display various images and text.
This product is a 16064 LCD dot matrix display capable of displaying graphics of 160 columns × 64 rows of pixels. The display uses an FSTN mode LCD, showing gray background with black characters, high contrast, wide viewing angle, and can be equipped with an LED backlight. The module includes a driver chip, adopts COG (Chip-on-Glass) manufacturing process, and features thin and light product, low power consumption, and can operate at ultra-low temperatures. It connects to the host MCU via an I2C interface and is used to display various images and text. This type of graphic dot matrix display is also available in resolutions such as 122×32, 128×64, 128×128, 144×32, 160×160, 160×32, 160×80, 192×64, 240×64, 240×128, 320×240, etc. Customers can choose different combinations of LCD backlight and LCD panel types according to their product requirements, and customization is also available.
| Manufacturer | Eastern?Display |
| Product model | EDM16064-03 |
| Display content | 160x64 dot matrix display |
| Background | Gray |
| Interface | I2C interface |
| Driver chip model | LCD?controller??ST75263S |
| Module type | COG?LCD?Module |
| Connection | PIN |
| Display type | FSTN LCD，Positive，Transflective |
| Viewing angle | 10:30 O'clock |
| Operating voltage | 3.0V |
| Backlight type | LED?backlit |
| Backlight color | White |
| Operating temperature | -40~70℃ |
| Storage temperature | -40~85℃ |
