Product description: HTN LCD products have high contrast, wide viewing angle, clear display content at all angles, ultra-wide operating temperature (-40℃~80℃) and low driving cost. HTN LCD is used in mid-to-high-end home appliances, air conditioning controllers, washing machines, refrigerators and other products of brands such as Panasonic, LG, Haier, and Midea. EASTERN DISPLAY provides more than 100 customized monochrome LCD display screens for white appliances to customers in Japan, South Korea, and China. The cumulative number of products supplied exceeds one million. We have rich technical accumulation in product design, core parameters and product demand concerns. We can provide ...
HTN LCD products have high contrast, wide viewing angle, clear display content at all angles, ultra-wide operating temperature (-40℃~80℃) and low driving cost. HTN LCD is used in mid-to-high-end home appliances, air conditioning controllers, washing machines, refrigerators and other products of brands such as Panasonic, LG, Haier, and Midea.
EASTERN DISPLAY provides more than 100 customized monochrome LCD display screens for white appliances to customers in Japan, South Korea, and China. The cumulative number of products supplied exceeds one million. We have rich technical accumulation in product design, core parameters and product demand concerns. We can provide customers with high-quality, cost-effective LCD display screens in a continuous and stable manner.
| Manufacturer | EASTERN DISPLAY |
| Display type | HTN LCD/Negative |
| Viewing angle | 6/12 0’?CLOCK ?(custom made) |
| Operating voltage | 3.0V ---5.0V (custom made) |
| Backlight type | (custom made) |
| Backlight color | (custom made) |
| Operating temperature | -40℃-70℃(custom made) |
| Storage temperature | -40℃-80℃(custom made) |
| Display life | 100000-200000hours（custom made） |
| ROHS standard | YES |
| REACH standard | YES |

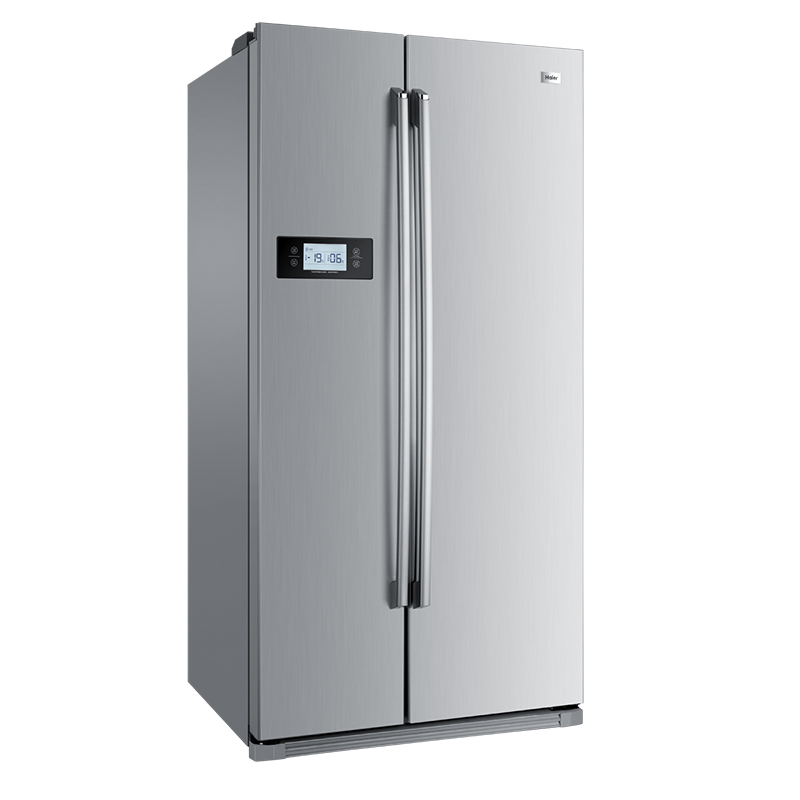

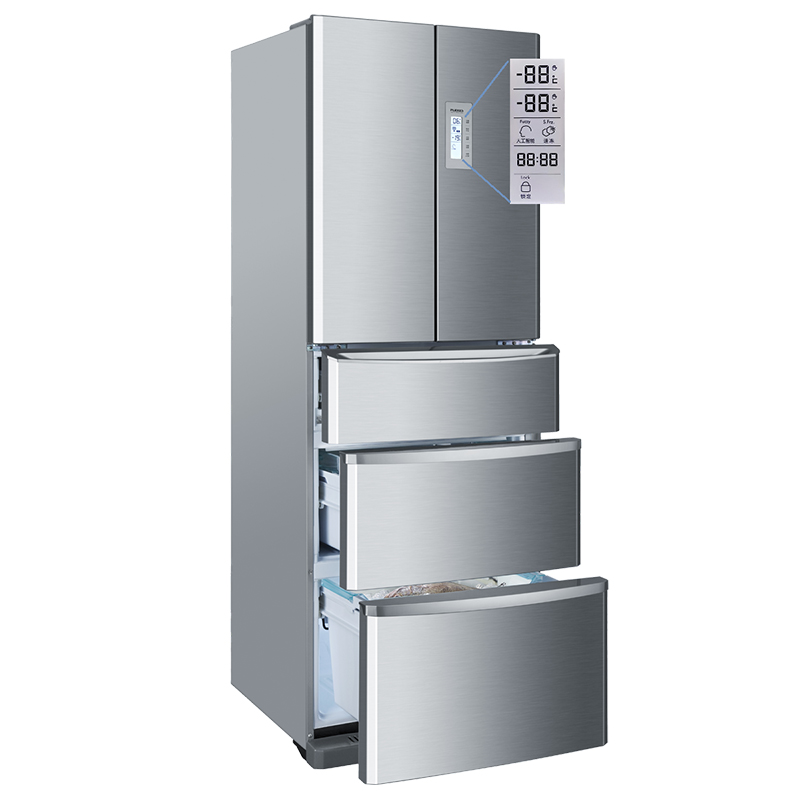

| Applicable fields and scenarios | Home refrigerators, commercial refrigerators, etc. High contrast, ultra-wide operating temperature |
| Product features | Home refrigerators, commercial refrigerators, etc. High contrast, ultra-wide operating temperature |
| Keywords：LCD segment display/custom LCD display/LCD screen/small LCD display/LCD display price/custom segment display/LCD glass/LCD display/LCD display panel/Low power LCD | |
Vehicle-mounted LCD displays require exceptional electrostatic discharge (ESD) resistance. Given the complex and dynamic automotive environment, electrostatic discharge (ESD) remains a primary cause of electronic component failures. The anti-static standards for automotive displays are exceptionally stringent, far exceeding those of consumer electronics. Common contact discharge levels typically range from ±4kV, ±6kV, and ±8kV, while airborne discharge levels generally exceed ±8kV, ±15kV, and ±25kV Core requirements: clear, stable, reliable, low power consumption.
vertical Alignment LCD achieves an ideal balance among display performance, manufacturing cost, and power consumption, thoroughly addressing the traditional pain points of poor visibility, narrow viewing angles, and outdated aesthetics. Its deep black background paired with bright white or colored characters delivers a premium “all-black when off, crystal-clear when on” appearance, while near-full viewing angles ensure that all information—such as remaining time and temperature—is easily visible from any perspective in the kitchen. Moreover, its ultra-low power consumption perfectly suits the long-term standby requirements of appliances like rice cookers, and as a mature industrial technology, its mold development costs and lead times effectively control mass production expenses. As a result, this display solution enhances modern aesthetics while precisely aligning with the minimalist design trends prevalent in today’s home appliances.
This product is a 240160 LCD dot matrix display that can display graphics with 240 columns x 160 rows of pixels. The display uses FSTN mode LED backlit LCD, which displays blue and black characters on a gray background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is light and thin with low power consumption. It is connected to the main control MCU through the I2C interface and is used to display various images and texts.
This product is a 240128 LCD dot matrix display that can display graphics with 240 columns x 128 rows of pixels. The display uses STN yellow-green mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip, adopts COB and SMT production processes, and is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts.
This product is a mini TFT display with a resolution of 320*480. It supports horizontal screen rotation and offers optional MCU or SPI interfaces. As a low-cost TFT display solution, it is widely used in medical centrifuges, smart routers, communication equipment, smart home appliances, handheld instruments, and more.。
This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses STN yellow-green mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip, adopts COB production technology, and is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts. The internal compensation circuit enables the module to achieve good display effects even when used in a wide temperature range.
This mini OLED display features a 128×64 resolution and supports multiple interface options including I2C/spi serial ports. With a luminance of 220cd/m2 and an operating temperature range of-40℃ to 70℃, it delivers ultra-low power consumption, high contrast ratio, and wide viewing angles. The display ensures clear and eye-catching visuals, making it ideal for applications such as flow meters, gas detectors, and fire safety monitoring systems.
VA LCD products are widely used in outdoor portable power solutions such as portable energy storage systems, household energy storage units, and RV power systems. The LCD screen digitally and accurately displays real-time parameters including power levels and wattage, interface status, safety alerts, charge-discharge management, and power consumption analysis. It serves as a key component in outdoor portable power products for visually presenting functions such as electricity usage planning, operational status, fault warnings, and power distribution. Furthermore, compared to TFT products, LCD segment displays offer significant cost advantages. The black background of VA LCDs also effectively supports the visually integrated design of portable power products.
This product is a 12864 LCD dot matrix display capable of displaying graphics with a resolution of 128 columns x 64 rows of pixels. The display utilizes an STN mode with an amber LED backlit LCD, presenting amber background with black characters, achieving high contrast and a wide viewing angle. The module contains a dedicated driver chip, adopts COB production technology, and connects to the master MCU via an 8-bit parallel LCD interface for displaying various images and text. The internal compensation circuit ensures excellent display performance even under wide temperature conditions.
HTN LCD are widely used in various types of dispensing equipment, includingLNG 、dispenserfuel dispensers、special fluid dispensers、 self-sustaining pump dispensers、submersible pump dispensers、 self-service dispensers、and pre-set dispensers. Segment displays provide an intelligent presentation of core fueling information areas, status and prompt zones, and operator interfaces. For a fuel dispenser, an LCD is far more than just a simple “digital display”—it serves as a central interactive hub connecting the gas station, customers, payment systems, and backend management. It transforms a mechanical fluid-dispensing process into a digitized, information-enabled, and interactive modern commercial service environment.
This product is an LCD 16×2 character dot matrix display module designed for ASCII character display, featuring 2 rows with 16 characters per row. The display utilizes an FSTN mode LED backlit LCD, showing blue-black characters on a gray background with high contrast and a wide viewing angle. The module includes a built-in character driver chip and is manufactured using COG technology, making it thin, lightweight, and energy-efficient. It connects to the main MCU via an SPI interface or an 8-bit parallel LCD interface.
Product description: 7-inch tft display uses automotive-grade LCD and backlight mater...
LCD applied to the Rangefinder is the LCD display screen for the lens, which is characterized by small size, high contrast, shock resistance, durability and high environmental adaptability. High display accuracy requirements, to meet the requirements of magnification detection, magnification of 50 times after the display of smooth edges for the burr. The size of the product is small, and special fixtures and equipments are needed for bonding polarizer or chip and FPC crimping.
The VA segment code COG LCD module, known for its high reliability, superior optical performance, and cost-effectiveness, has become an ideal choice for display systems in small electric vehicles. This custom segment code COG module features a VA LCD screen, which is manufactured using the COG process and integrated with a driver chip. The LCD screen operates in VA mode and is connected to the main MCU via an I2C interface, using FPC (Flexible Printed Circuit) technology. This type of LCD module can be customized according to specific needs, offering high contrast, wide viewing angles, excellent display quality, a broad operating temperature range, low power consumption, a lightweight design, and stable performance.
COG Segment LCD (Chip-on-Glass Segment Liquid Crystal Display) is a liquid crystal display technology where the driver chip (IC) is directly bonded onto the glass substrate. It features high integration, slim design, low power consumption, and low cost.
This product is a 12232 LCD dot matrix display capable of rendering graphics at a resolution of 122 columns × 32 rows. The screen employs an STN yellow-green mode LED-backlit LCD, which presents black characters on a yellow-green background, delivering high contrast and wide viewing angles. The module includes an integrated driver chip and is manufactured using COB (Chip-on-Board) technology. It connects to the main control MCU via an 8-bit parallel LCD interface, enabling the display of various images and text.
