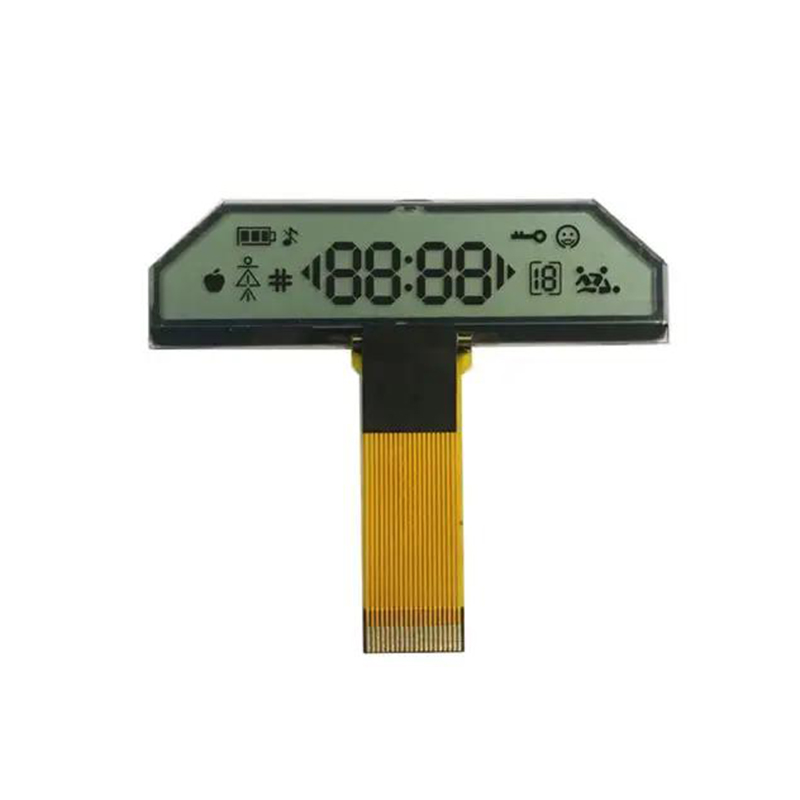

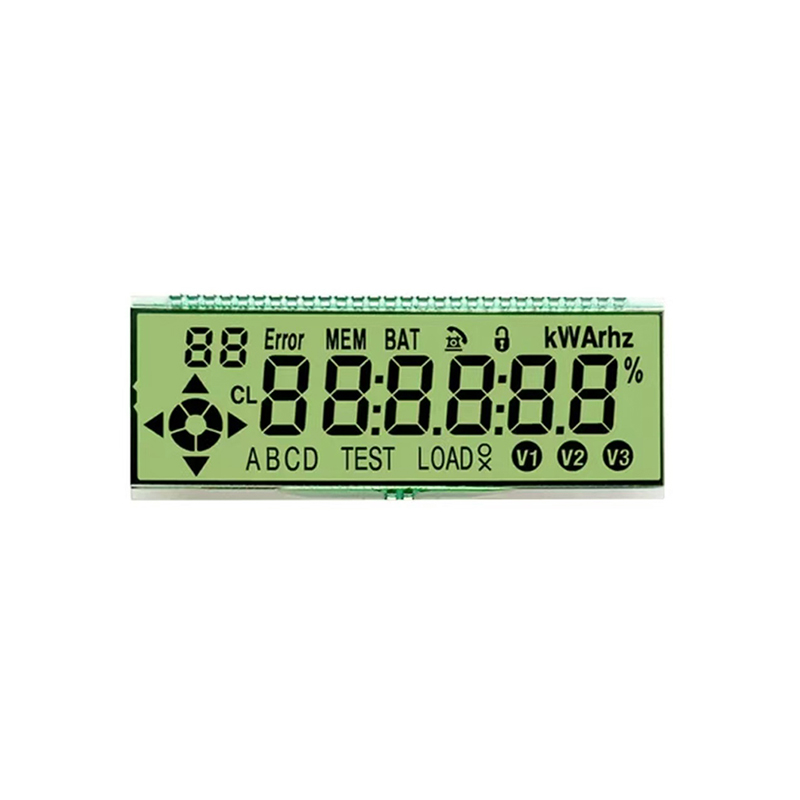

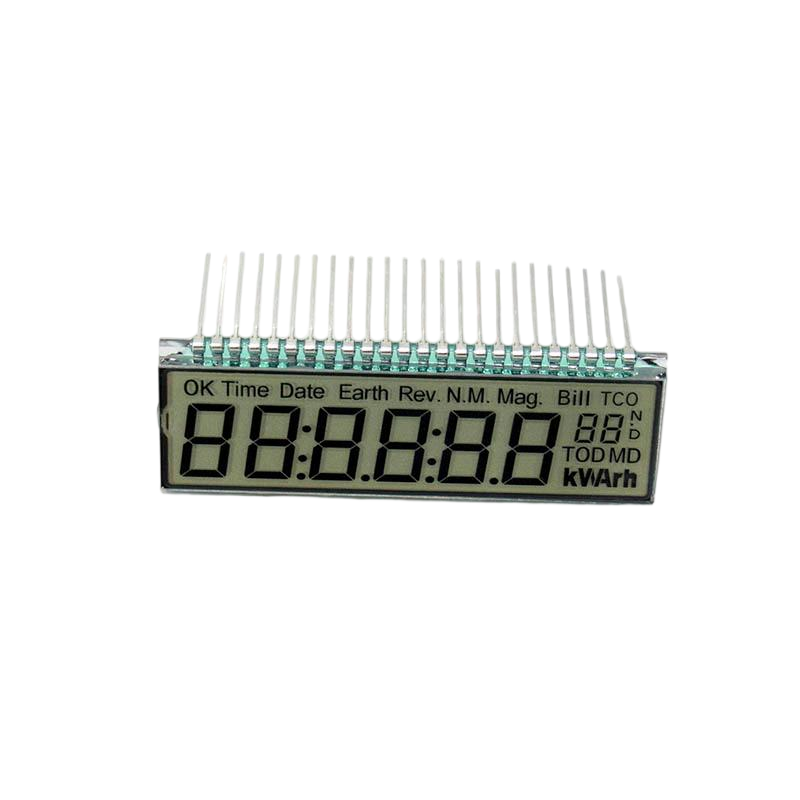

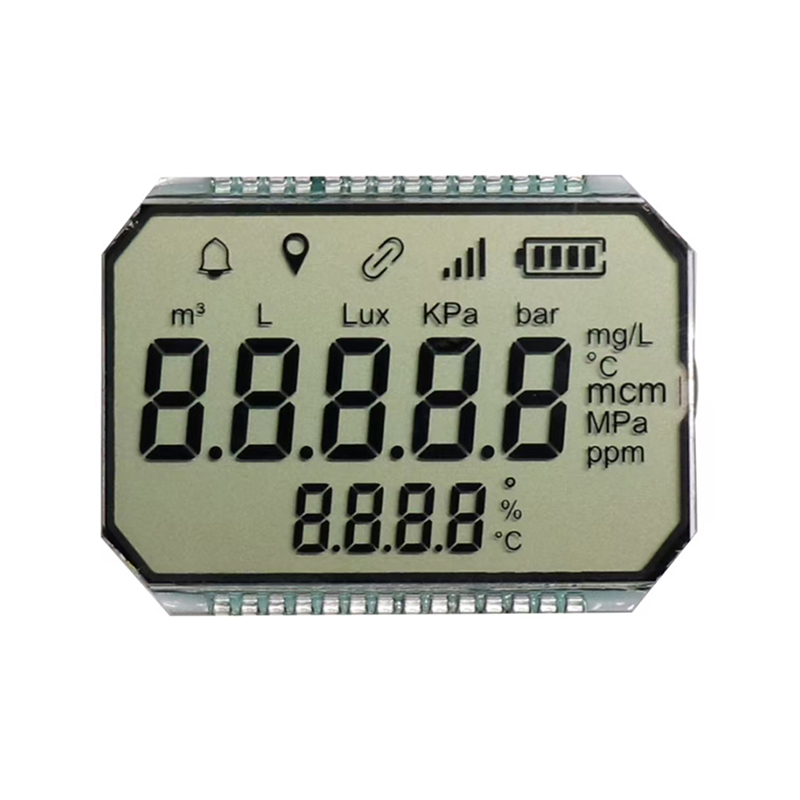

Reflective LCD is a liquid crystal display that utilizes ambient light for illumination. Its core feature is the absence of a backlight, as it reflects ambient light to present images. It offers advantages such as low power consumption, eye protection, and high visibility under bright light, making it widely used in many specific application scenarios.
Reflective LCD uses reflected ambient light to illuminate the screen and meet display requirements. Key features include: low power consumption (no need for a backlight, ideal for long-endurance battery- or solar-powered devices), excellent visibility in bright light (suitable for outdoor environments), and eye protection (simulates the diffuse reflection of paper, reducing blue light radiation, making it suitable for prolonged reading). It can be manufactured in TN, HTN, STN, and FSTN configurations. This type of product does not support use in dark conditions. The products meet parameter requirements in industries such as industrial, medical, automotive, and home appliances. With over 10,000 customized models ranging from EDC001 to EDC26080, all products comply with RoHS 2.0 Directive and REACH regulations.
| Manufacturer | Eastern Display |
| Display mode | FSTN/TN/HTN/STN?LCD |
| Viewing angle | 6/12 O’ CLOCK |
| Operating voltage | 3.0V ---5.0V |
| Viewing angle range | 100-160° |
| Connection | PINS/FPC |
| Driver chip model | / |
| Operating temperature | -40℃-80℃ |
| Storage temperature | -40℃-90℃ |
| Lifetime | 100000?H |
| Multi-color | YES |
| Special shaped | YES |
| Product features | Low-power?LCD |
