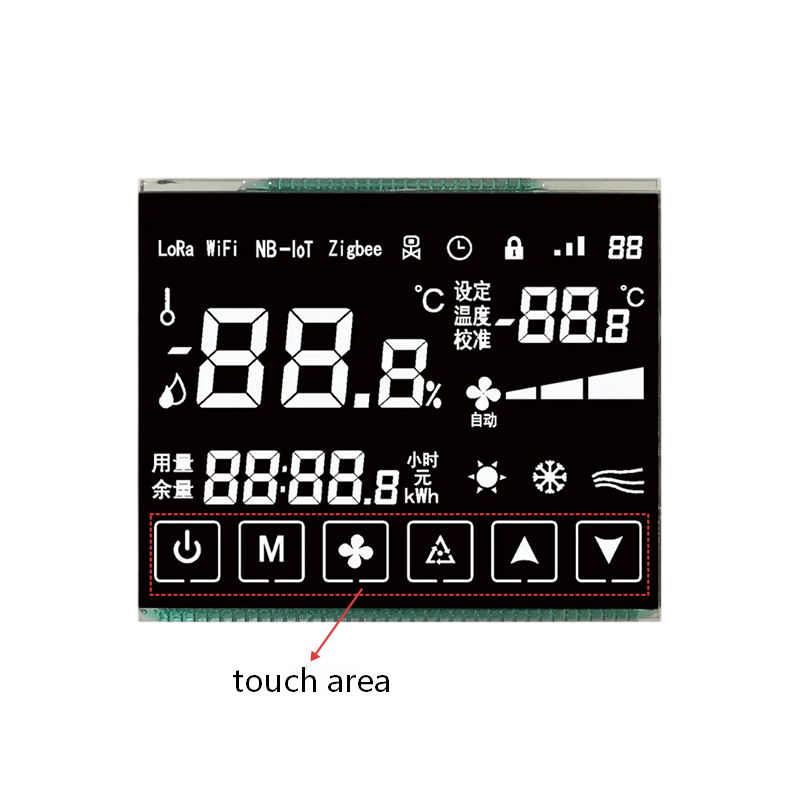

The In-cell Touch Screen LCD builds on traditional segment LCD displays by integrating touch detection components directly with the display unit, replacing conventional physical buttons with responsive touch operation for a more direct and fluid human-machine interaction experience. In this product, touch electrodes are fabricated directly inside the LCD, eliminating the need for additional lamination of a touch film.
The In-cell Touch Screen LCD preserves the advantages of segment displays while effectively increasing the visible display area. It offers flexible and precise touch interaction, supporting single-touch or multi-touch functionality (depending on design), and is widely used in smart home control panels, medical device interfaces, industrial instruments, and consumer electronics. By integrating projected capacitive touch electrodes directly inside the LCD, it eliminates the need for additional touch film lamination.This integrated solution not only streamlines the manufacturing process and reduces costs but also fundamentally removes potential issues associated with external touch films, such as air bubbles, misalignment, and sensitivity degradation, thereby significantly improving touch reliability and long-term durability. Depending on the display's routing space, two solutions are available: single-layer ITO (In-cell Touch Screen LCD) and double-layer ITO (On-cell Touch Screen LCD). For both solutions, the touch layer and display layer form a single integrated structure. This integrated screen construction optimizes light transmittance and clarity, delivering excellent visibility even in strong light or harsh environments. Other performance characteristics are fully consistent with standard LCDs; they can pass rigorous environmental testing and meet the parameter requirements for industrial, medical, automotive, and home appliance applications. All products comply with the RoHS 2.0 directive and REACH regulations.
| Manufacturer | Eastern Display |
| Display mode | VA /TN/HTN/STN?LCD |
| Viewing angle | 6/12 O’ CLOCK |
| Operating voltage | 3.0V ---5.0V |
| Viewing angle range | 120-180° |
| Connection | FPC/PINS |
| Driver chip model | / |
| Backlight type/color | / |
| Operating temperature | -40℃-80℃ |
| Storage temperature | -40℃-85℃ |
| Lifetime | 100000?H |
| Multi-color | YES |
| Special shaped | YES |
| Product features | In-cell?touch screen/On-cell Touch Screen |
