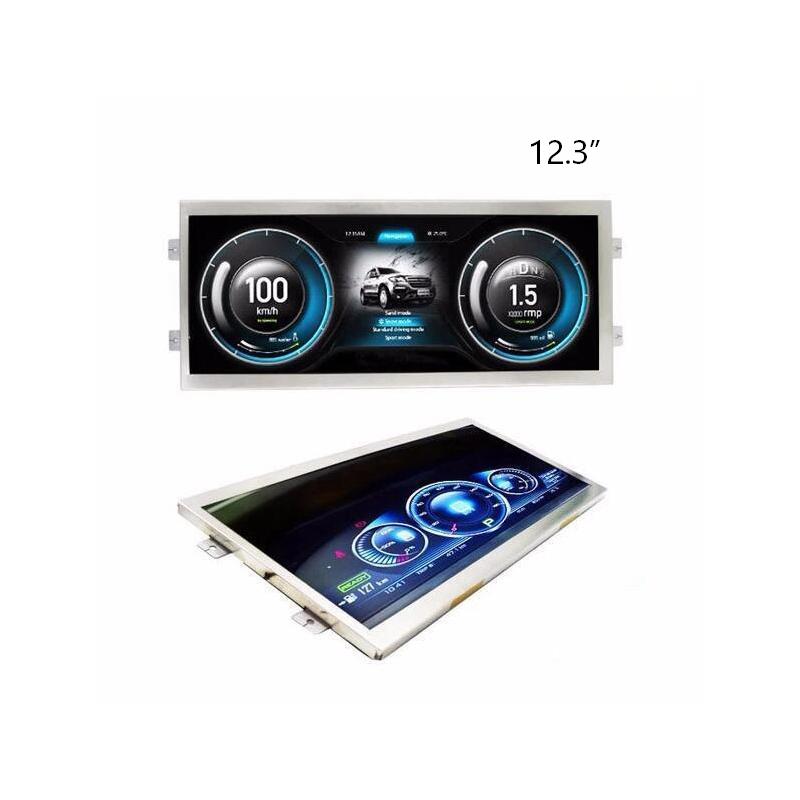

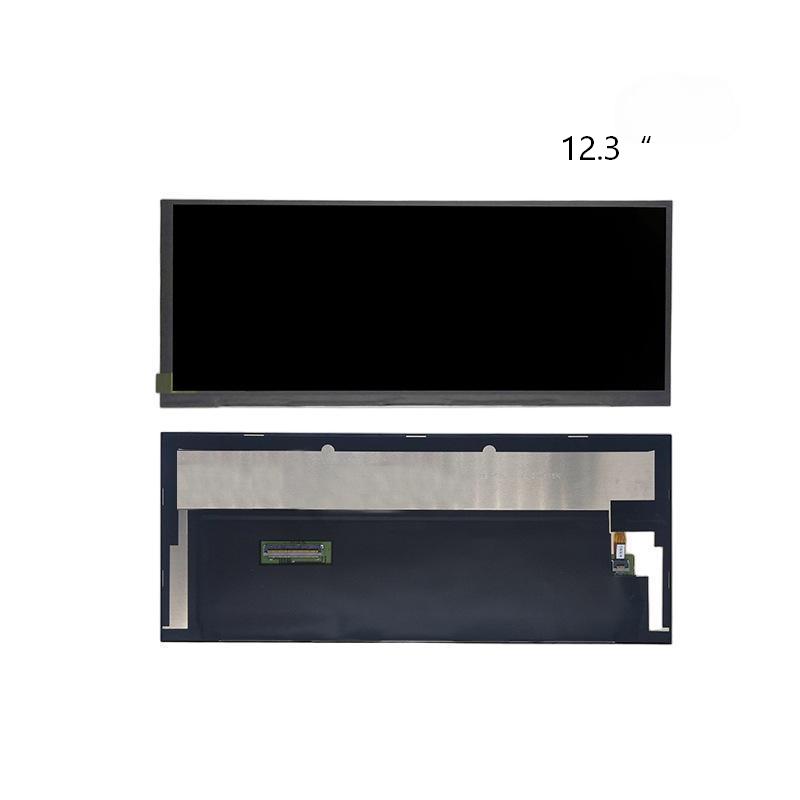

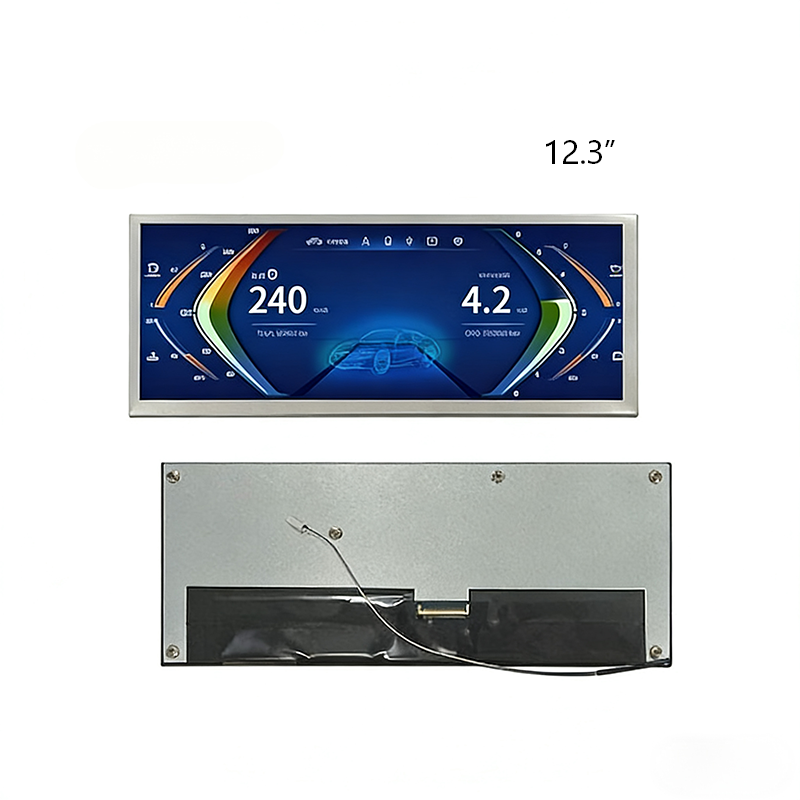

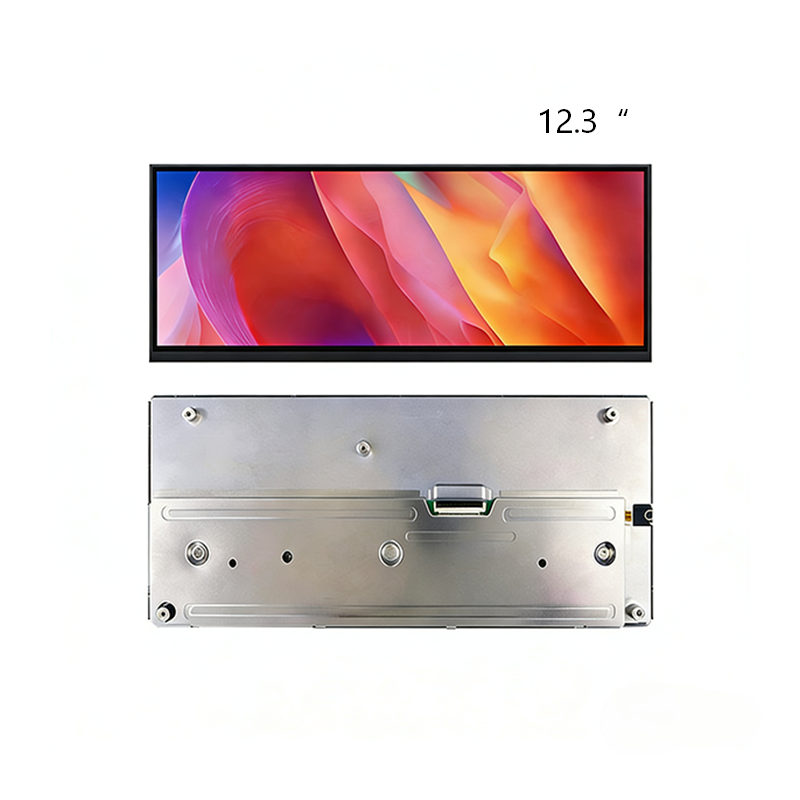

The 12.3-inch TFT display is a dedicated solution designed for dashboard applications, delivering a safer and clearer information interaction experience for drivers. With a high resolution of 1920×720, it provides sharp and detailed visuals that make driving data easy to read at a glance. The 1000 cd/m2 high-brightness design ensures that critical information remains clearly visible whether under direct sunlight or during rapid light transitions such as entering and exiting tunnels, effectively enhancing driving safety.
The product strictly adheres to automotive-grade standards, featuring wide-temperature operation and excellent electromagnetic interference resistance to ensure long-term system reliability. Equipped with a standard LVDS interface, it is compatible with mainstream automotive-grade SoC platforms, reducing signal conversion and integration costs. Having passed rigorous environmental tests such as thermal shock and high-temperature/high-humidity exposure, this display is ready for direct application in new energy vehicles, heavy-duty trucks, and construction machinery.
EASTERN DISPLAY ─ Your Global Display Solutions Expert
? Trusted by Multinational Clients
We serve clients across 20+ countries including China, Germany, the USA, and Poland, having delivered 1,000+ customized TFT display solutions.
? Stringent Environmental Standards
All products comply with RoHS/REACH certifications.
? Precise Adaptation Capability
We offer a full-size range from 2.0" to 15.6", with resolutions selectable from 240×320 up to 1920×1080.
? Customization Services Available
We provide tailored solutions including:
1,Backlight brightness
2,Cover glass thickness and shape customization
3,Cover glass treatments: AR/AG/AF coating & tempering
4,OCA full lamination
5,TFT metal enclosures
6,Optional RTP/CTP (Resistive/Capacitive Touch Panel)
7,Optional IP65 protection rating
| Manufacturer | Eastern Display |
| Product model | EDT123LSANX-14 |
| Resolution | 1920*720 |
| Interface | LVDS |
| Driver chip | ?/ |
| Connection | FPC |
| Display type | 16.7M color TFT display |
| Viewing angle | Free |
| Operating voltage | 3.3V |
| Backlight type | LED backlight |
| Backlight brightness | 1000cd/m2 |
| Operating temperature | -30-85℃ |
| Storage temperature | -40-90℃ |
| Cover | Customized services such as AF/AG/AR |
| Lifetime | 50000H |
| Manufacturer | Eastern Display |
| Product model | EDT123LSANX-14 |
| Resolution | 1920*720 |
| Interface | LVDS |
| Driver chip | ?/ |
| Connection | FPC |
| Display type | 16.7M color TFT display |
| Viewing angle | Free |
| Operating voltage | 3.3V |
| Backlight type | LED backlight |
| Backlight brightness | 1000cd/m2 |
| Operating temperature | -30-85℃ |
| Storage temperature | -40-90℃ |
| Cover | Customized services such as AF/AG/AR |
| Lifetime | 50000H |
