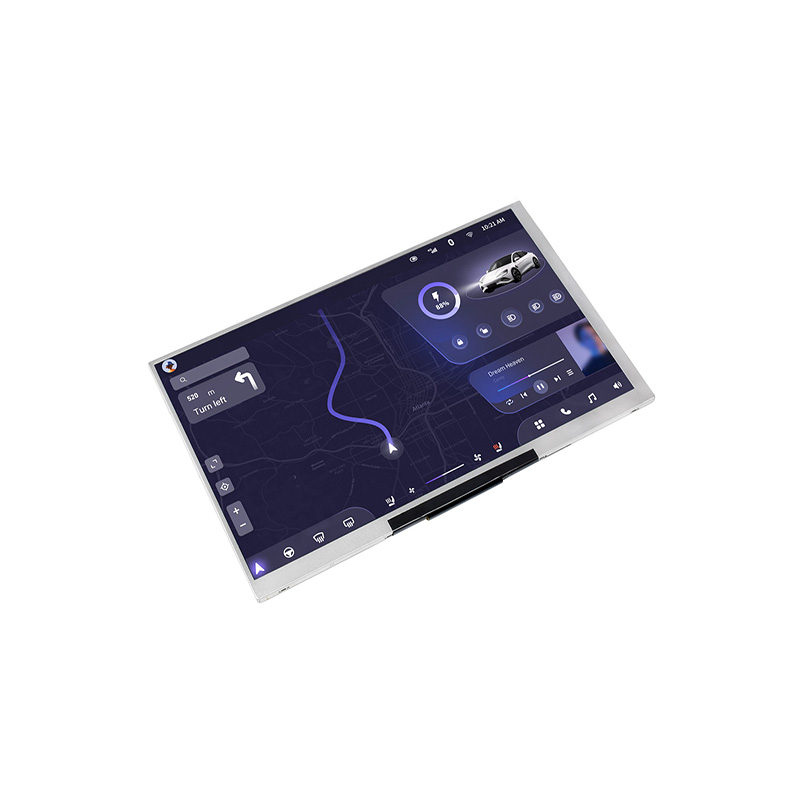

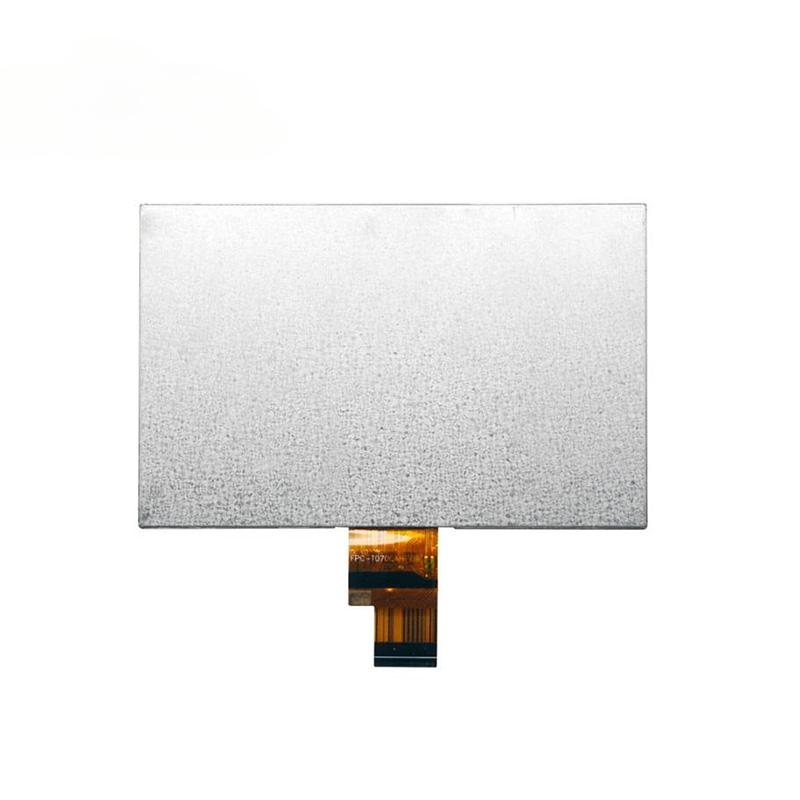

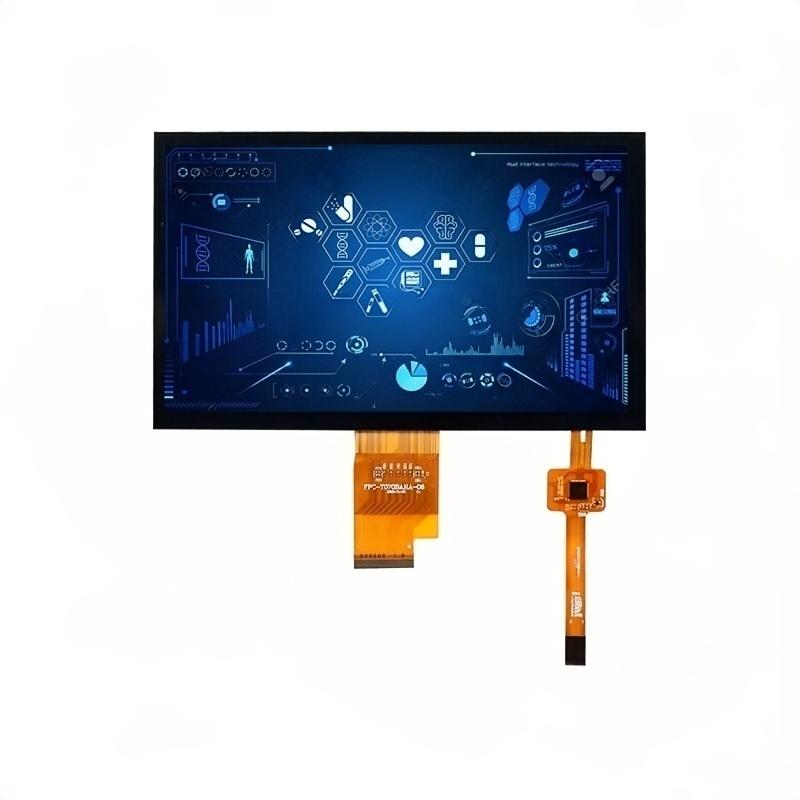

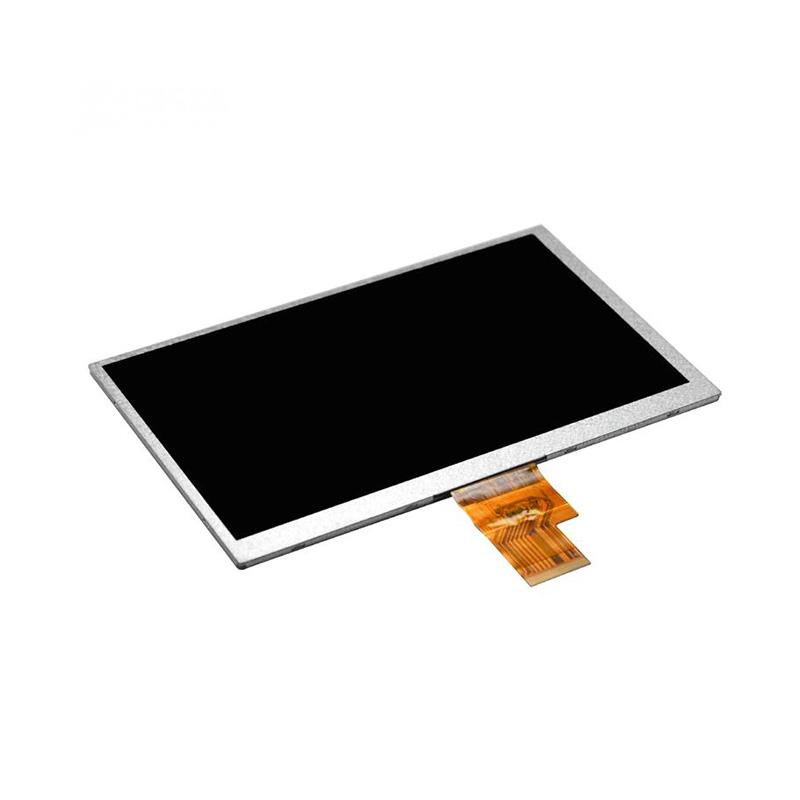

This 7-inch TFT display is designed for the automotive instrument market, fully utilizing automotive-grade LCD panels and backlight materials. With a brightness of up to 1000 cd/m2, it ensures clear visibility even under direct strong light. It operates reliably across a wide temperature range from -30°C to 85°C and maintains stable performance in complex electromagnetic environments, offering excellent anti-interference capability. It is widely used in the pre-installed instrument market for vehicles such as buses, heavy-duty trucks, and new energy passenger cars.
| Manufacturer | EASTERN DISPLAY |
| Product model | EDT070HSANX-364 |
| Resolution | 1024*600 |
| Interface | 24 bit RGB interface |
| Driver chip | ILI6150+ILI5120 |
| Connection | FPC |
| Display type | 16.7M color TFT display |
| Viewing angle | Free |
| Operating voltage | 3.3V |
| Backlight type | LED?backlight |
| Backlight brightness | 1000cd/m2 |
| Operating temperature | -30-85℃ |
| Storage temperature | -40-90℃ |
| Cover | Customized services such as AF/AG/AR. |
| Lifetime | 50000H |
