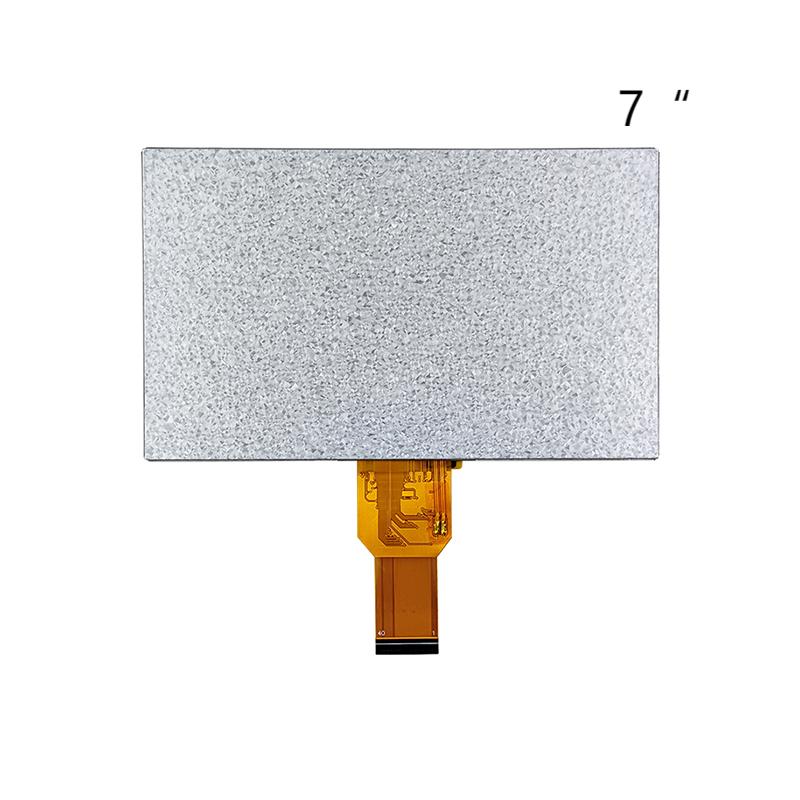

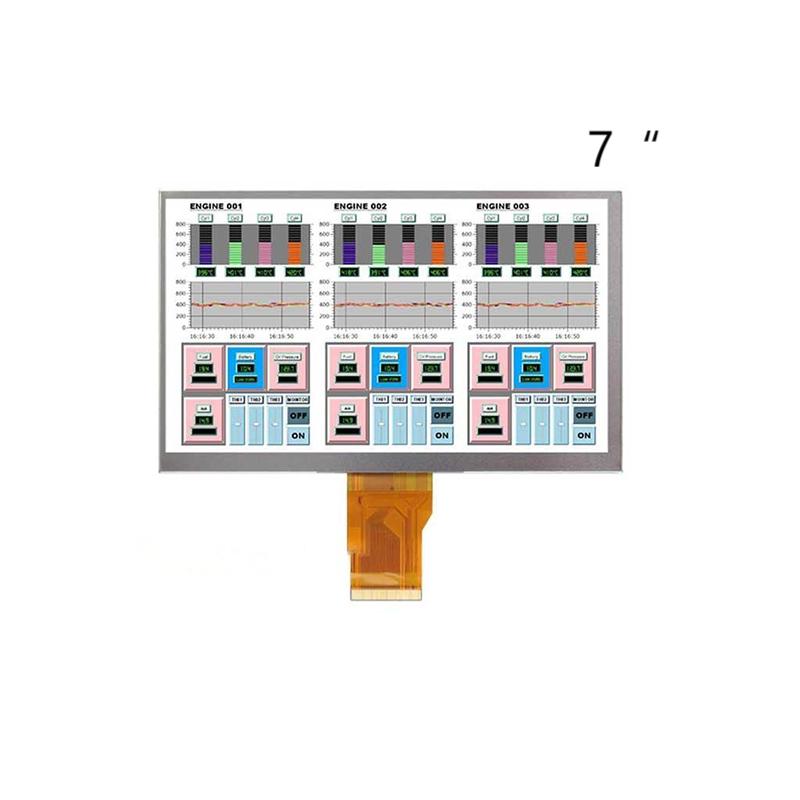

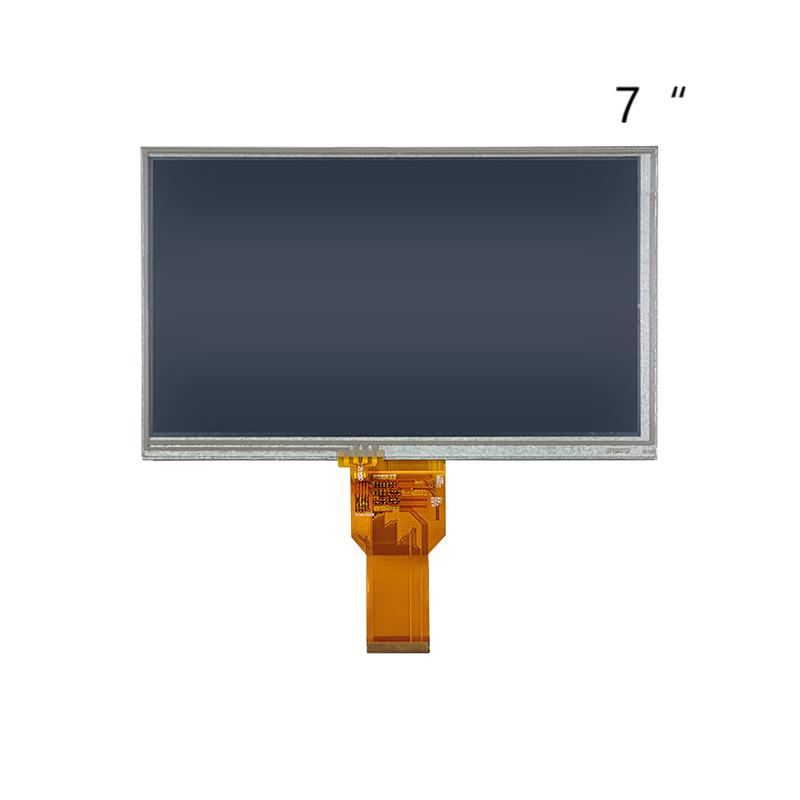

Featuring 800×480 resolution and a high brightness of 1000 cd/m2, this 7-inch TFT display ensures clear readability even under strong light. It is easy to drive and quickly adaptable to mainstream industrial control platforms. With an operating temperature range of -30℃ to 85℃ and strong electromagnetic interference immunity, it is suitable for demanding environments such as outdoor instruments, factory automation equipment, construction machinery, and test instruments.
EASTERN DISPLAY ─ Your Global Display Solutions Expert
??Precise Adaptability
Full size coverage from 0.96" to 15.6", with resolution options ranging from 80×160 to 1920×1200. We offer over 200 standard models to choose from.
???Customization Services Available
We provide the following customized services:
1,Backlight brightness
2,Cover glass thickness, shape, and material
3,3A surface treatment (AF/AR/AG)
4,OCA full lamination
5,Integrated structural housing
6,RTP/CTP customizable
???Trusted by Cross-Border Customers
Serving customers in 20+ countries including China, Germany, the USA, Poland, and Japan, with over 5,000 custom TFT display solutions delivered.
???Strict Environmental Compliance
All products are RoHS and REACH certified.
| Manufacturer | EASTERN DISPLAY |
| Product model | EDT070HSANX-398 |
| Resolution | 800*480 |
| Interface | 24 bit RGB interface |
| Driver chip | ILI6137+ILI5960 |
| Connection | FPC |
| Display type | 16.7M color TFT display |
| Viewing angle | 6 O`clock |
| Operating voltage | 3.3V |
| Backlight type | LED?backlight |
| Backlight brightness | 1000cd/m2 |
| Operating temperature | -30-85℃ |
| Storage temperature | -40-90℃ |
| Cover | Customized services such as AF/AG/AR. |
| Lifetime | 50000H |
