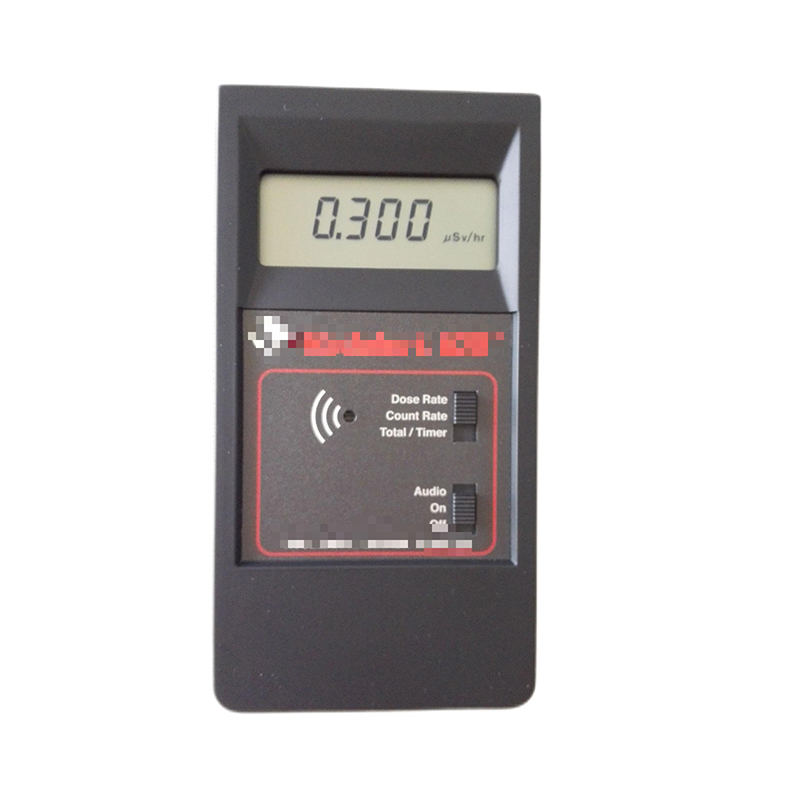

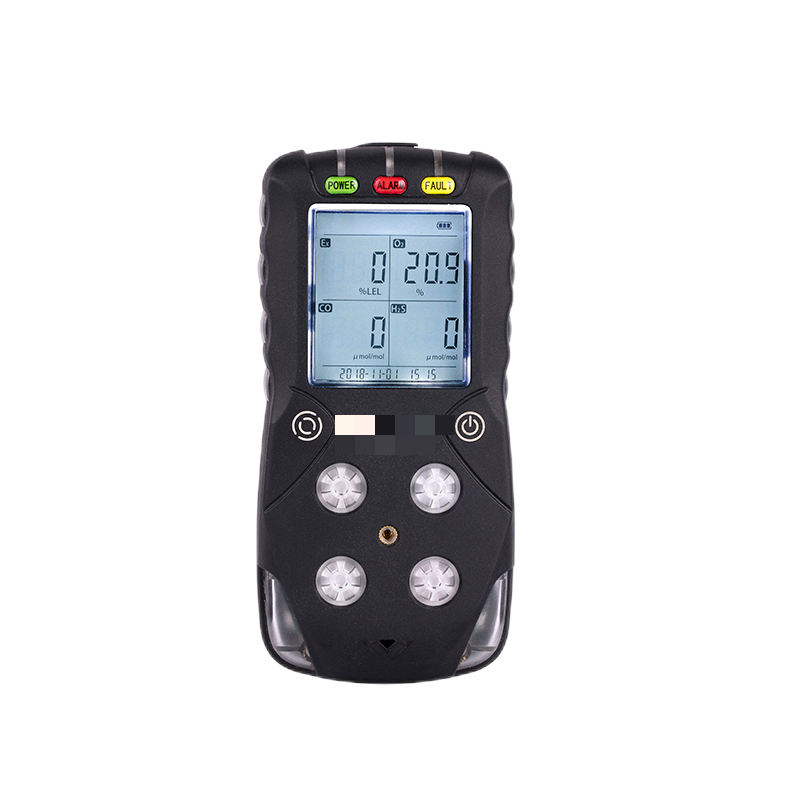

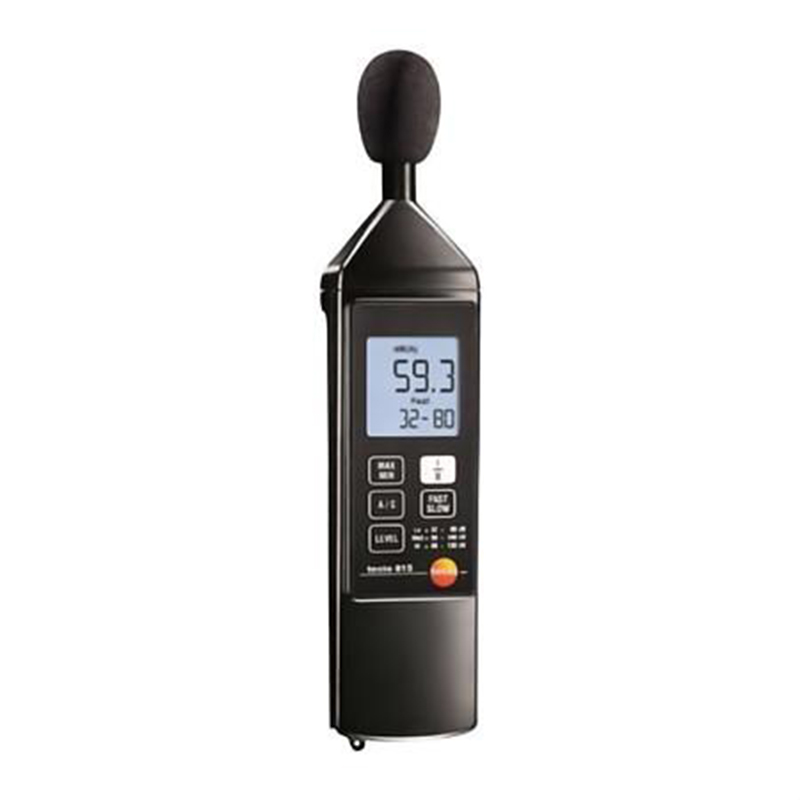

Product description: TN LCD is widely used in industrial instruments, industrial control equipment and communication equipment such as flow meters, microcomputer protection devices, recorders, energy meters, handheld meters, digital display meters, measuring meters, test meters, etc. TN LCD is used to display the measurement results, parameters, status information of instruments and meters, and the operating status, alarm information, and operation interface of industrial control equipment and communication equipment. EASTERN DISPLAY provides thousands of custom segment displays for customers in North America, Europe, East Asia, etc. The number of TN LCDs supplied each year exceeds 10...
TN LCD is widely used in industrial instruments, industrial control equipment and communication equipment such as flow meters, microcomputer protection devices, recorders, energy meters, handheld meters, digital display meters, measuring meters, test meters, etc. TN LCD is used to display the measurement results, parameters, status information of instruments and meters, and the operating status, alarm information, and operation interface of industrial control equipment and communication equipment.
EASTERN DISPLAY provides thousands of custom segment displays for customers in North America, Europe, East Asia, etc. The number of TN LCDs supplied each year exceeds 10 million. Based on many years of product development and production experience in serving customers of industrial instruments, industrial control equipment and communication equipment, it has rich technical accumulation in product design, core parameters and customer concerns. It can provide customers with high-quality, cost-effective LCD display screens in a continuous and stable manner.
| Manufacturer | EASTERN DISPLAY |
| Display type | TN ?LCD |
| Viewing angle | 6/12 0’?CLOCK ?(custom made) |
| Operating voltage | 3.0V ---5.0V (custom made) |
| Backlight type | (custom made) |
| Backlight color | (custom made) |
| Operating temperature | -40℃-70℃(custom made) |
| Storage temperature | -40℃-80℃(custom made) |
| Display life | 100,000-200,000 hours (custom made) |
| ROHS standard | YES |
| REACH standard | YES |
| Applicable fields and scenarios | Digital display instruments, measuring instruments, test instruments, etc. |
| Product features | LCD display low price |
| Keywords：STN LCD/LED segment display/High contrast LCD/custom LCD display/LCD screen/small LCD display/LCD display price/Serial LCD/Parallel LCD/Energy meter LCD/Low power LCD | |
