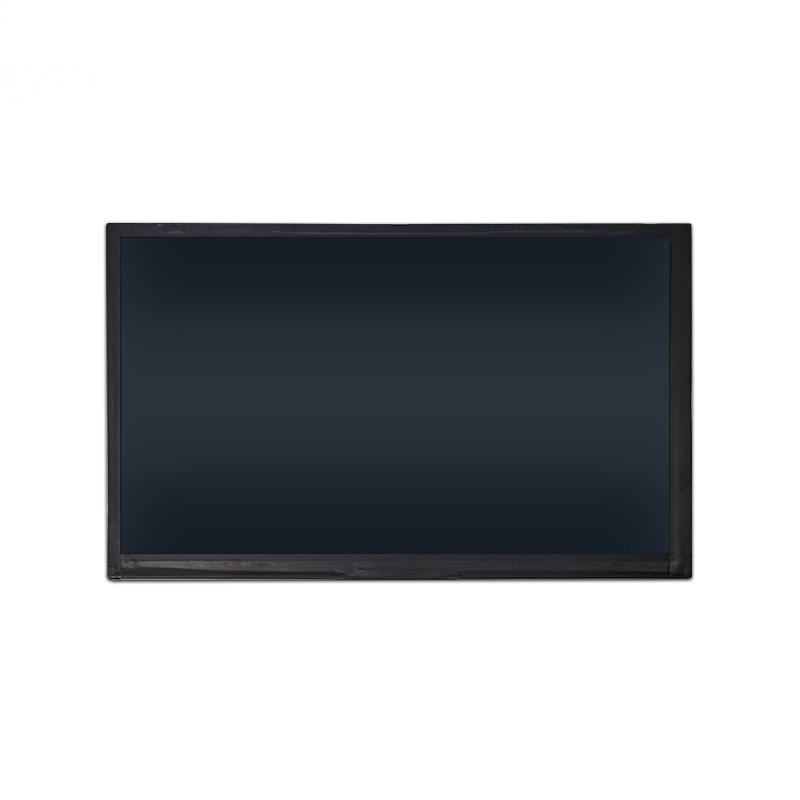

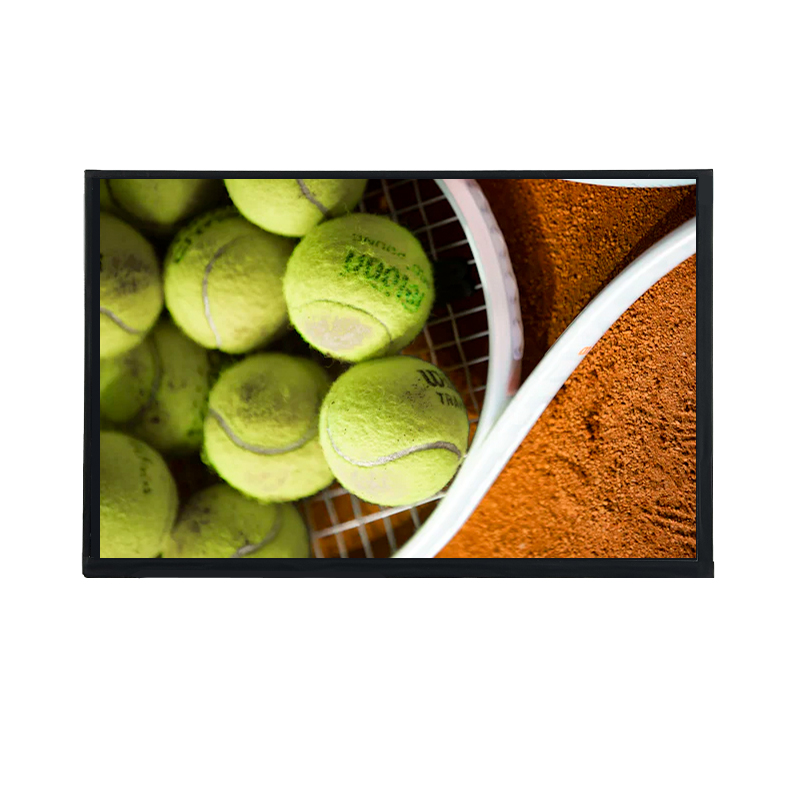

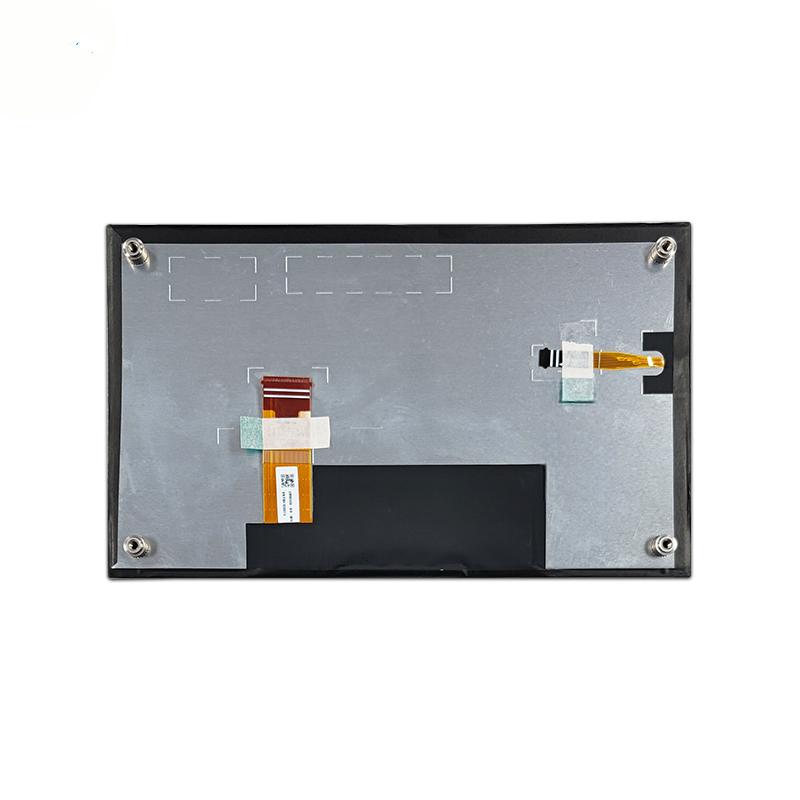

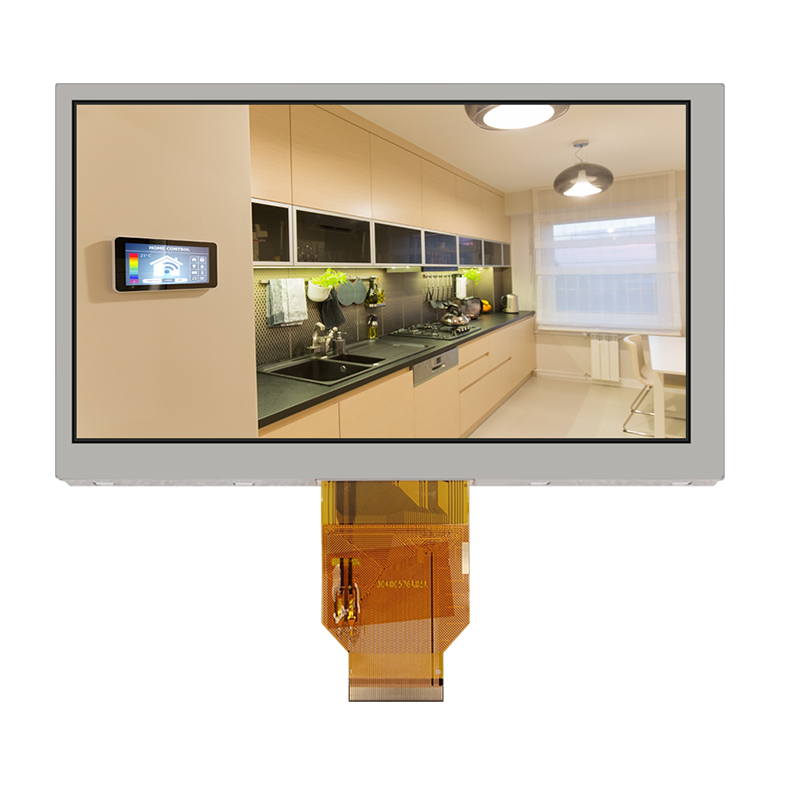

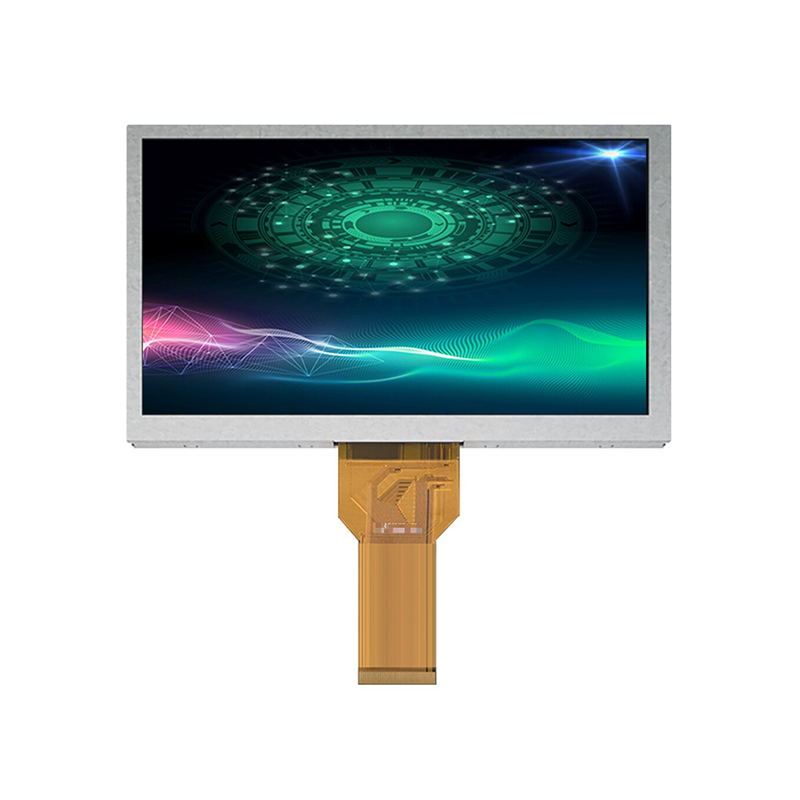

The 8-inch TFT display features a 1280×720 resolution IPS panel and a 1000 cd/m2 high-brightness LED backlight, ensuring clear visibility even in direct sunlight. Engineered to operate reliably across a wide temperature range from -30℃ to 85℃ and maintain stable performance in complex electromagnetic environments, it is ideally suited for demanding applications such as smart EV instrument clusters, medical device control panels, industrial weighing terminals, and analytical instruments.
| Manufacturer | Eastern Display |
| Product model | EDT080DLN-39 |
| Resolution | 1280*720 |
| Interface | LVDS |
| Driver chip | HX8290+HX8695 |
| Connection | FPC |
| Display type | 16.7M color TFT-LCD |
| Viewing angle | Free |
| Operating voltage | 3.3V |
| Backlight type | LED?backlight |
| Backlight brightness | 1000cd/m2 |
| Operating temperature | -30-85℃ |
| Storage temperature | -40-95℃ |
| Cover | customized services such as AF/AG/AR. |
| Lifetime | 50000H |
